Commodore Amiga 500 Plus

A500 Plus A500 Plus

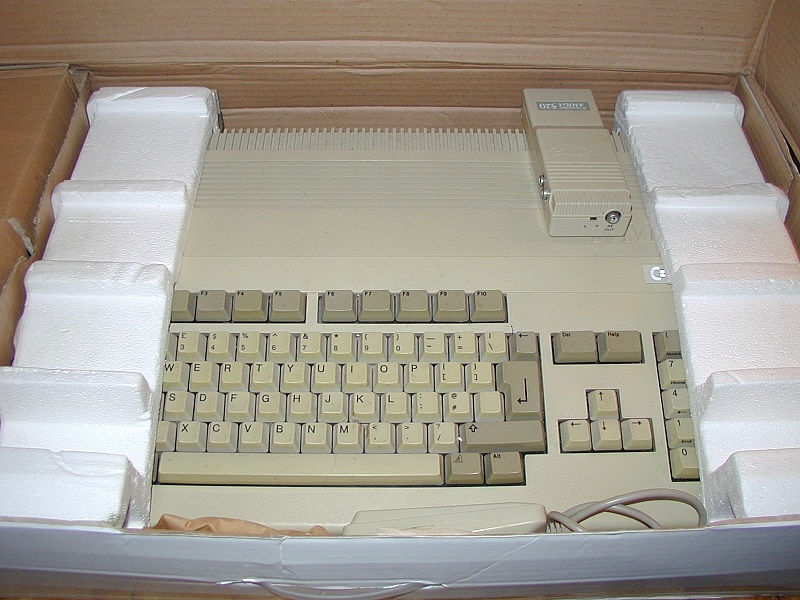

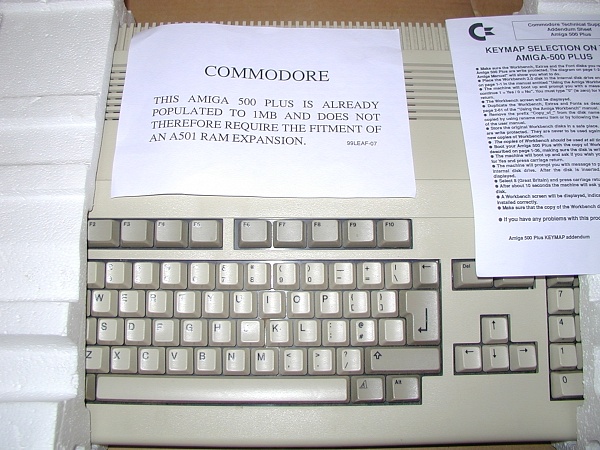

Added the boxed version

A500 Plus A500 Plus A500 Plus A500 Plus

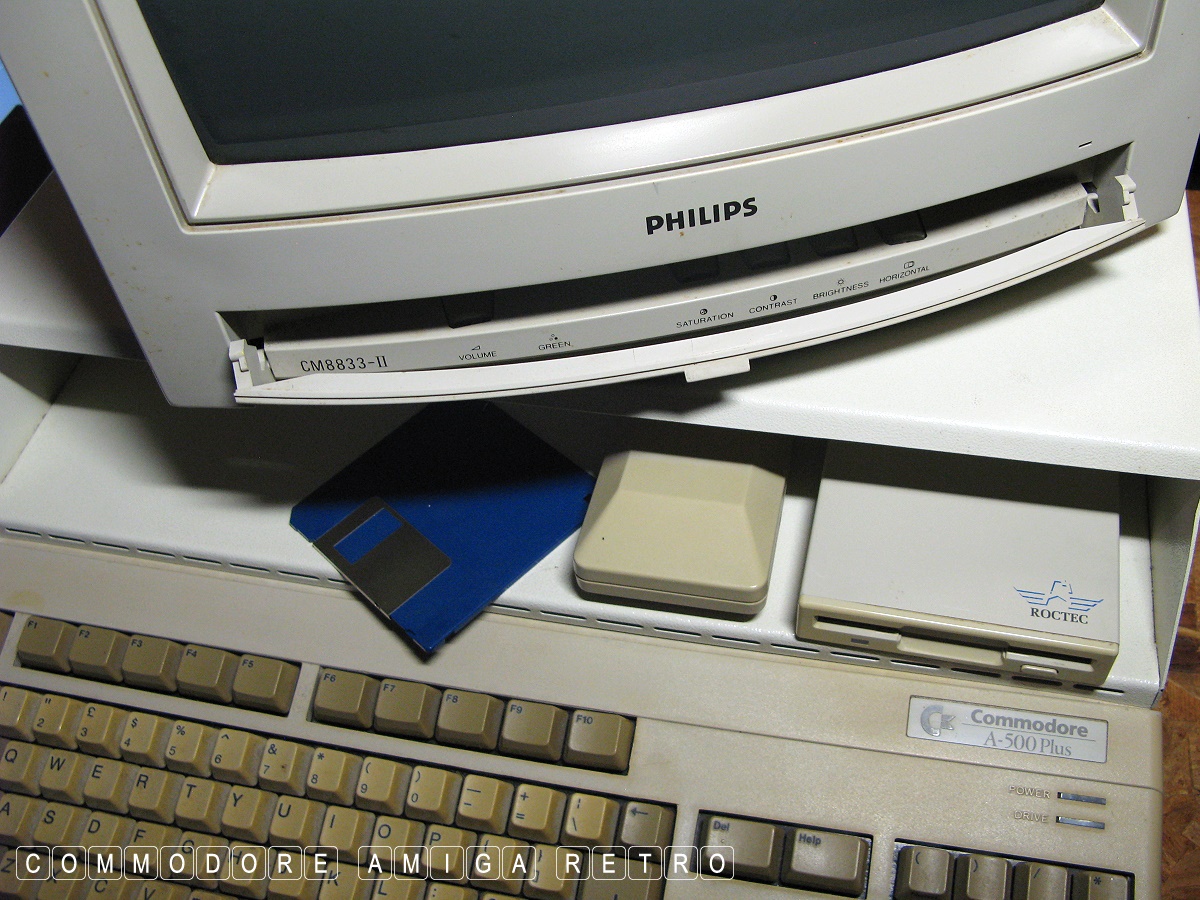

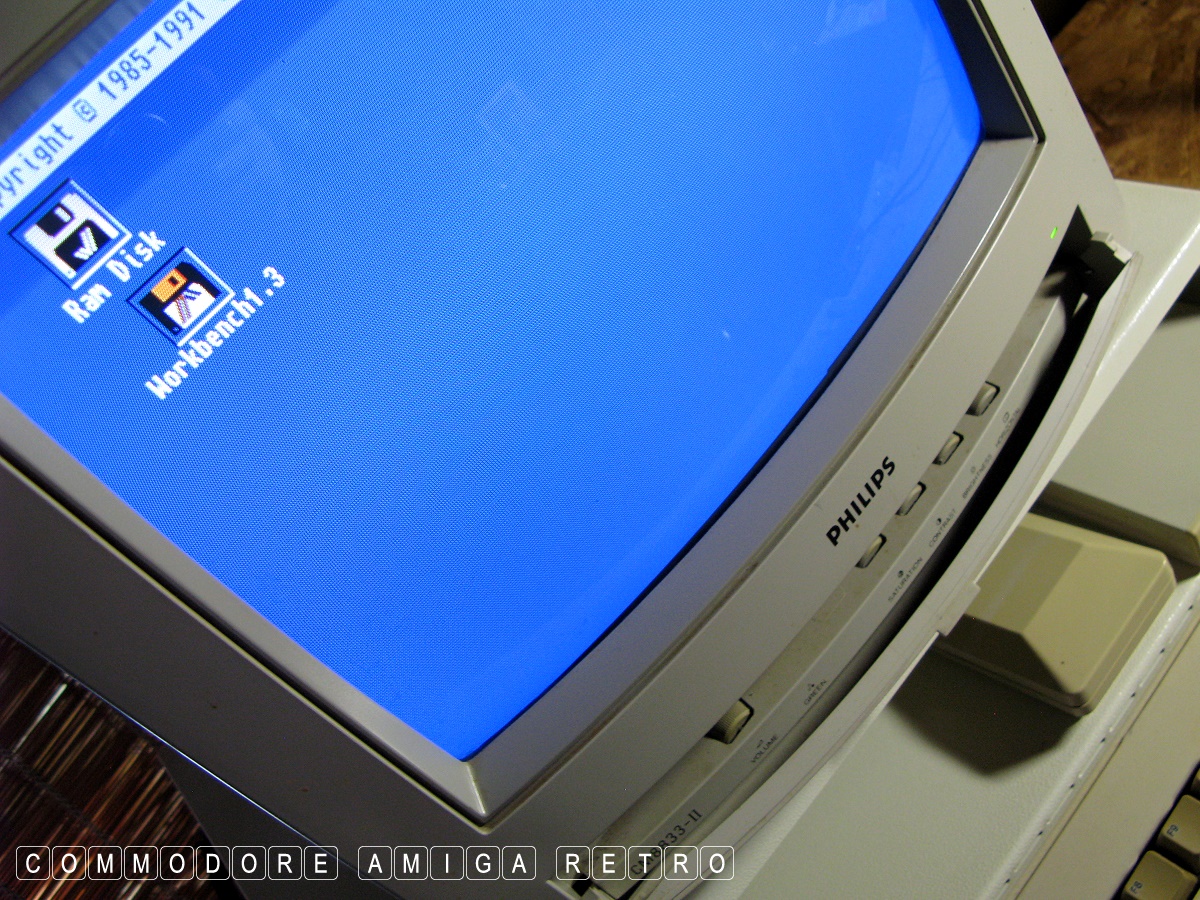

Recent success raising a machine from the dead


Battery Warning

A500+ A500+

If you have an A500+ in store then you probably
have a leaking battery. Best bet is to remove it

A500 Plus A500 Plus A500 Plus A500 Plus

boxes boxes

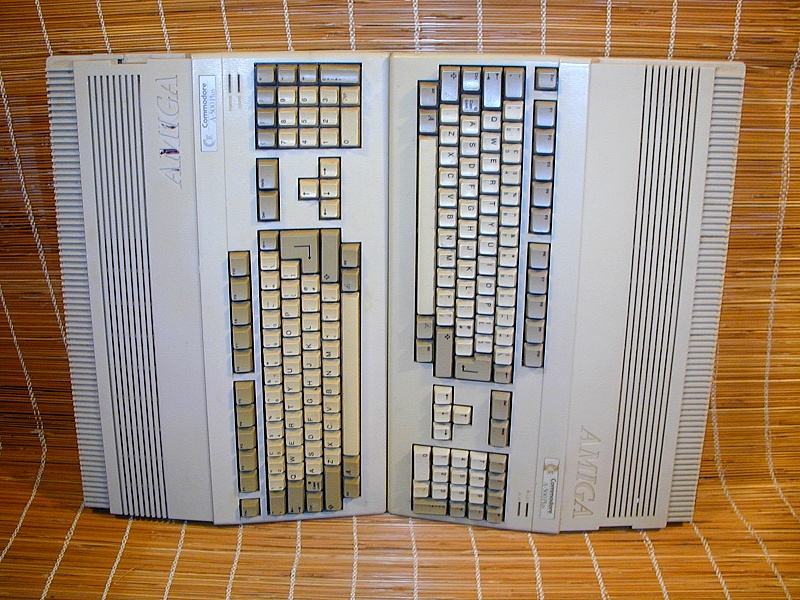

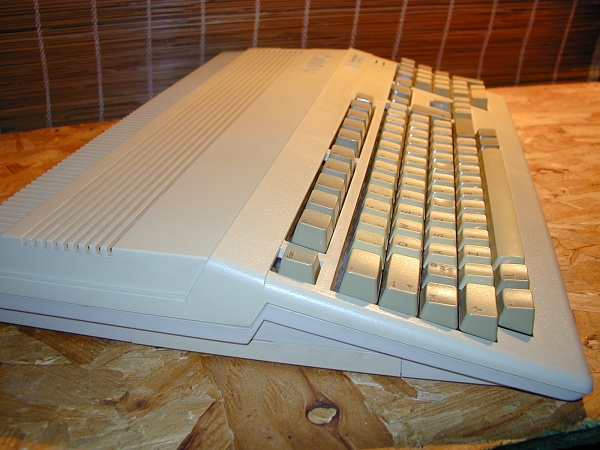

My latest Plus'

A500plus

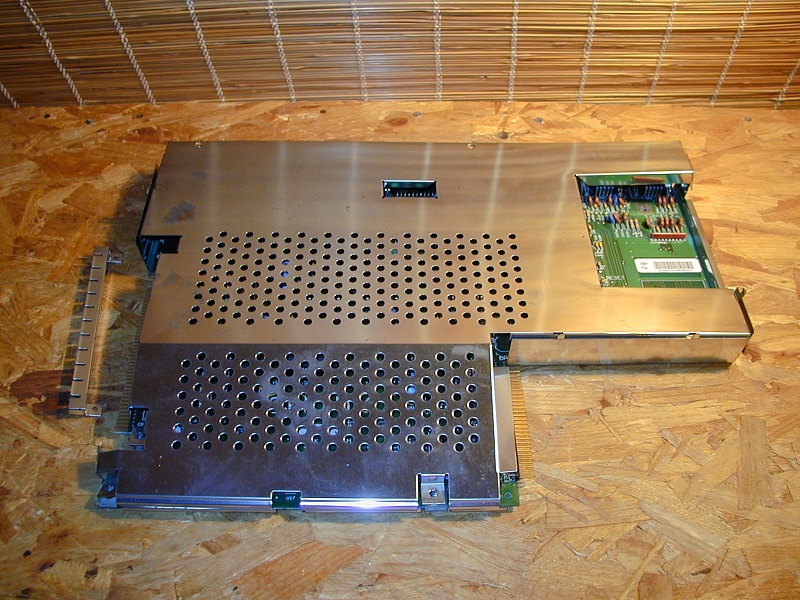

In need of restoration...

A500 Plus Model

CPU Motorola 68000, 16 Bit
Clock Speed 7.16 NTSC; 7.09 PAL MHz
Coprocessor Multi-chip coprocessor system for DMA video
graphics and sound
Memory 1 MB RAM standard, expandable with optional
A501 plus to 2 MB RAM internally; maximum RAM expamsion is 10 MB
ROM 512 KB

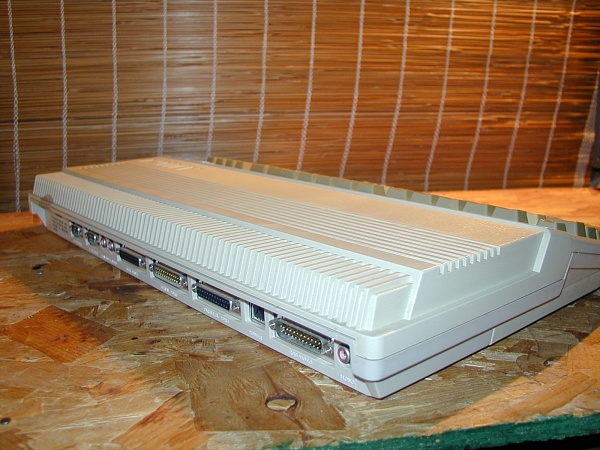

Interfaces External: Keyboard, floppy disk, Mouse/Joystick
Serial [RS232, PC-compatible], Parallel [Centronics PC-compatible
Video [DB23 15 KHz: RGB analog], Stereo Audio
Keyboard Integral 94 keys International
Disk Drives Standard: built-in 3.5 inch floppy drive
(Capacity: 880 KB fromatted)

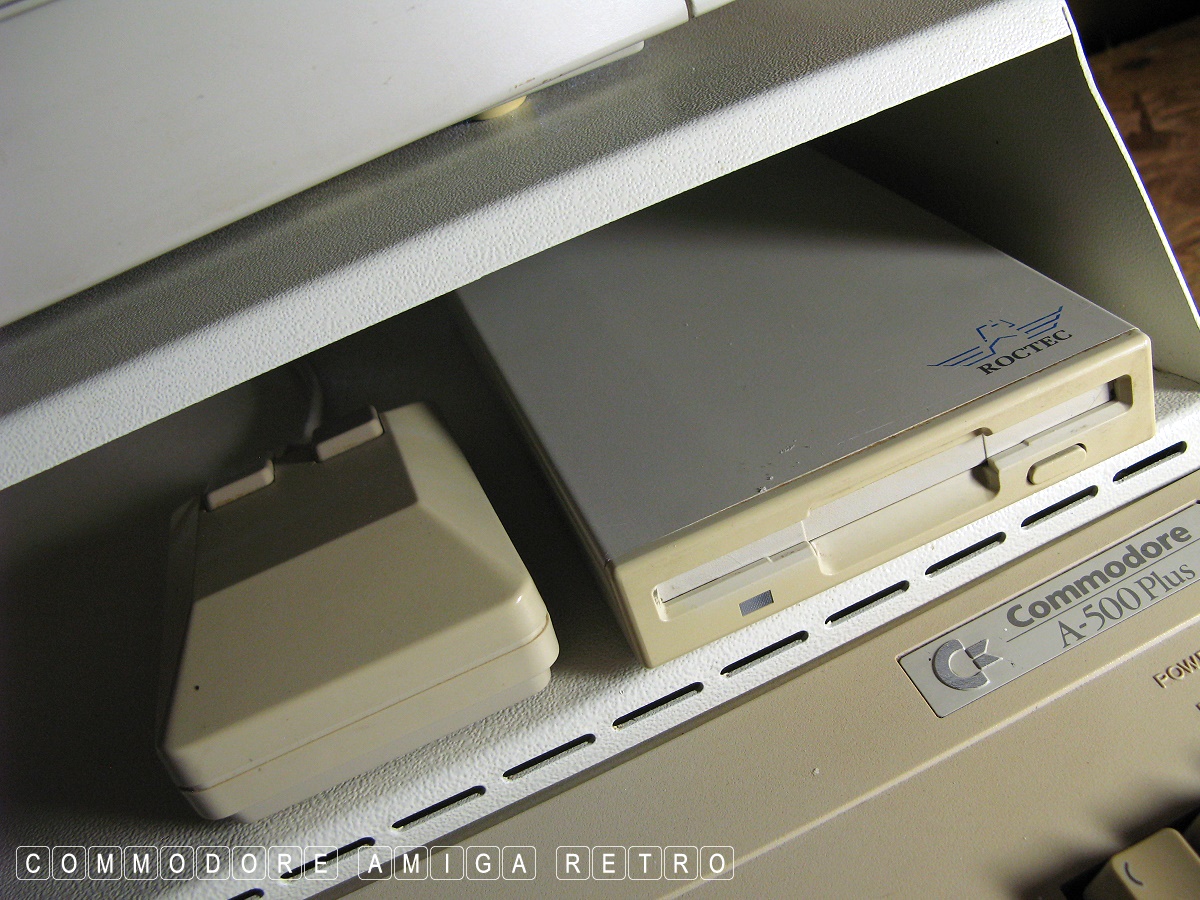

External Disk Drives One optional Amiga-compatible
Video Display Complies with North America: RGB NTSC
International: RGB PAL 4096 Colours
Environmental Specification Operating 0-45 degC
Sound 4 Independant sound channels configured to
two stereo channels
Text-to-speech conversion Built-in.
Clock/Calendar Built battery back-up
with A501 RAM expansion card
System Software Multitasking; includes AmigaDOS
Workbench and various utilities

Power Supply Switching 37.5 watts

68000 Microprocessor

The central processing unit of the A500 Series is a Motorola
68000 microprocessor running at clock speed of 7 megahertz
[MHz]. (Clock speed given in MHz is one measure of how fast
a computer`s microprocessor can perform tasks,)
