6128 - Back from the dead

Got a date with a ghost. I read a post on the Amstrad forums about
cleaning the power switch on the 6128 and my thoughts turned to my
busted Amstrad 6128 which hasn't worked from the day I got the
computer. I have two that work so it really wasn't any great hardship.

So first thing this morning I set myself up and got busy with the
Amstrad 6128. The pictures pick up the story just as I have managed
to work out how to open the power switch

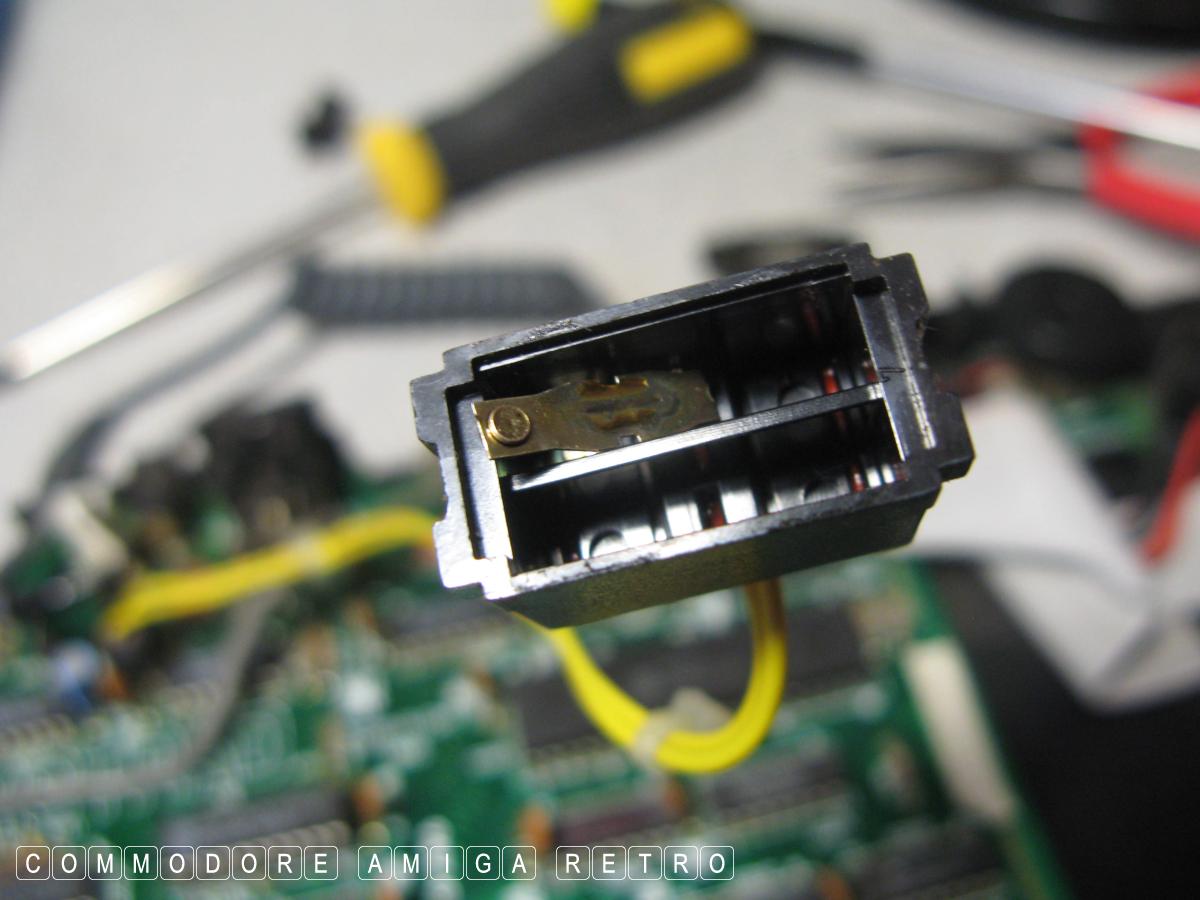

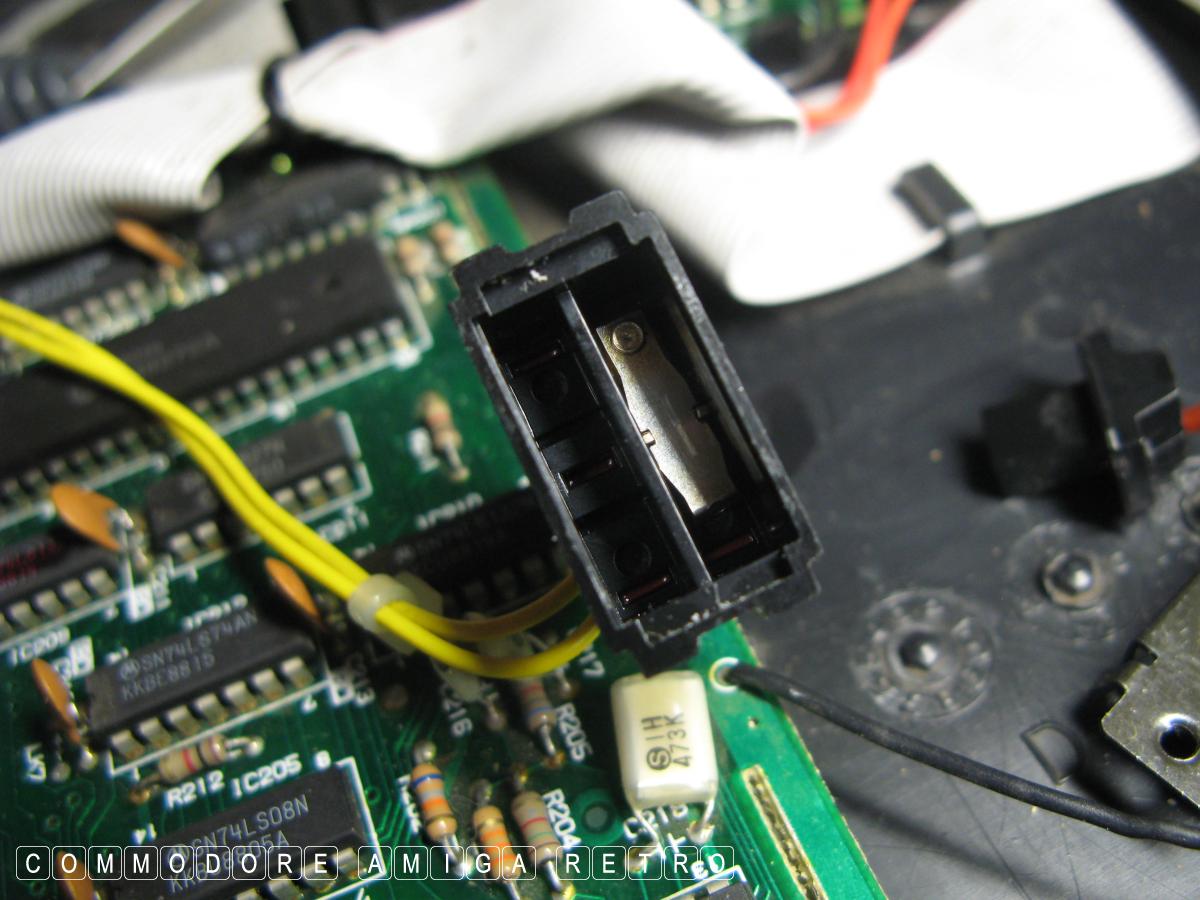

OK.. Not the jaws of a snake, but the
inside of the opened power switch

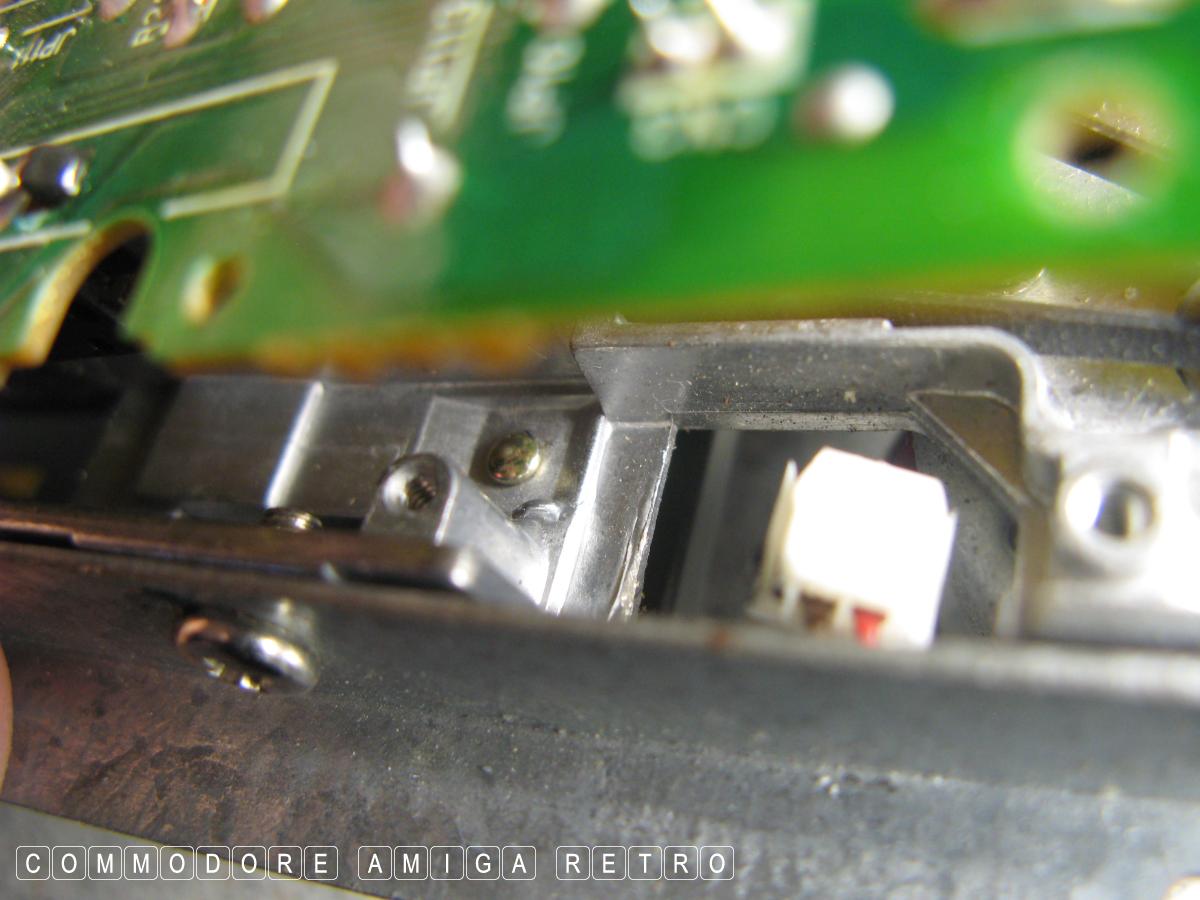

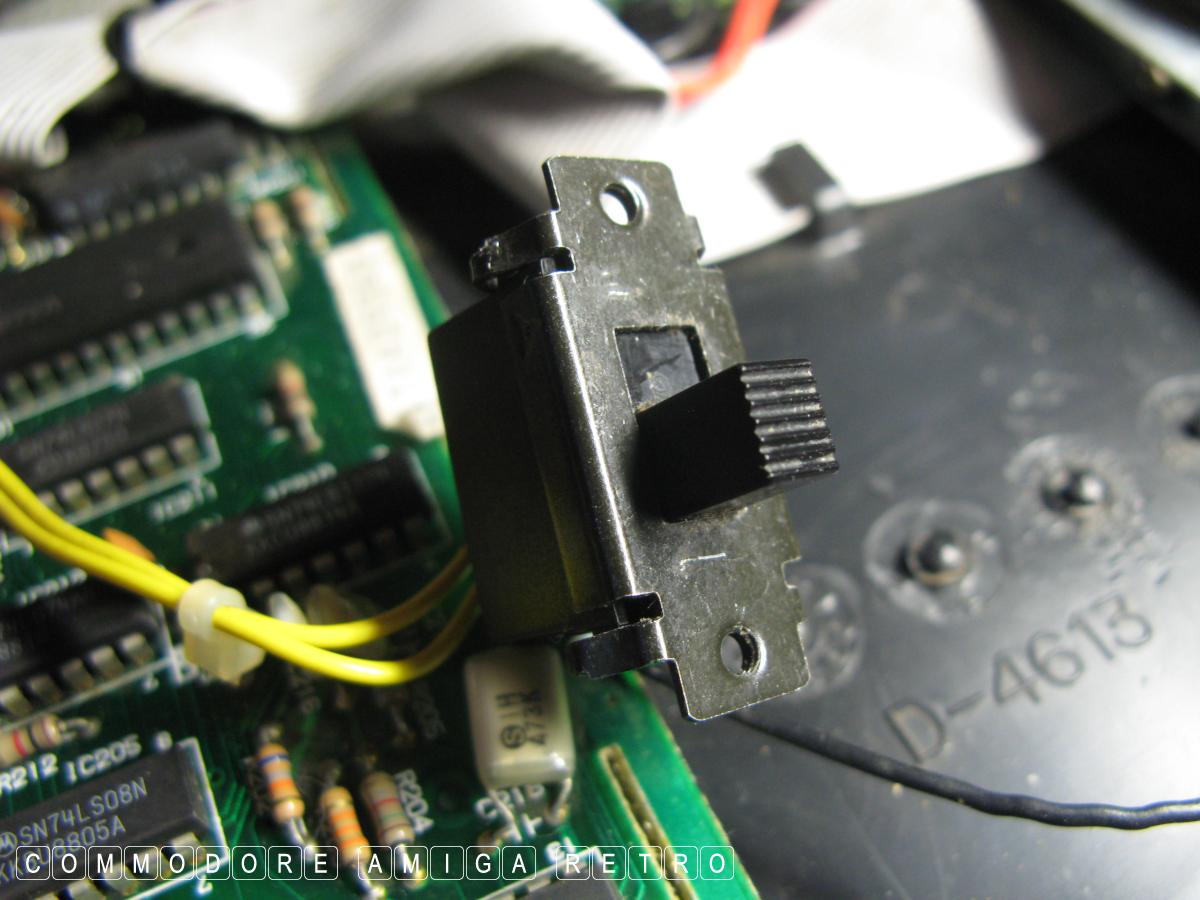

I removed the switch and the small
metal rocker to clean the metal contact

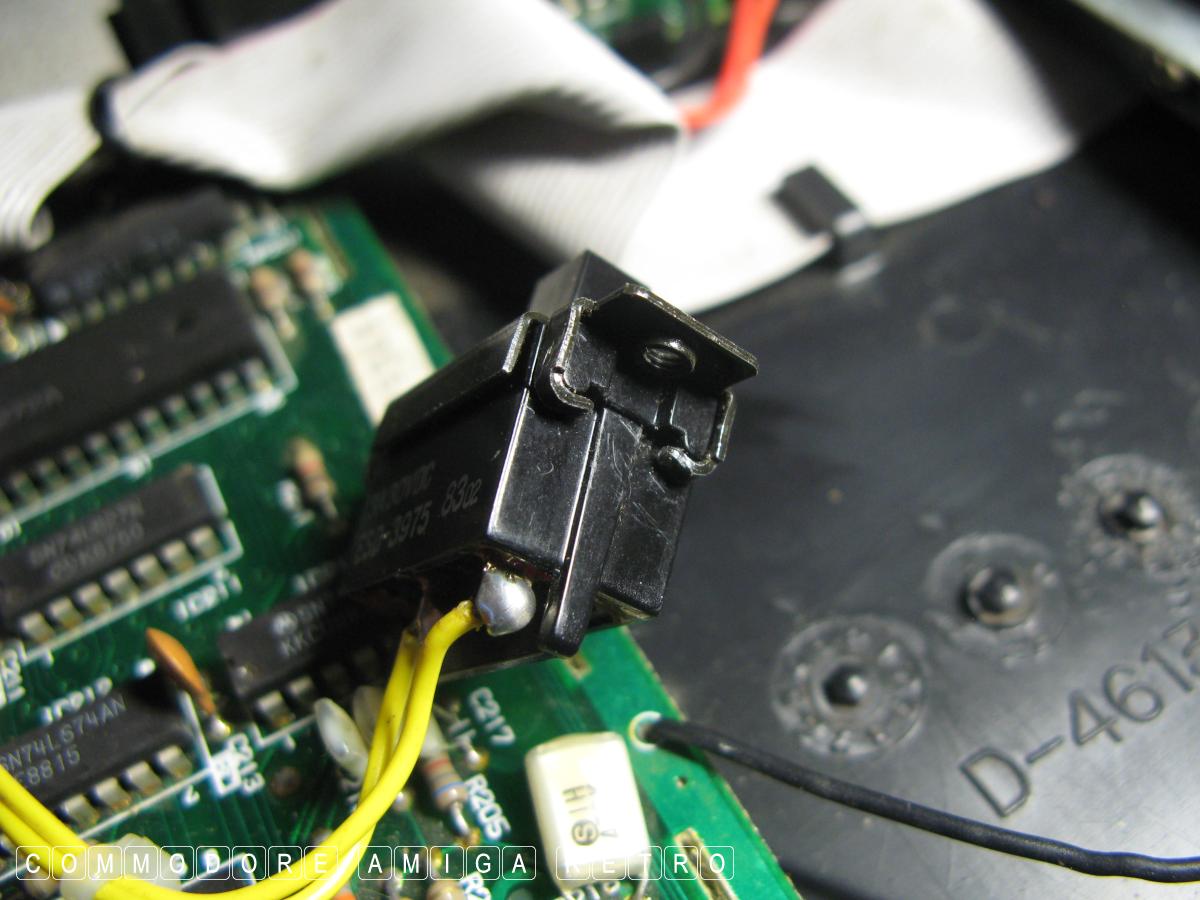

And that is the switch mechanism that
sits on top of the rocking switch

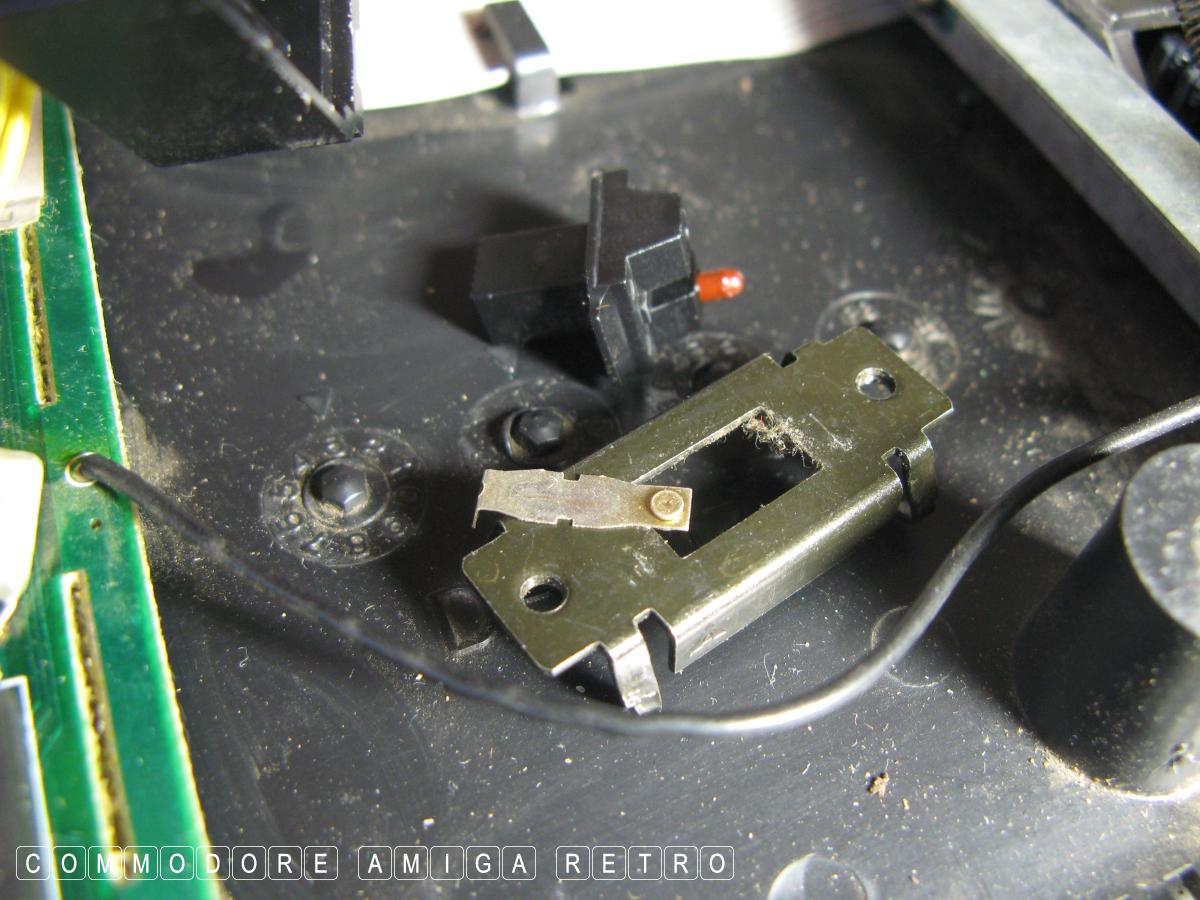

Those are the other components of the
switch which need a good clean

Rocker is now cleaned and placed back

Switch cleaned and reassembled

Note the small clamps that I opened
to the ends of the switch box to open
the unit and get inside

I have now closed the clamps

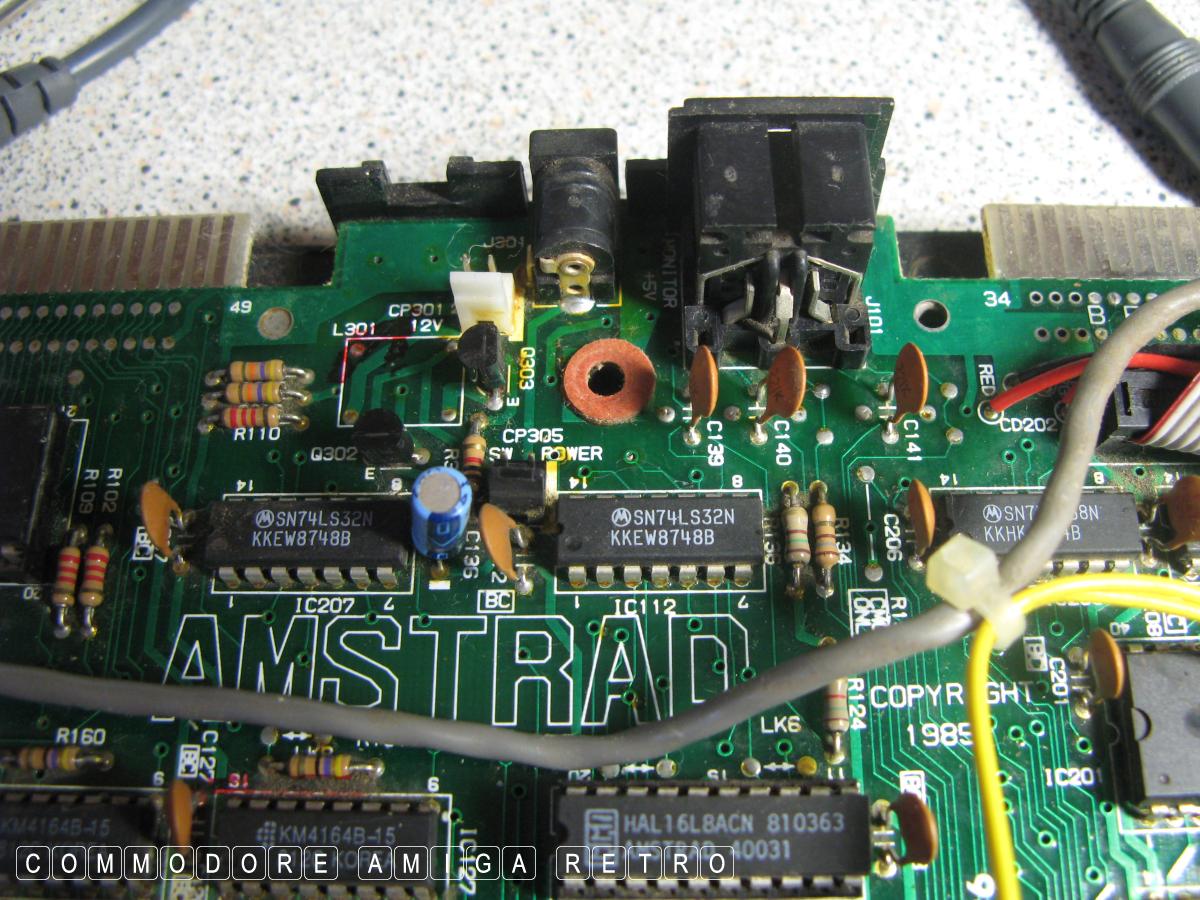

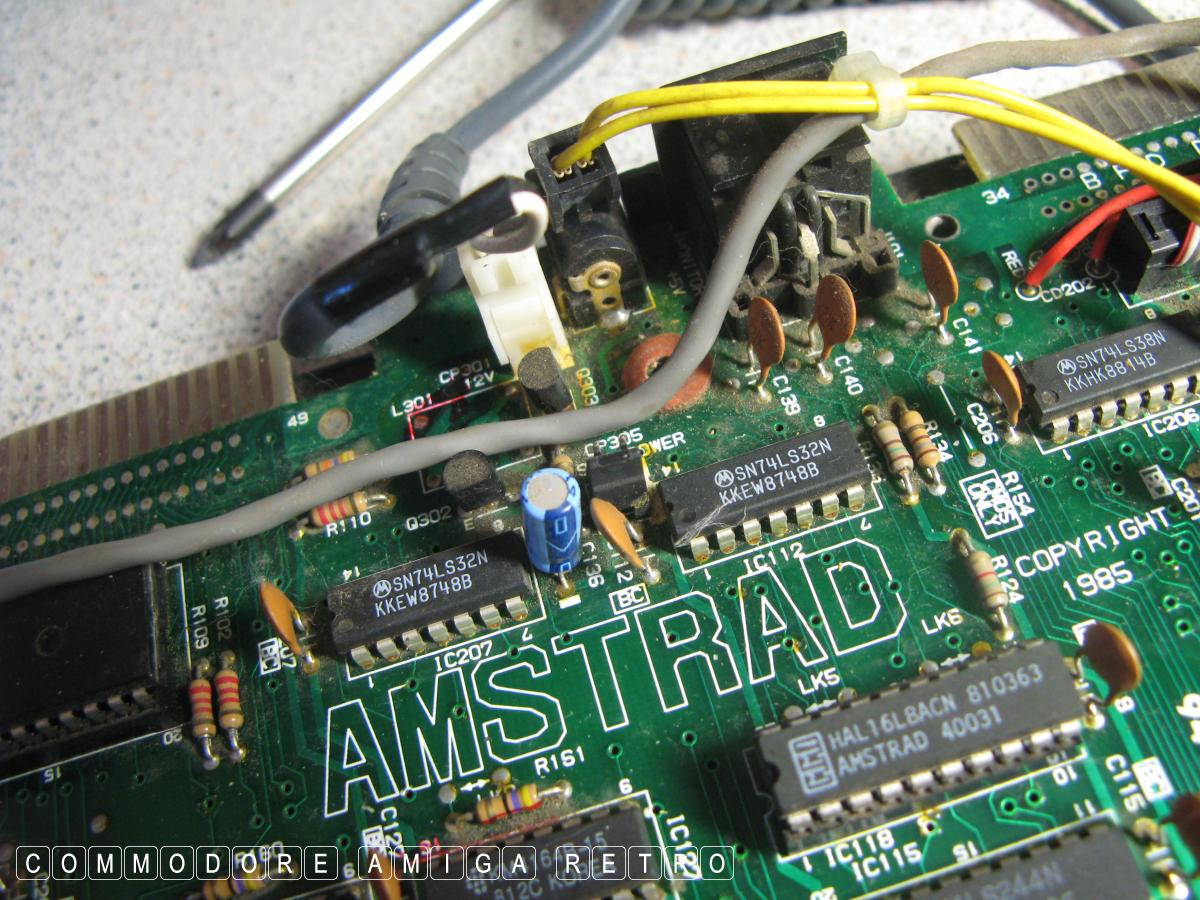

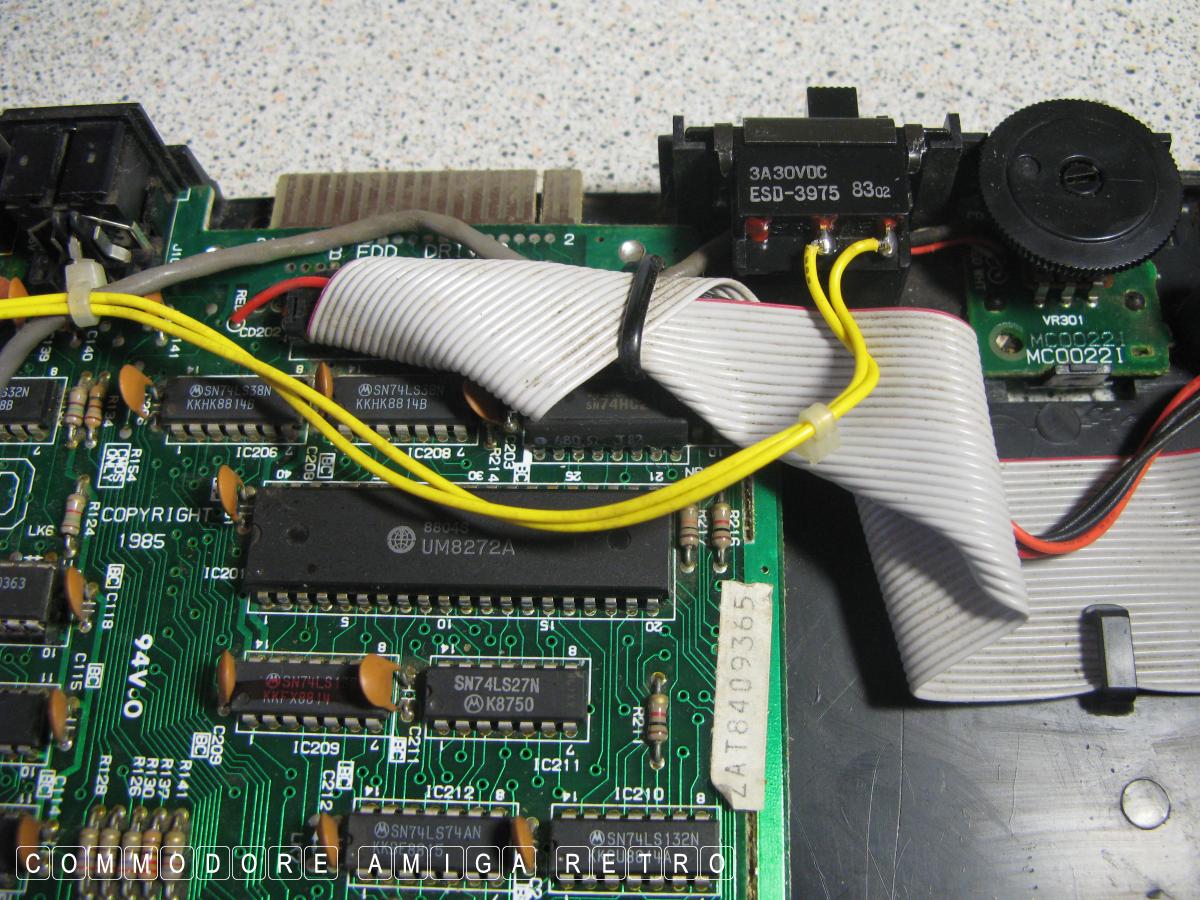

Next I need to clean the motherboard

Looking much better already

Places the switch back into the computer
Just slides in without any fixing

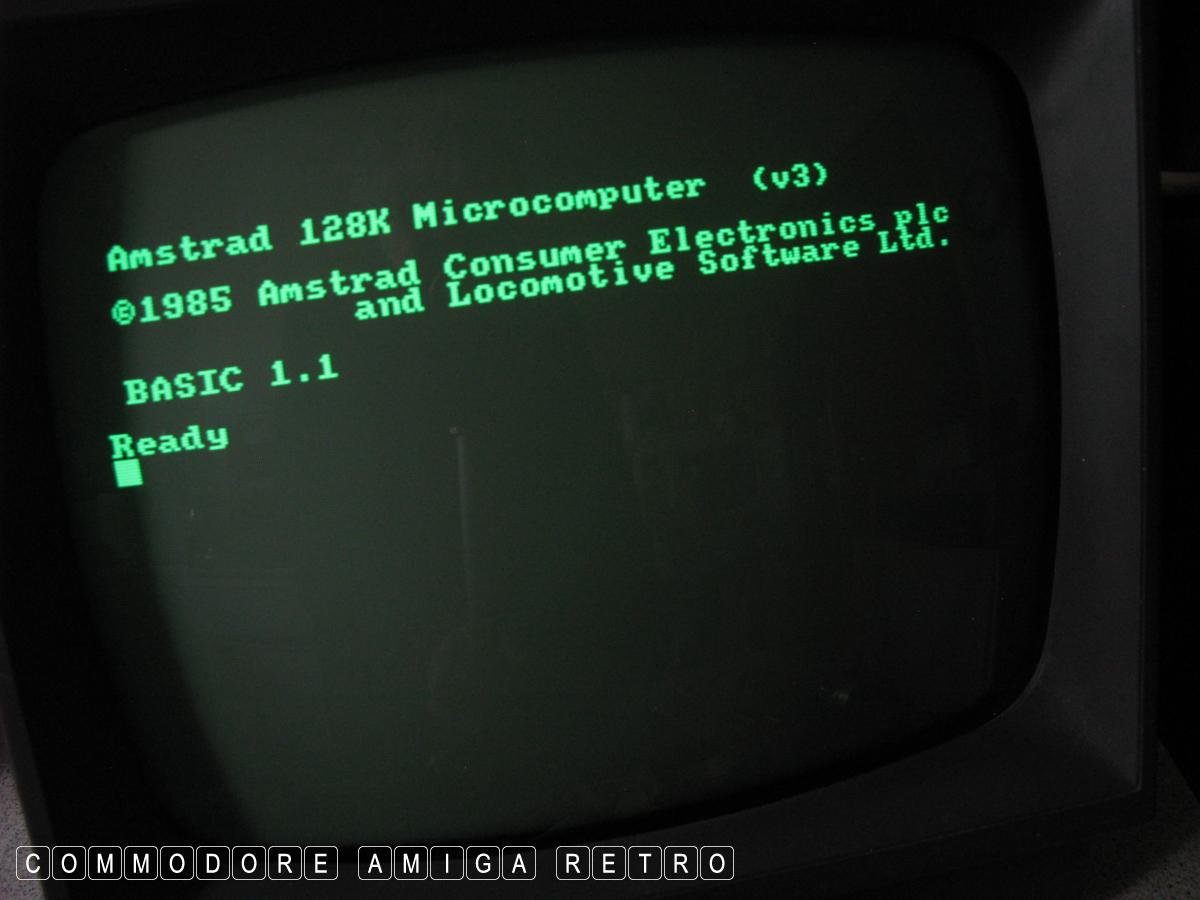

My goodness !!! She worked first time

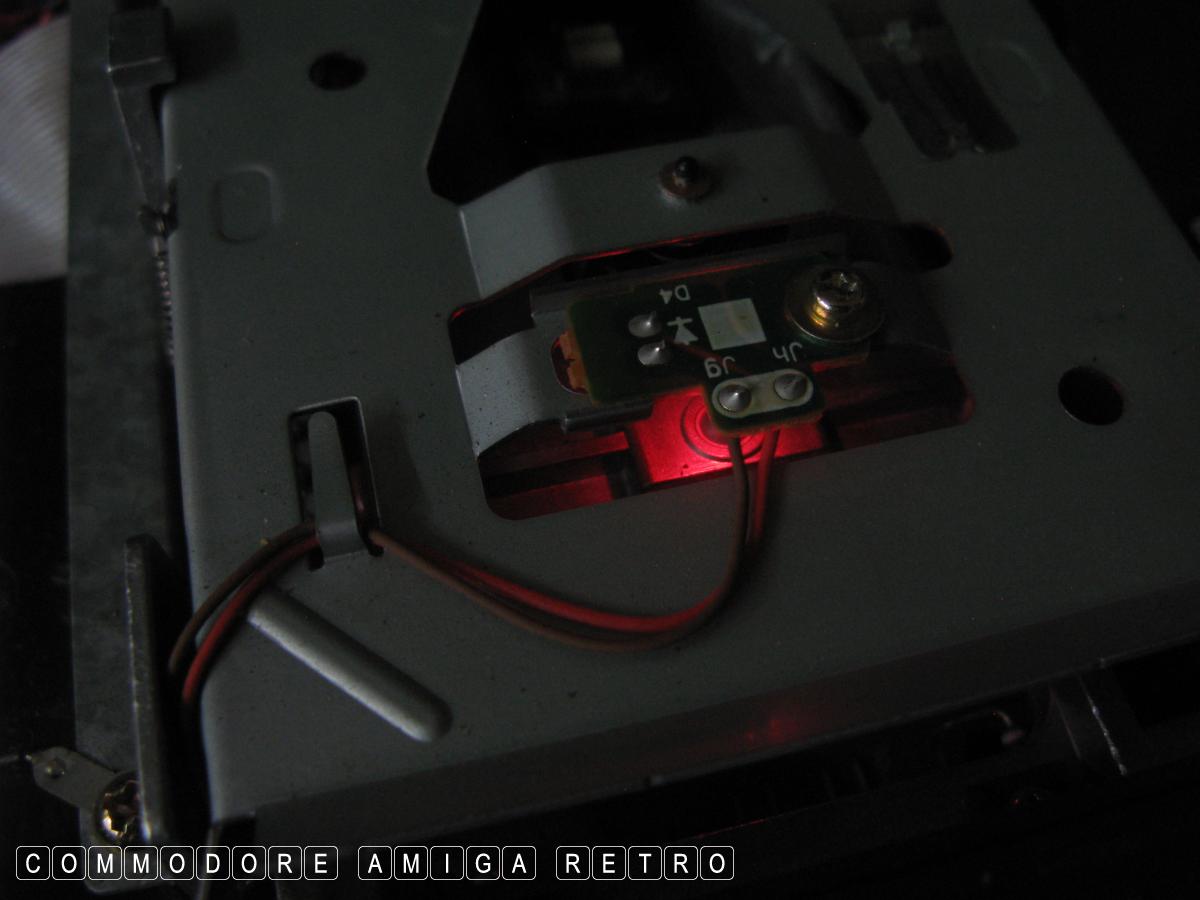

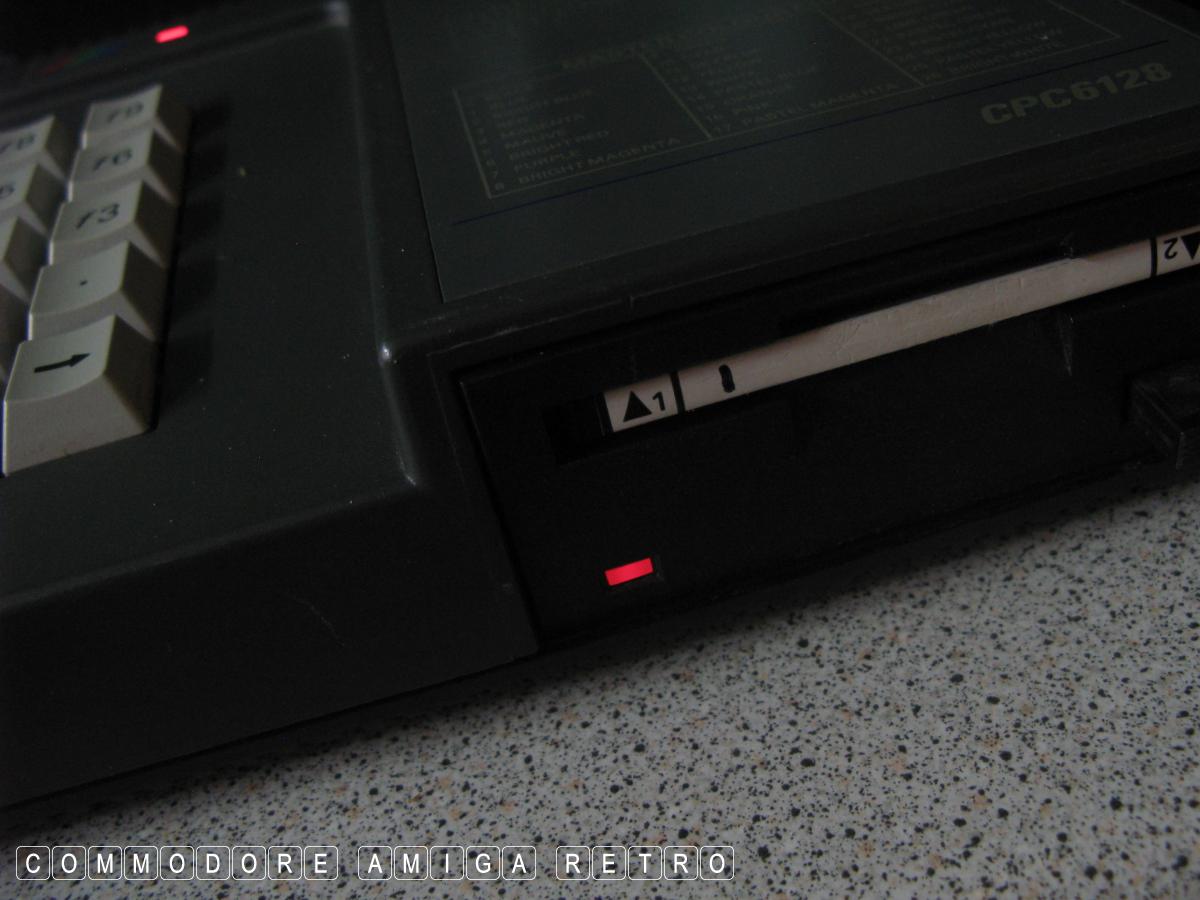

And the red glow from the 3" disk drive

Sadly the drive wasn't working. Onward

OK remove ribbon, power, and two screws
and the drive is on the bench

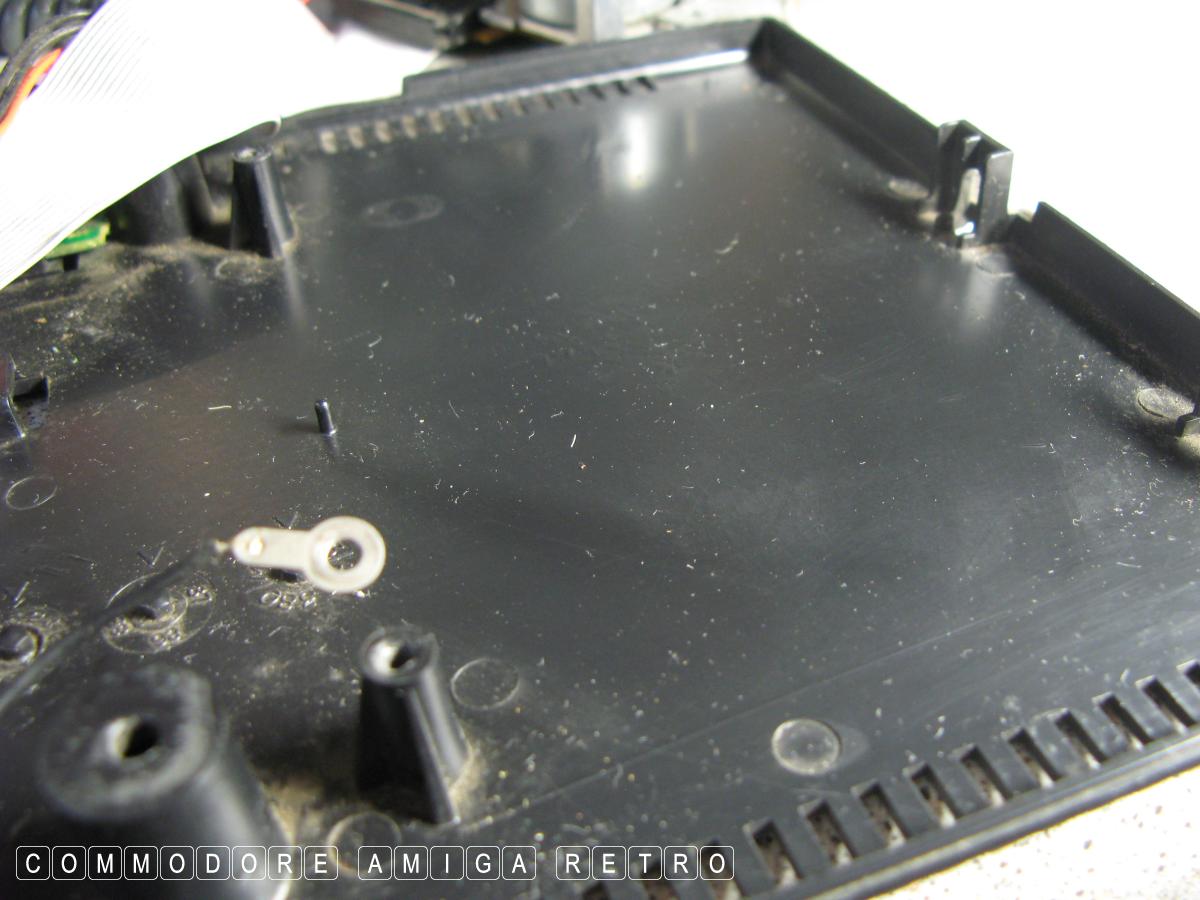

Word of caution do not lose the write

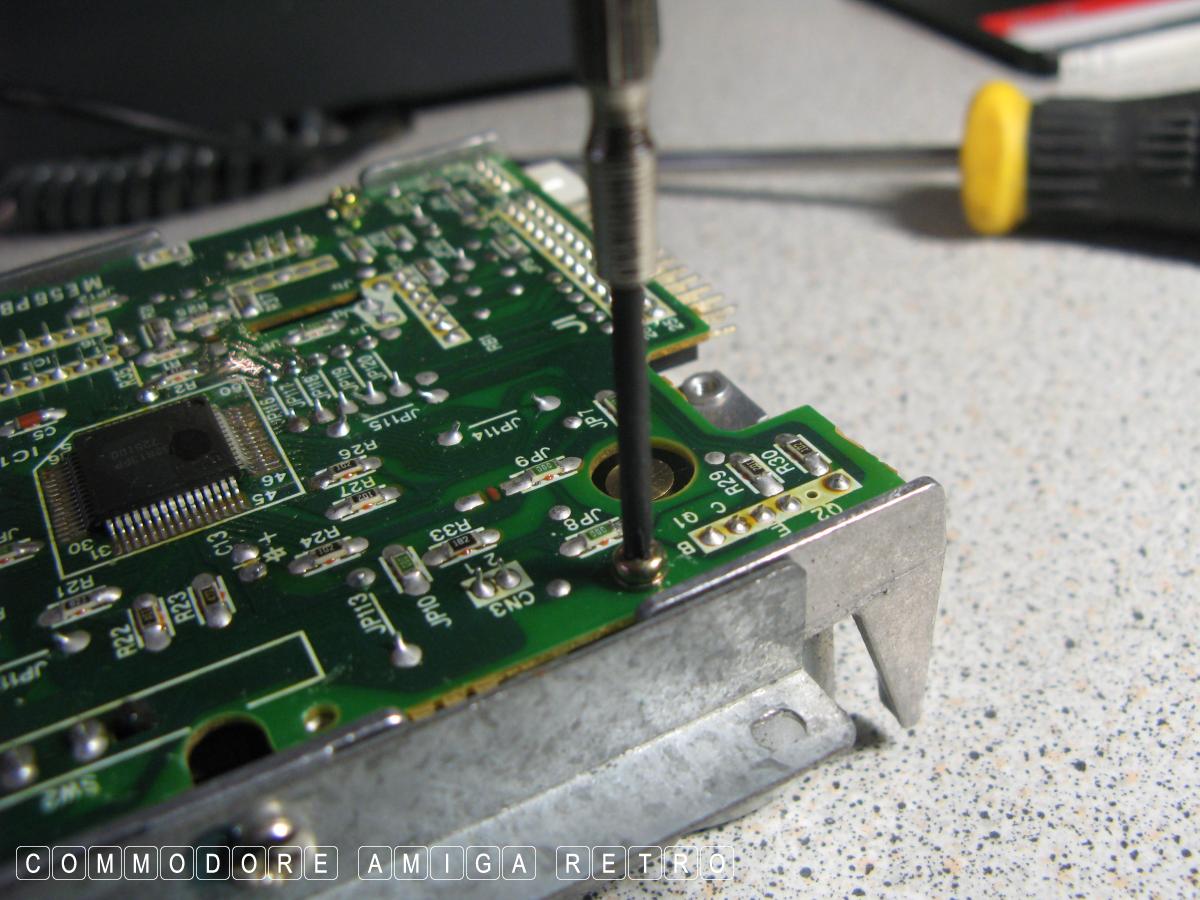

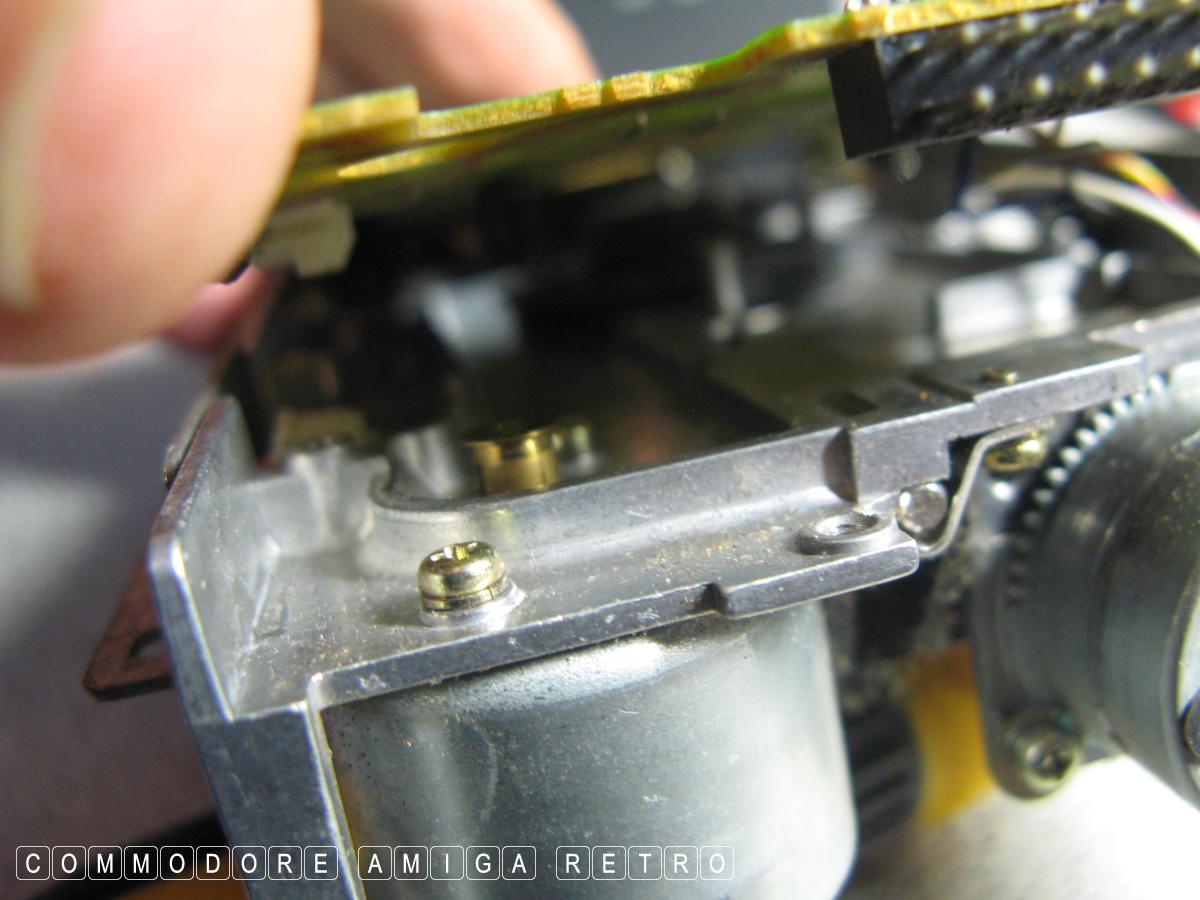

protect pin. OK small screwdriver and
gently remove the first screw.

And then the second

Hmmm .. The third is missing. This is
a smaller screw and on all the drives
I have repaired has been screwed in
very tight. Maybe it was stripped and
left out. Dunno

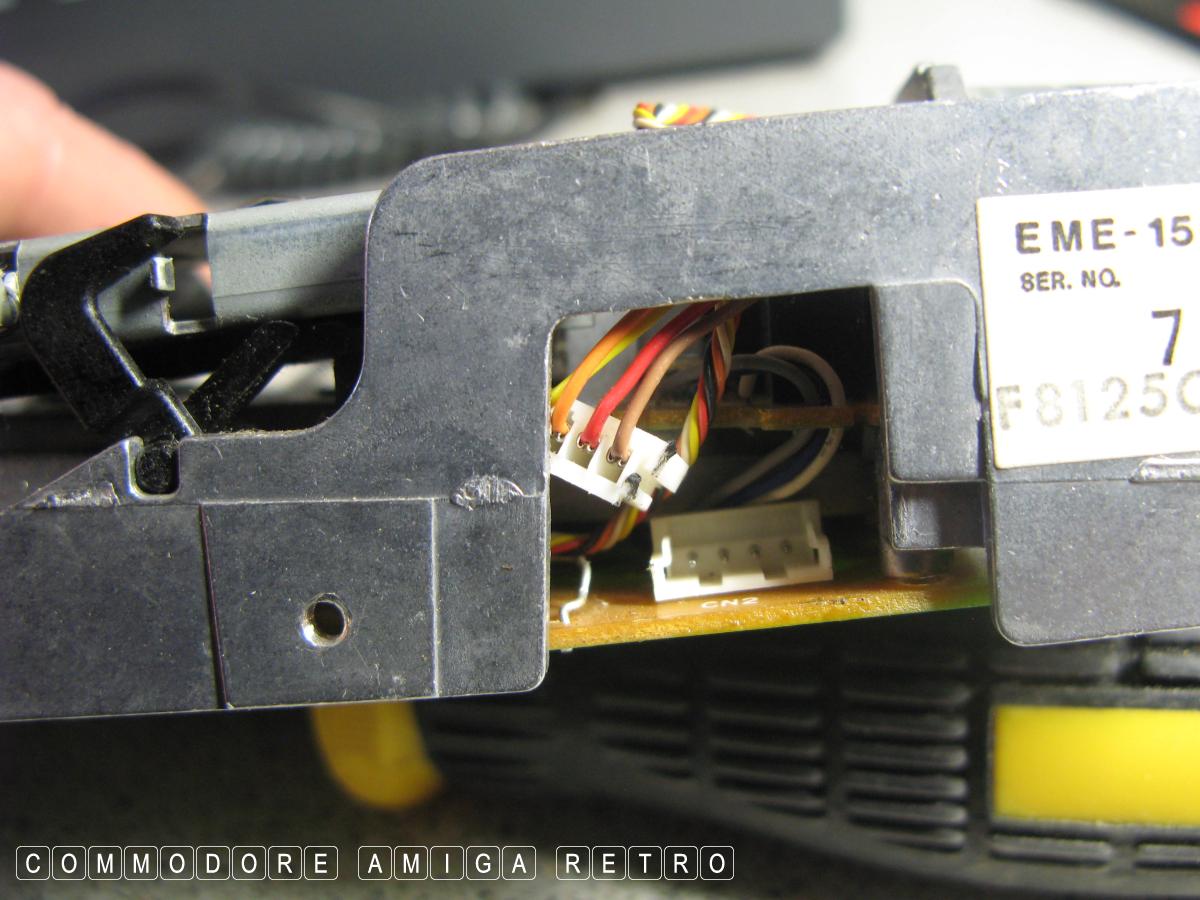

There is sometimes a power connector both
sides. I can generally work with just the one
unfastened. Depends on the lengths of wires

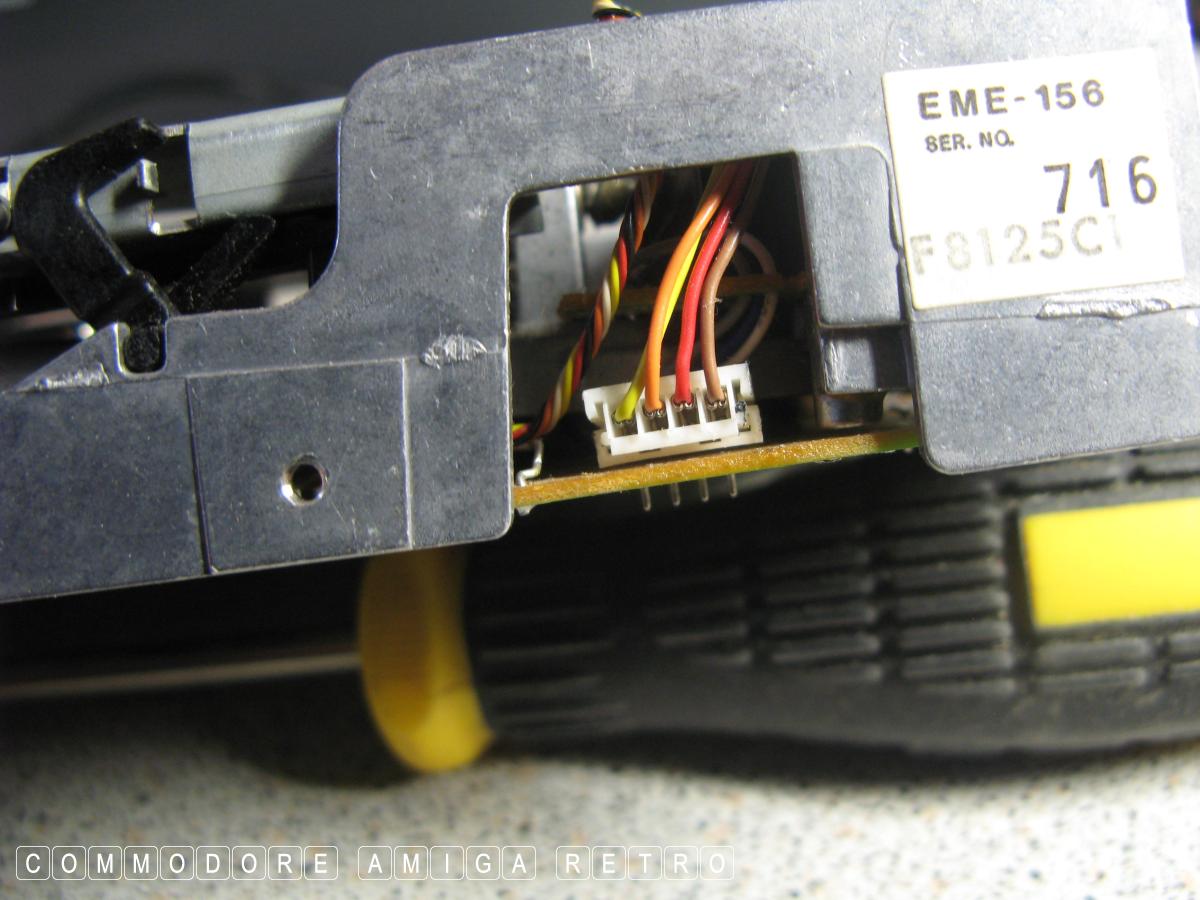

Use a small pair of grips. Be carful and hold
the plastic and not the wires.

Don't forget to reconnect

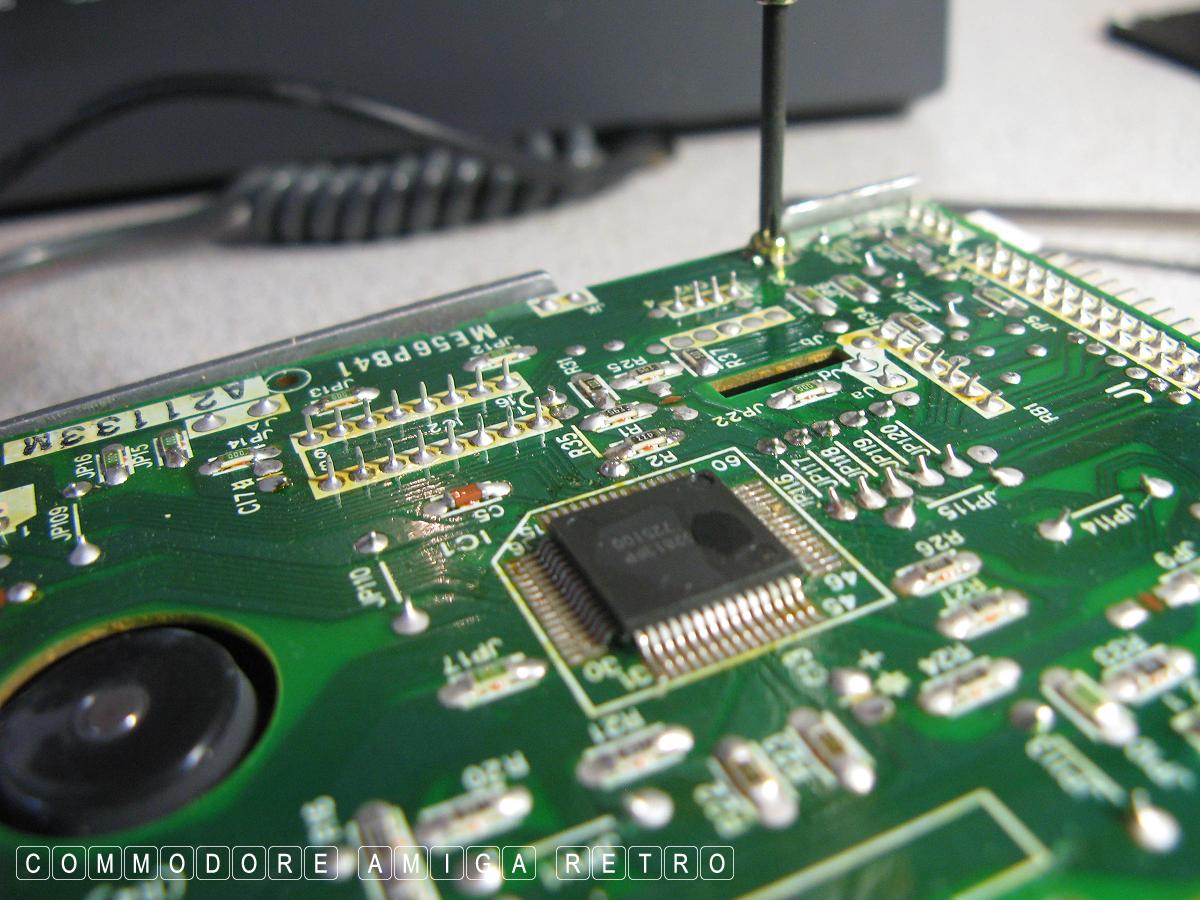

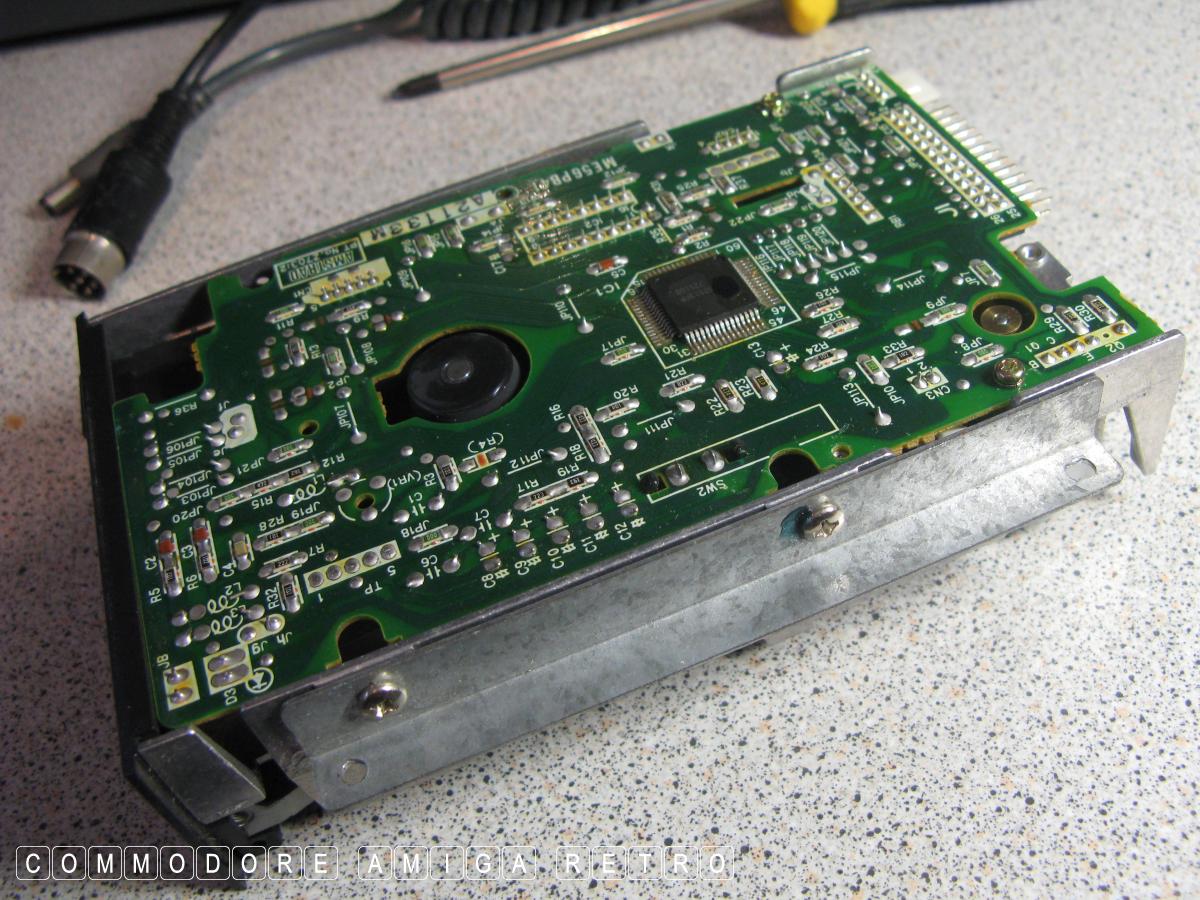

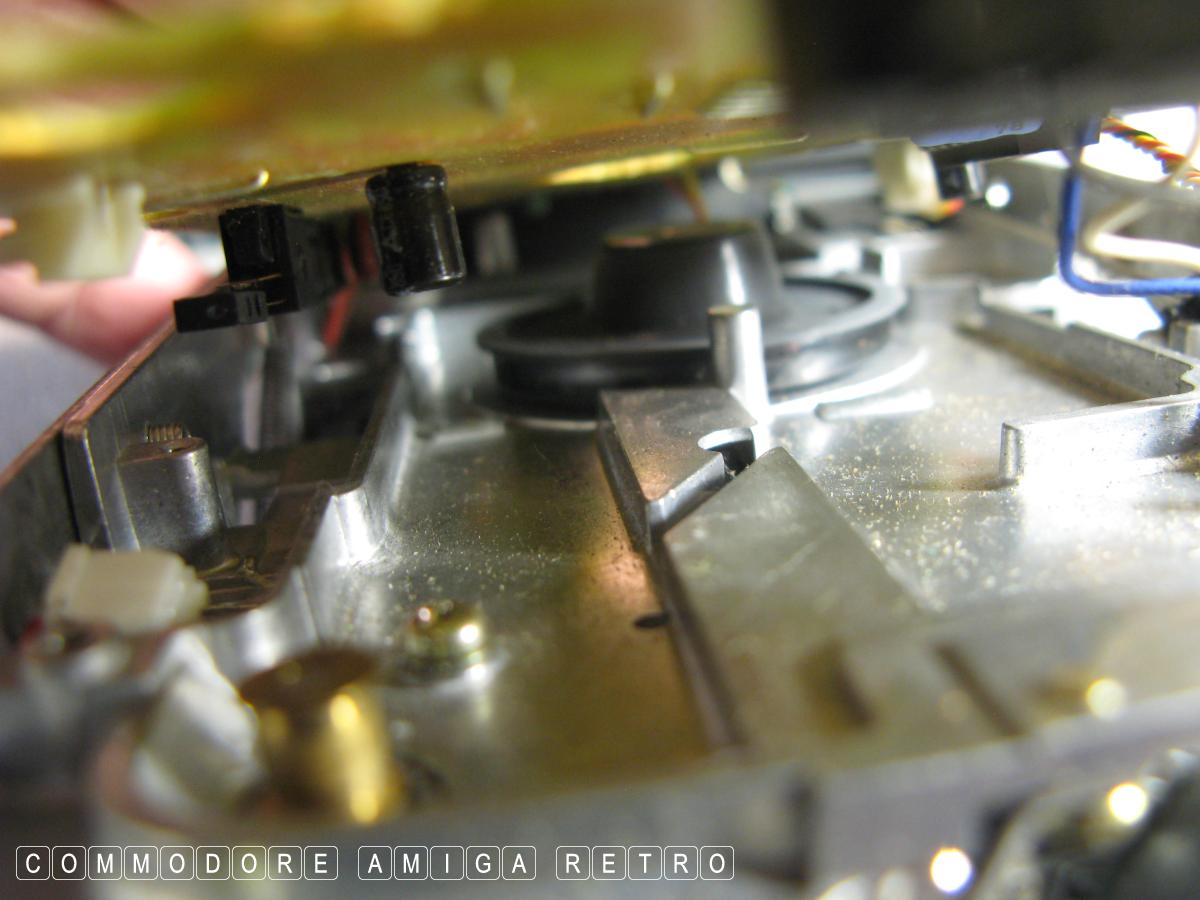

Gently ease open the circuit board
Do not turn over or you will find
the write protect pin dropping out
It is on the left as you look from
the direction of the photograph.

In the words of Eric Cartman

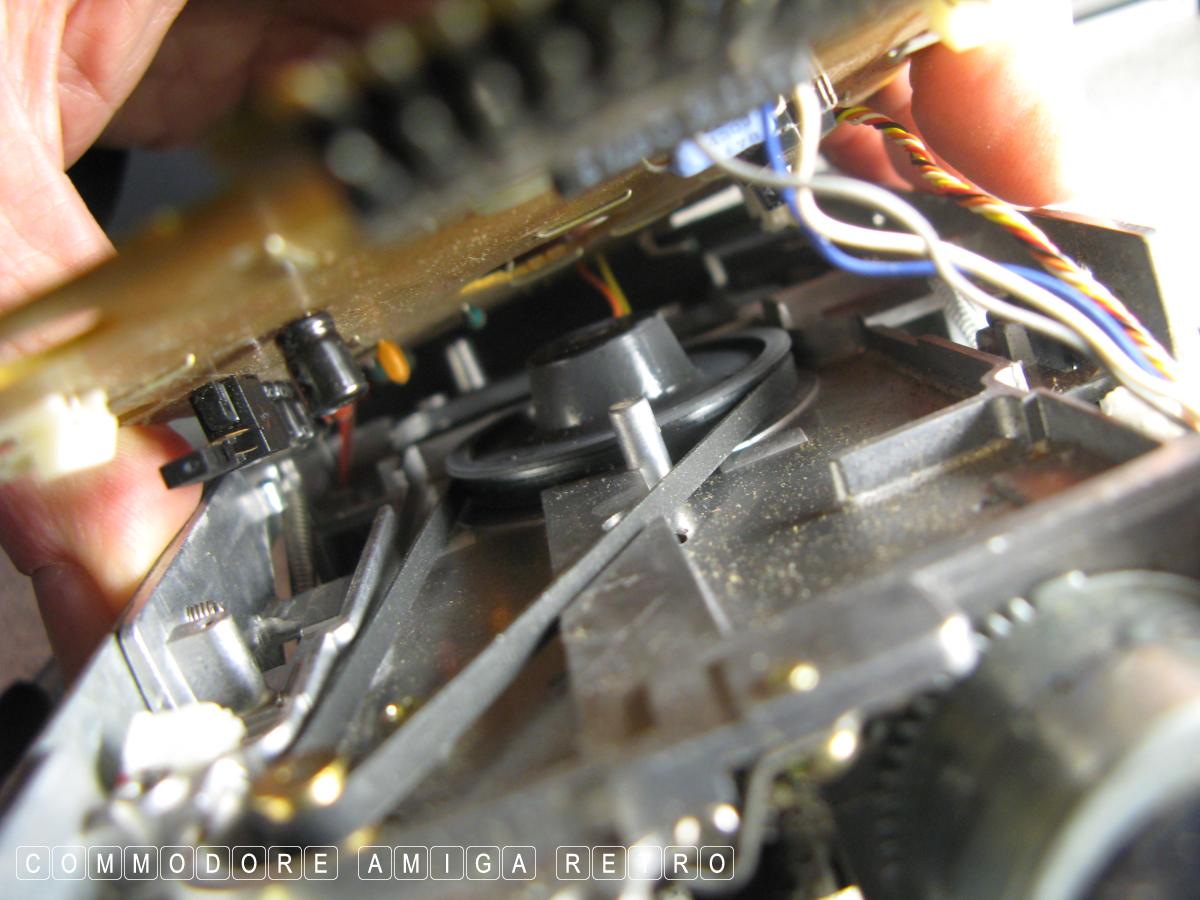

' Hmmm interesting '... No drive belt

To the batcave and my bag of belts

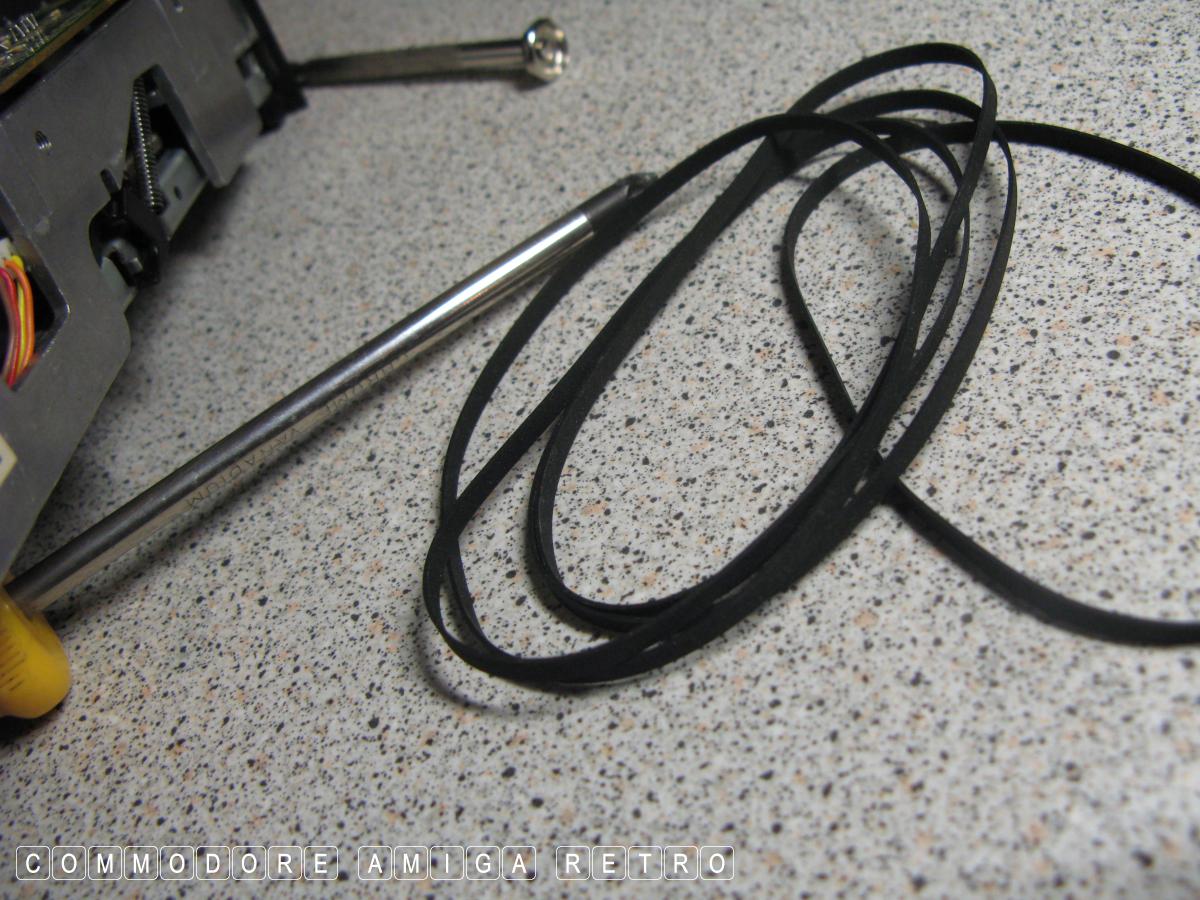

They don't call me the rubber band
man for nothing. All belted up

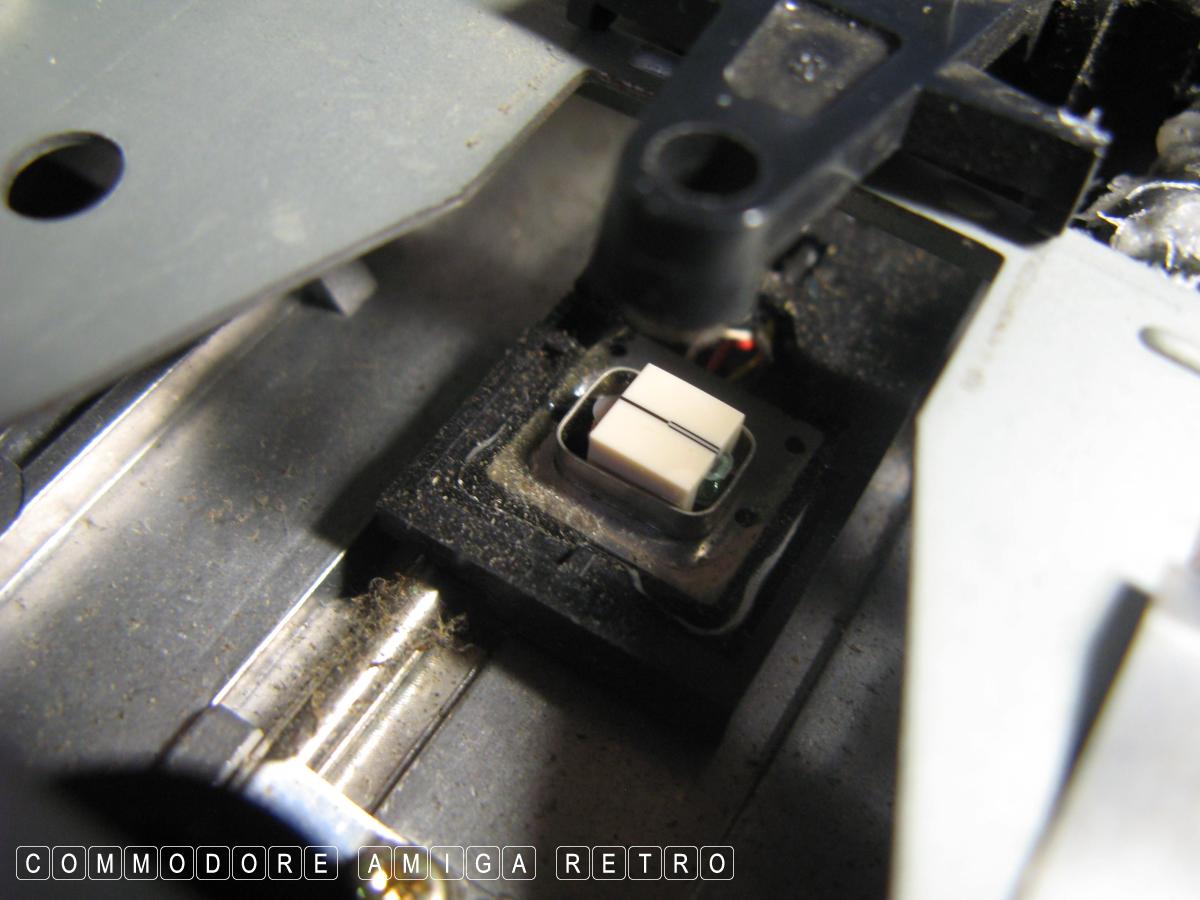

Check your pin is still sitting quietly

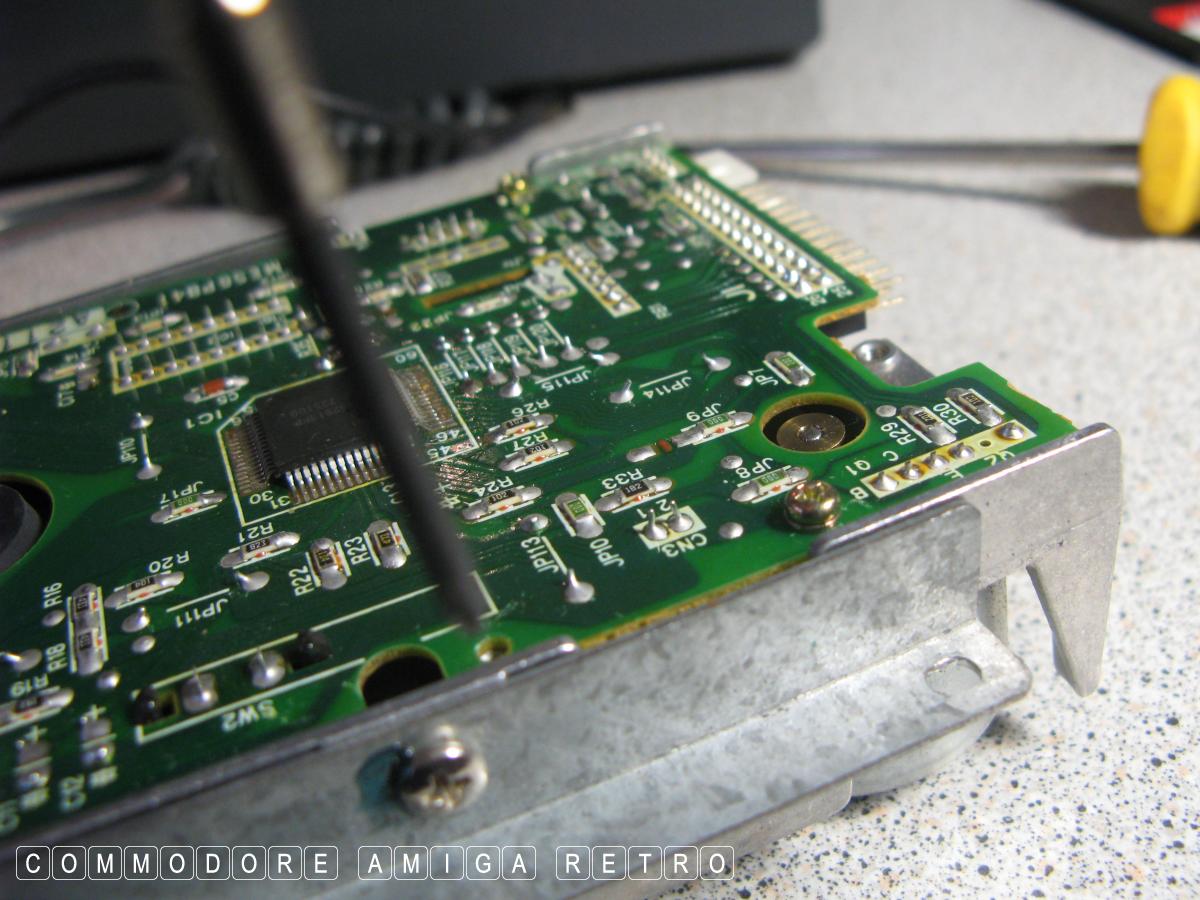

You can see the write protection pin
just left of the hole by the connector

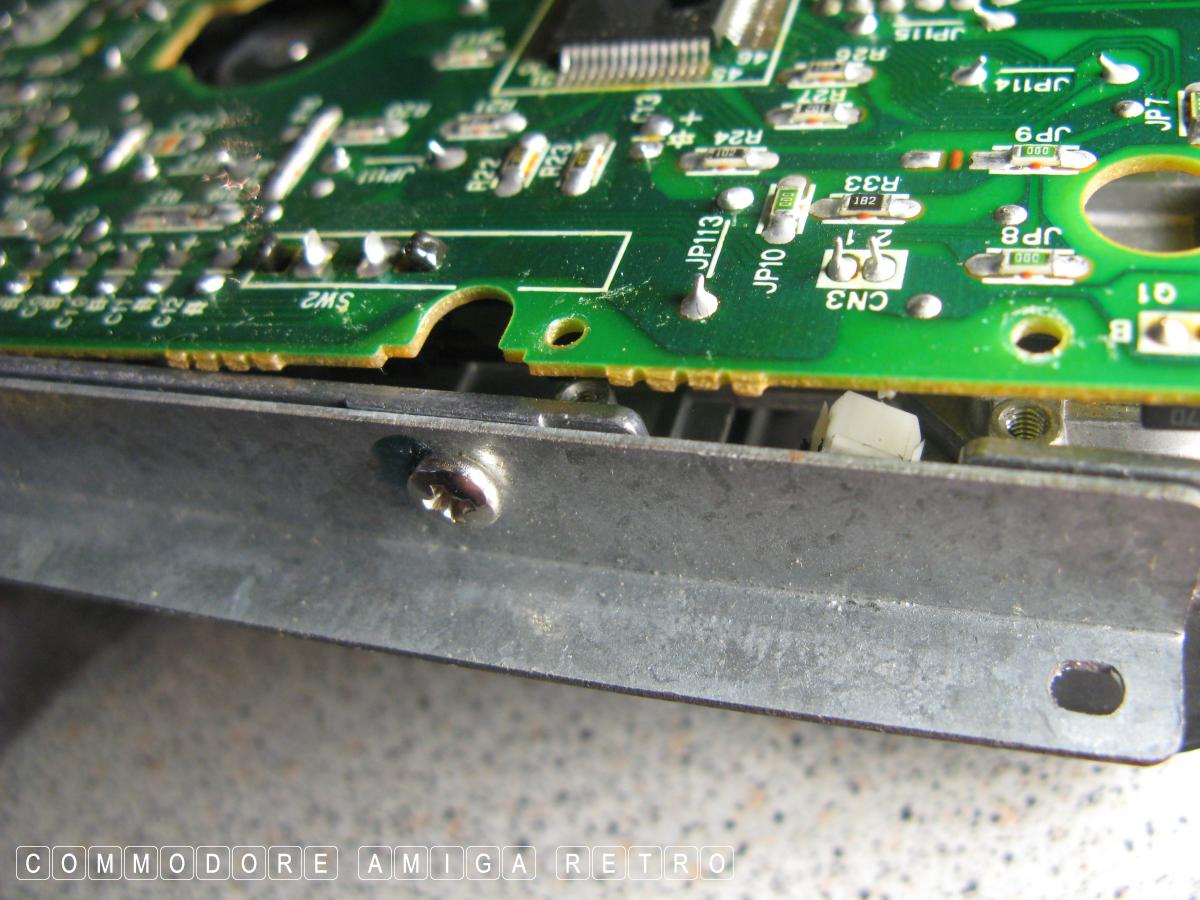

Just to give context as to where
the pin sits.

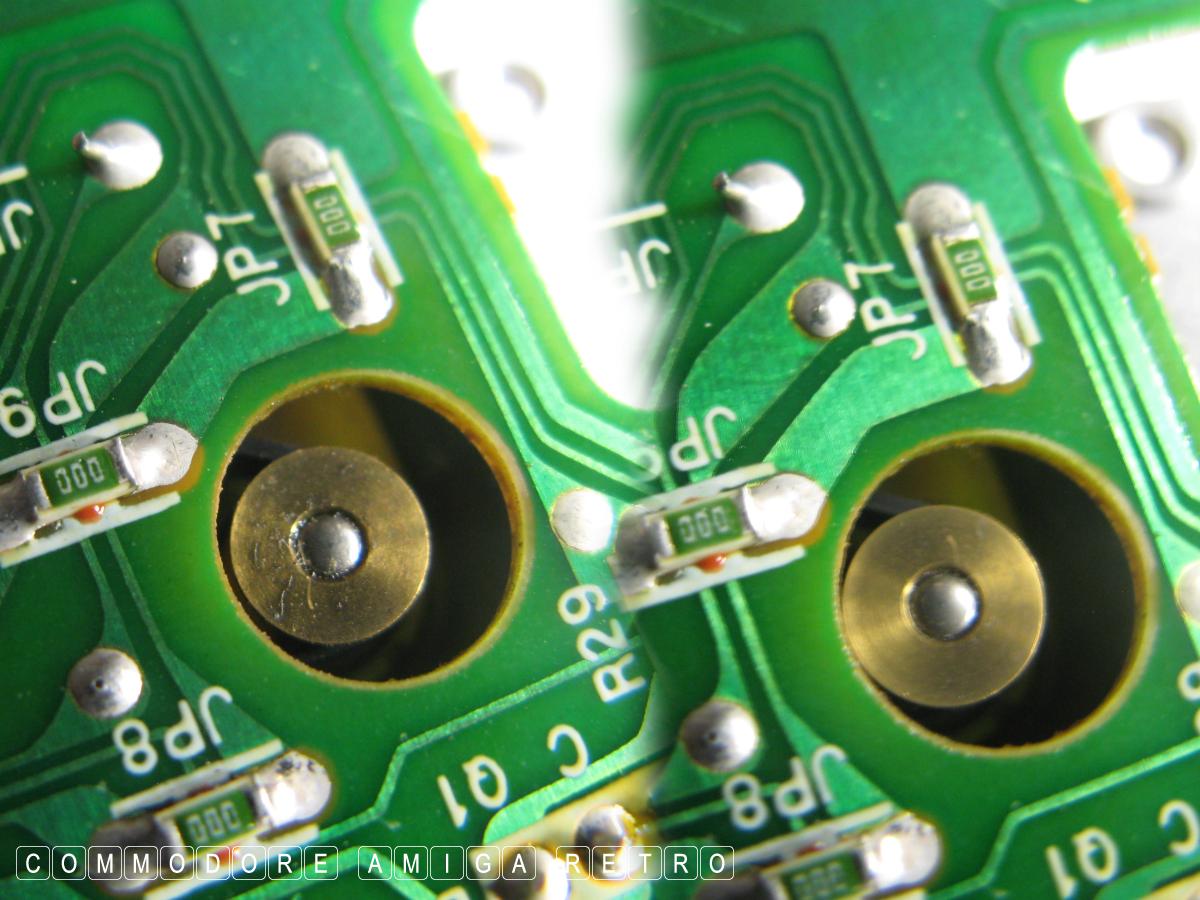

Clean and check the pully or capstan.
Left is stationary and right is with
me turning the bigger wheel. It is
going round which is the desired result

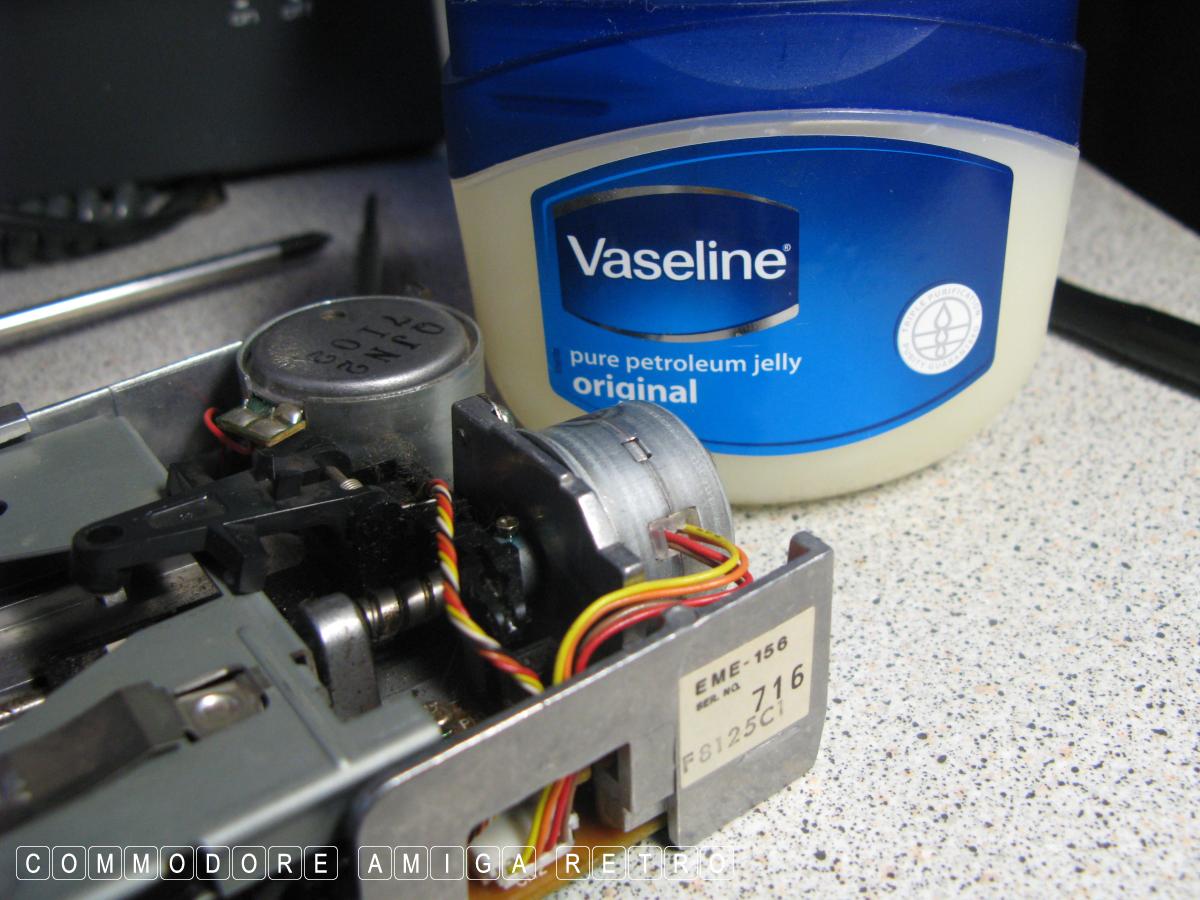

Time to grease the motor worm shaft

Filthy. Needs a good clean. Use the
correct cleaning fluid. Cassette head
cleaner is what I use.

Reconnect the ribbon and electrical
connection. Need to clean the case

Clean out the underside of the
disk drive bay

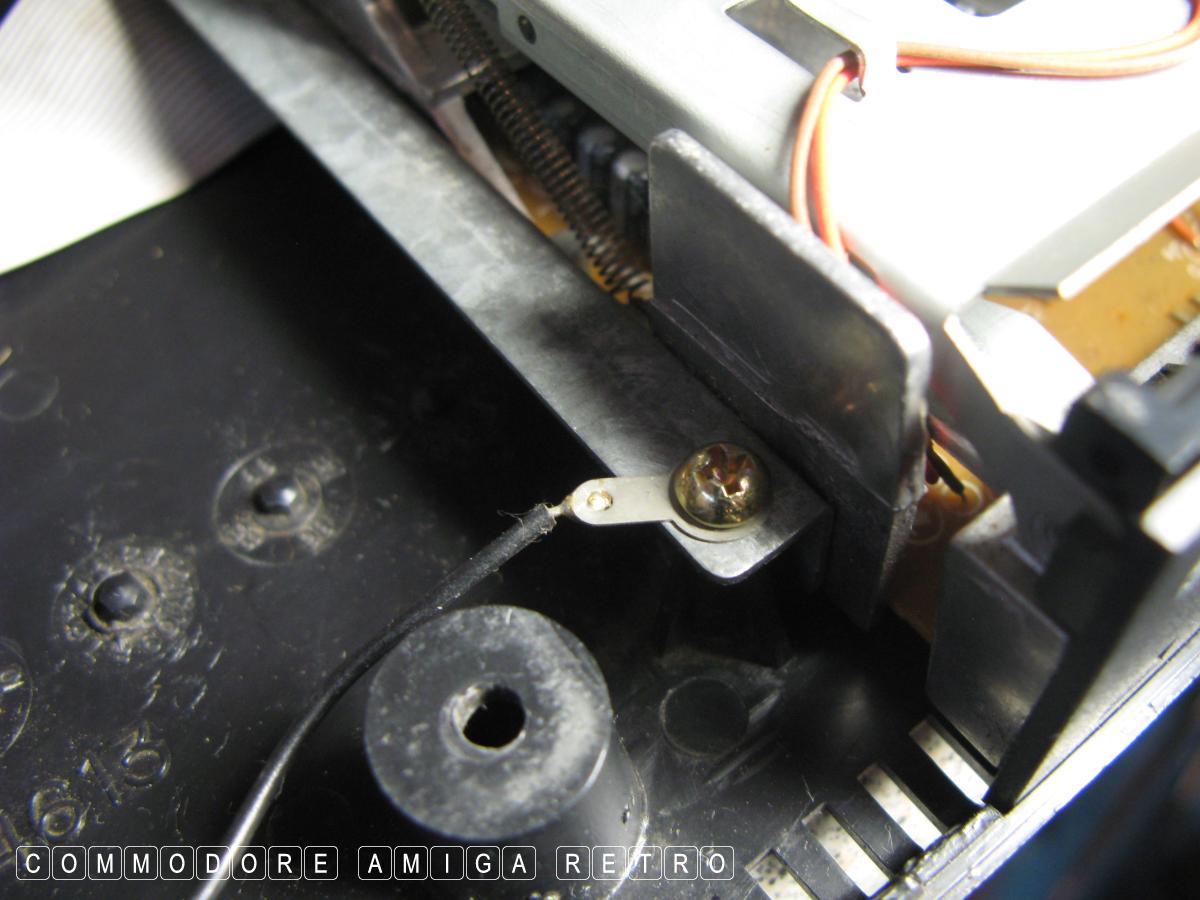

Connect the earth as you screw the
main drive back in place

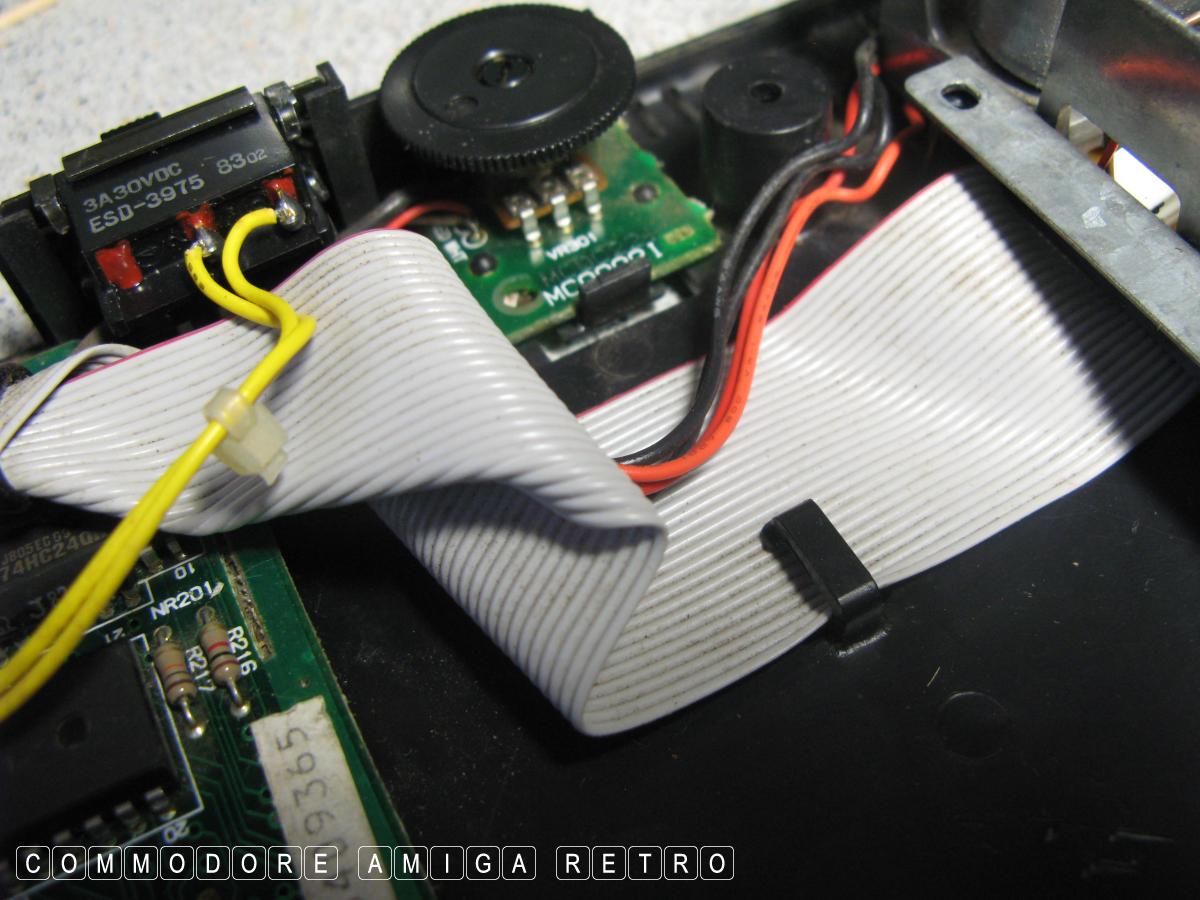

Place the ribbon in the ribbon tidy

Power on ...

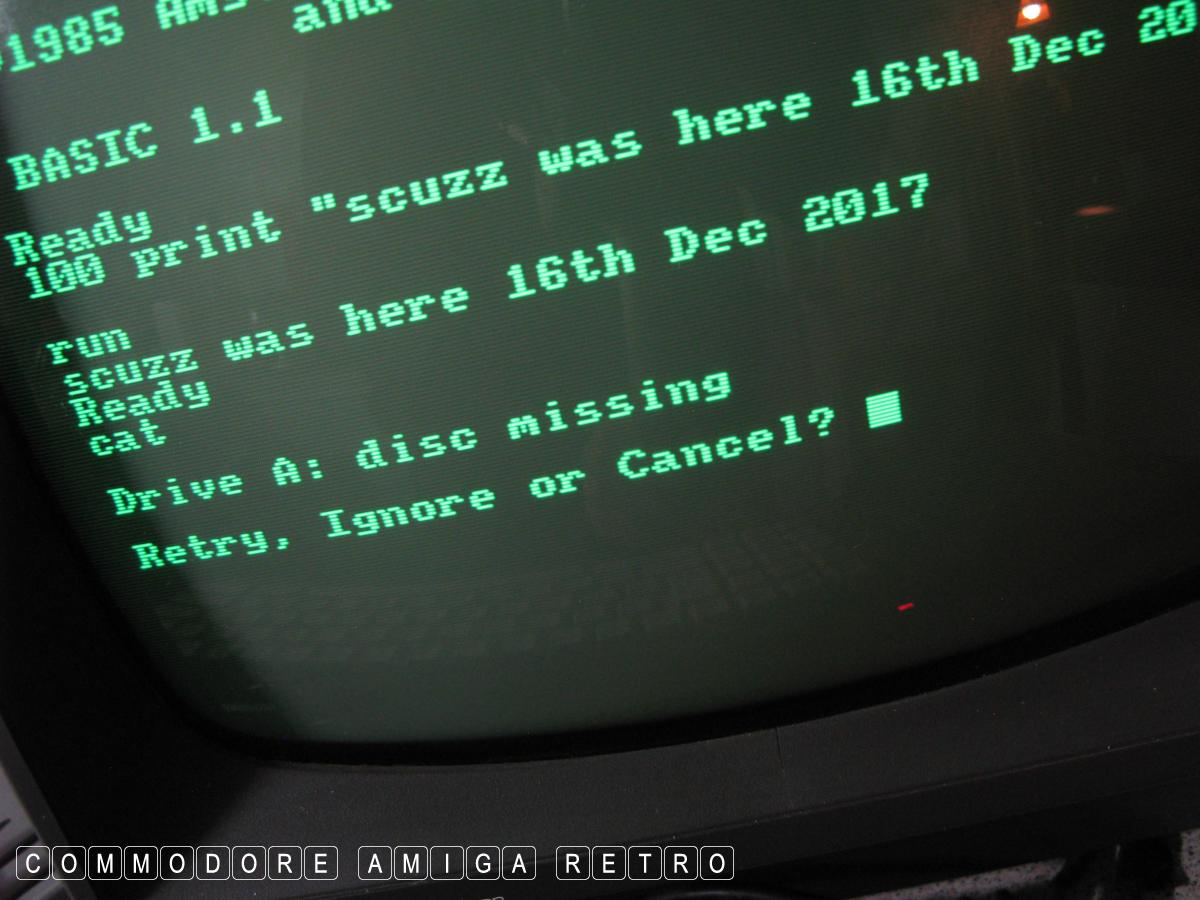

Drive light on and 3" inserted

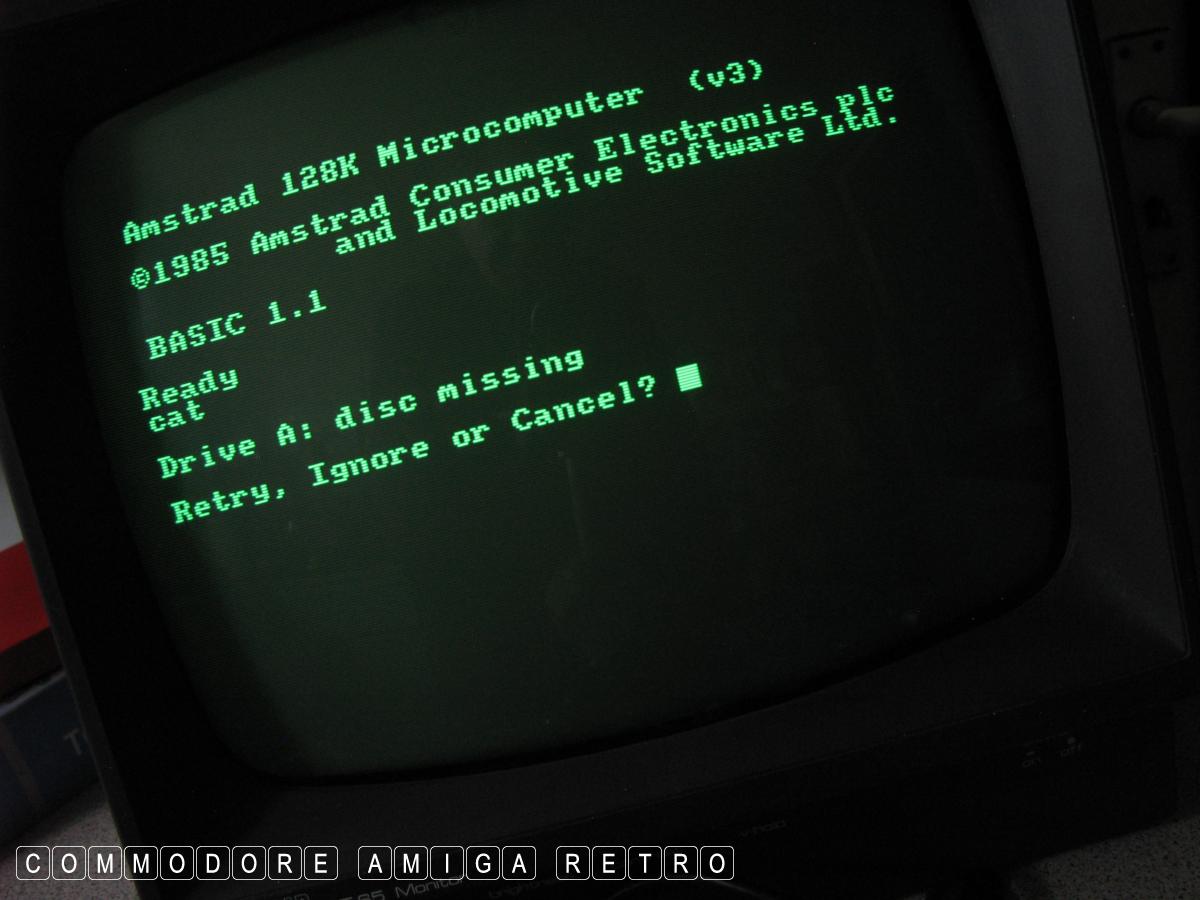

Didn't work. Bugga !! OK cuppa tea
and let's have another go
