Entry 1st July 2018: Post 2: GVP G-Lock


GVP G-LOCK - The GVP Genlock

Reflecting on a time when video tape was king. The GVP G-Lock Genlock

The G-Lock will work with any NTSC or PAL-based Amiga having at least
512k of memory and version 1.3 or greater Amiga operating system. If
G-Lock is multitasked or operation under ARexx control is planned, a
minimum of 1 megabyte of chip memory is required. Enhanced operation
will be realized on computers having the Enhanced Set (ECS), expanded
memory (fast ram ), hard drives, or accelerated CPU's. G-Lock is
compatible with Advanced Architecture (AA) chip set based Amigas like
the Amiga 4000.

G-Lock is powered directly by the Amiga. While power requirements are
minimal, the A500, A500 Plus and A600 series computers may be limited
in the number of peripherals that can be attached.

G-Lock is designed to be used with the following external video and
audio equipment:

Camera as live video source
	Composite
	S-Video (Y/C) Hi8 and S-VHS

VCR, VTR, camcorder or laserdisc player
	Composite
	S-Video (Y/C) Hi8 and S-VHS
	RGB/YUV with separate syncs (from G-Lock only)

CD or cassette player

Monitors
	Amiga RGB monitors ( 1080,, 1084, 1084S, 1950, 1960 )
	Studio monitor, TV receiver.

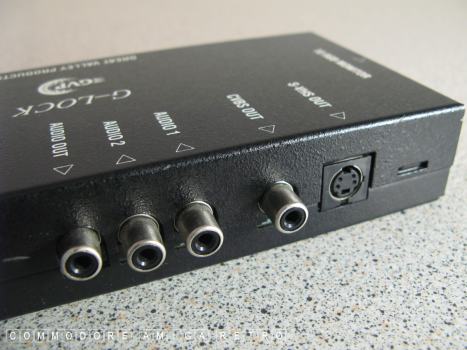

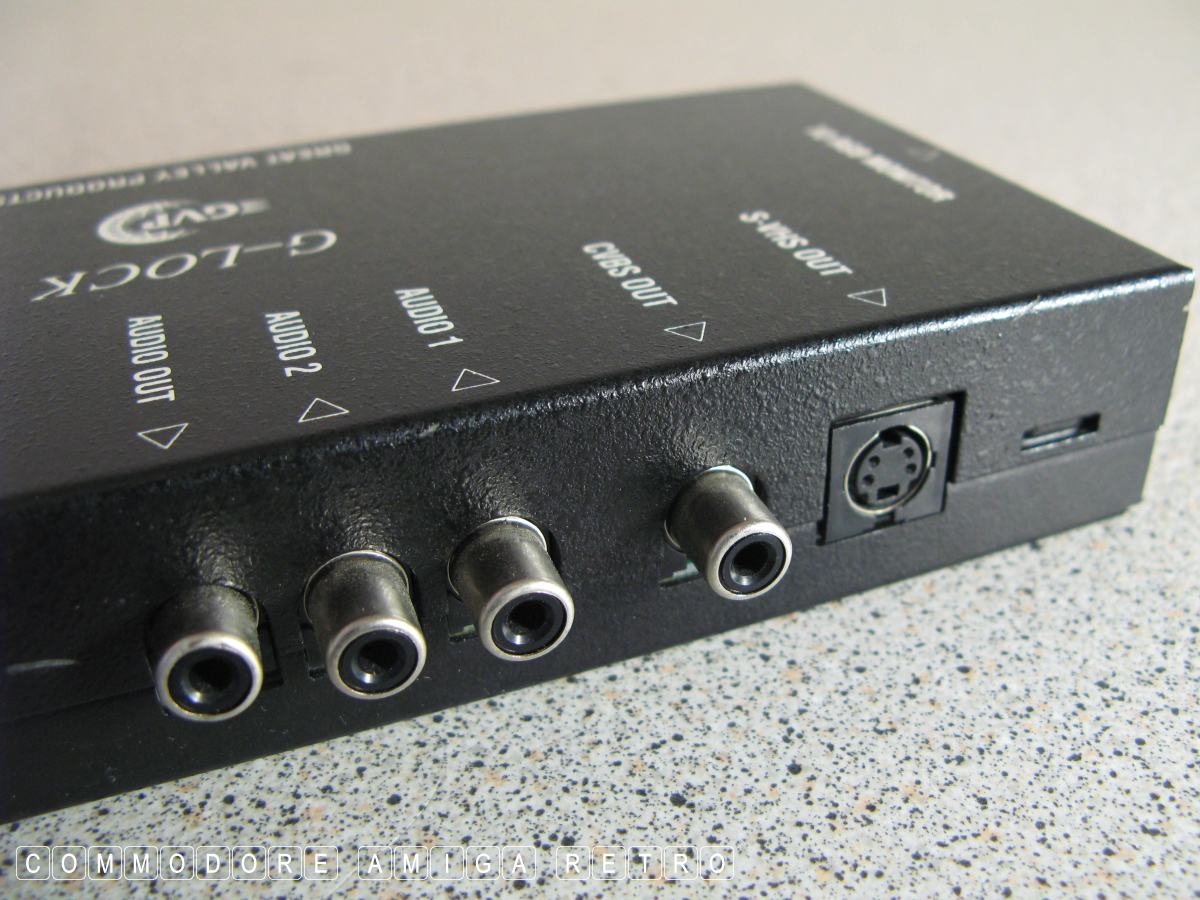

Note: All composite video connectors and all audio connectors are of the
RCA type. All Y/C (Hi8 or S-Video) connections use the standard 4-pin
Mini-DIN connectors.

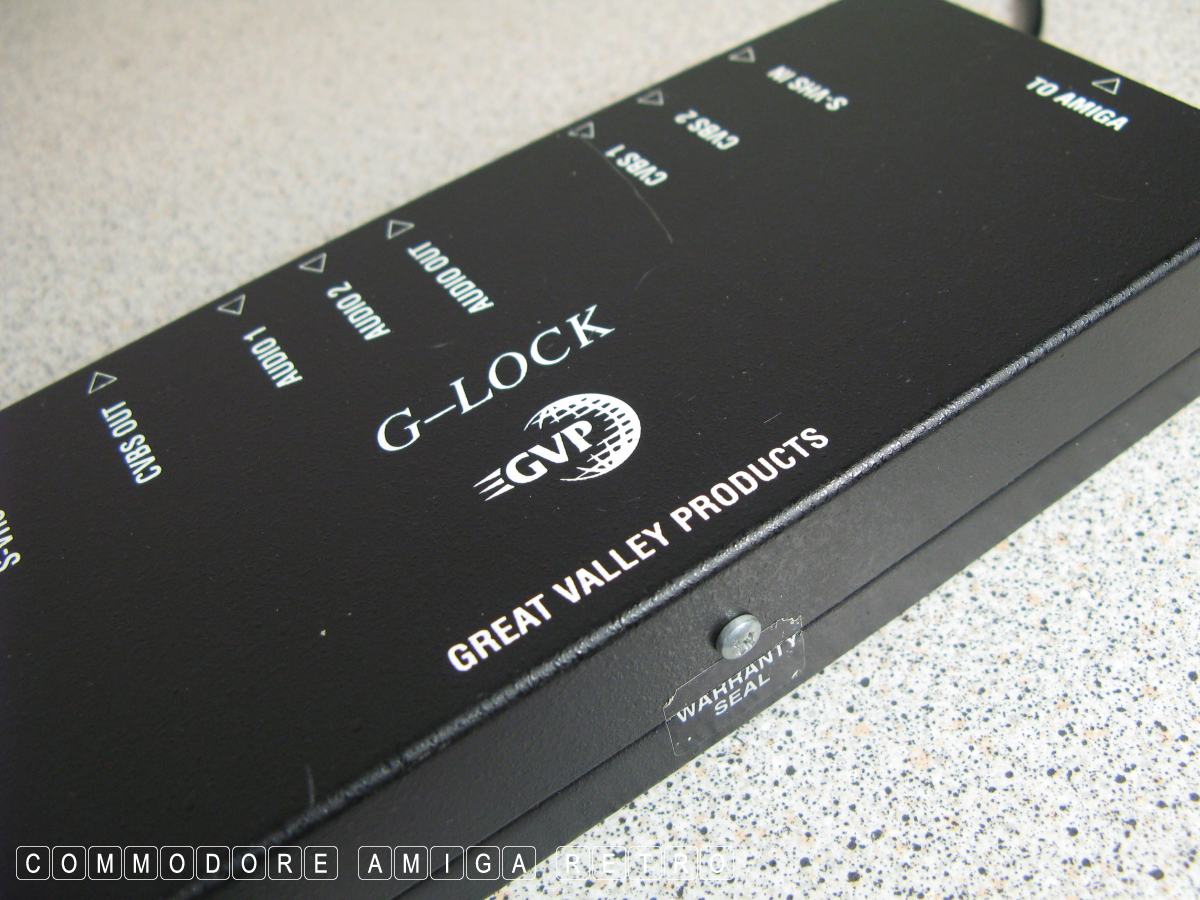

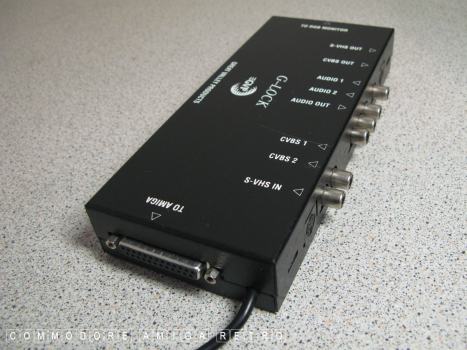

GVP Genlock: The G-LOCK

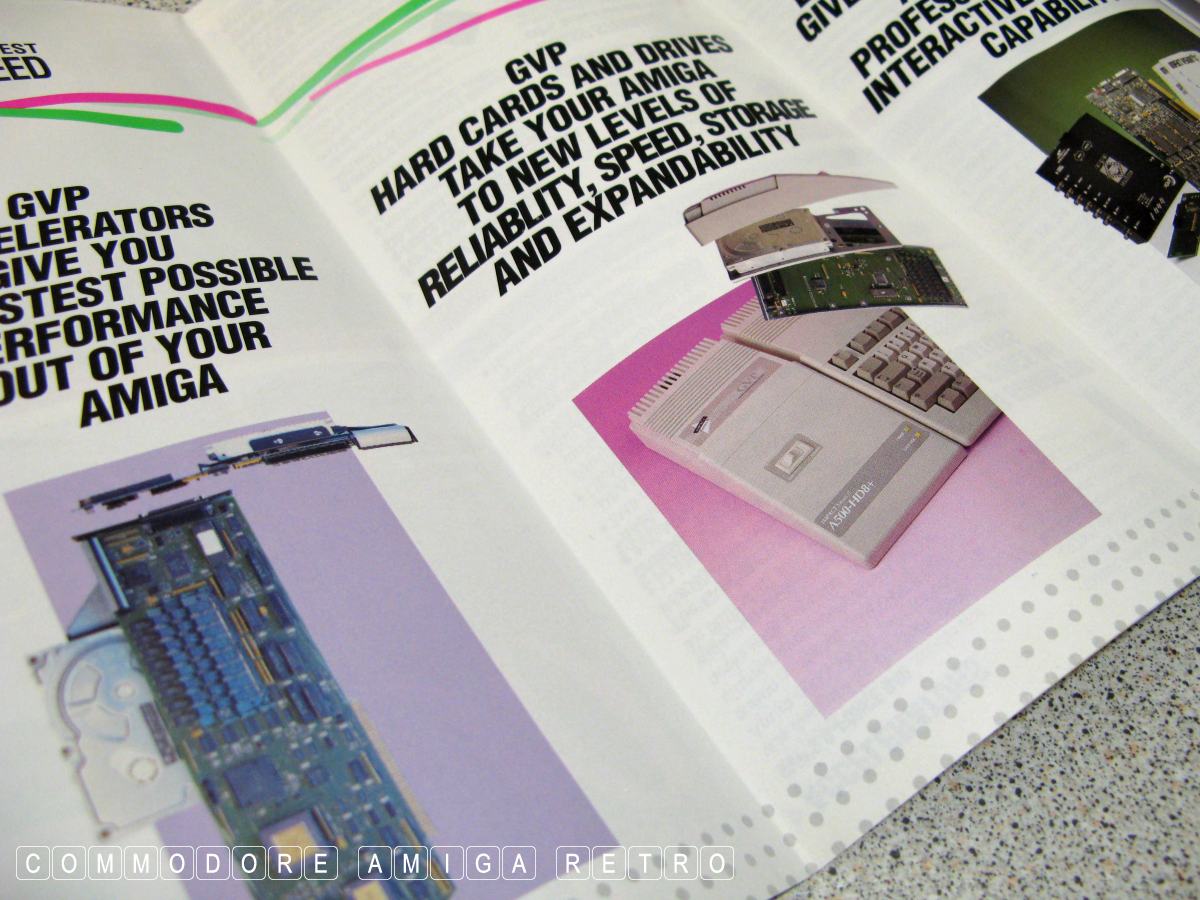

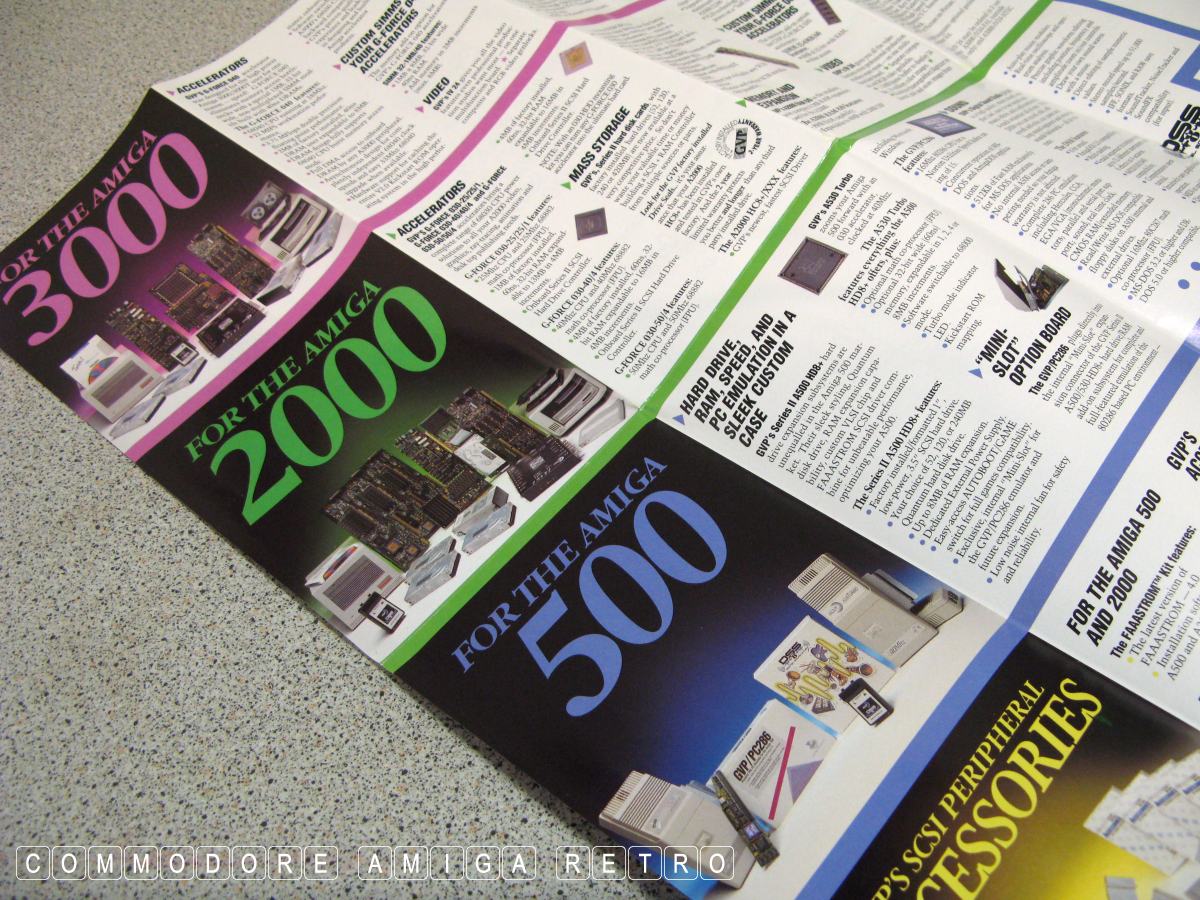

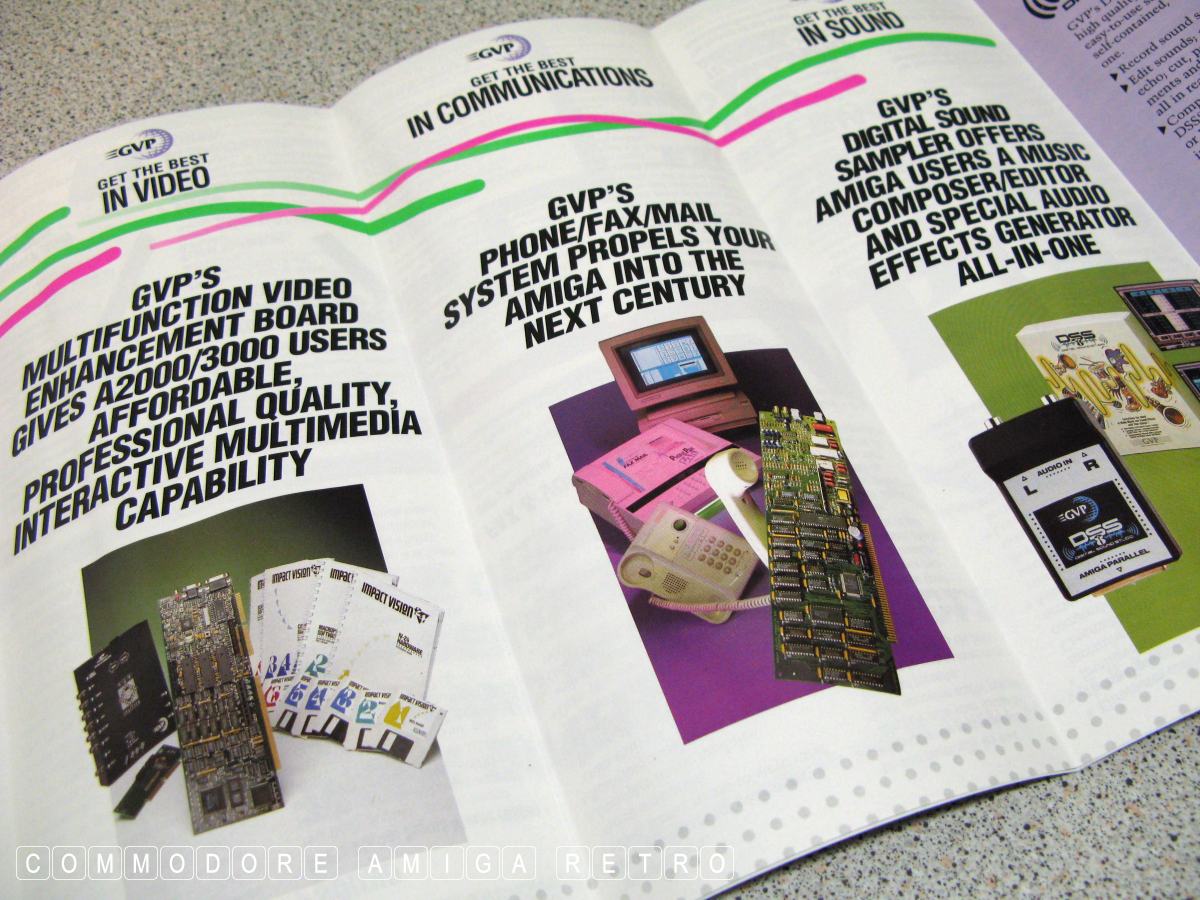

Amazing amount of products made by GVP

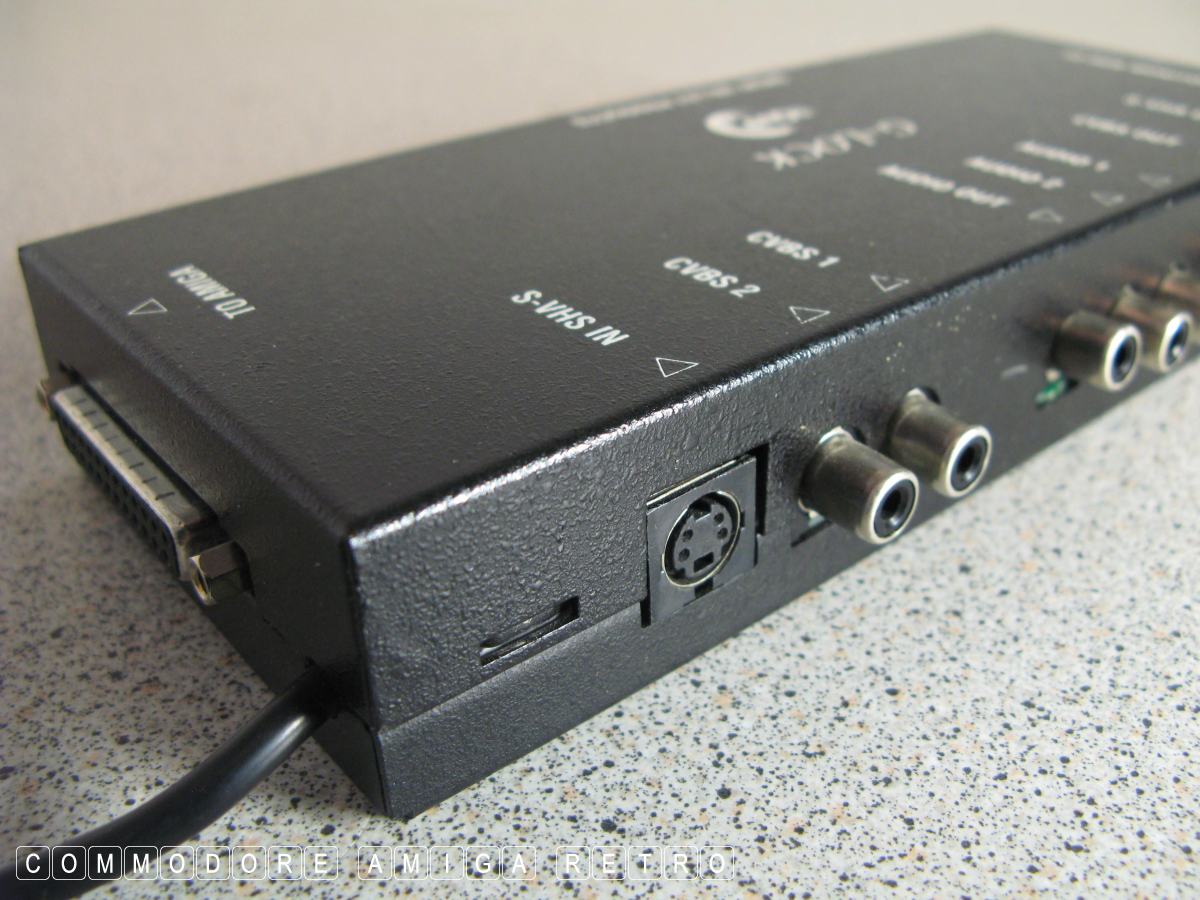

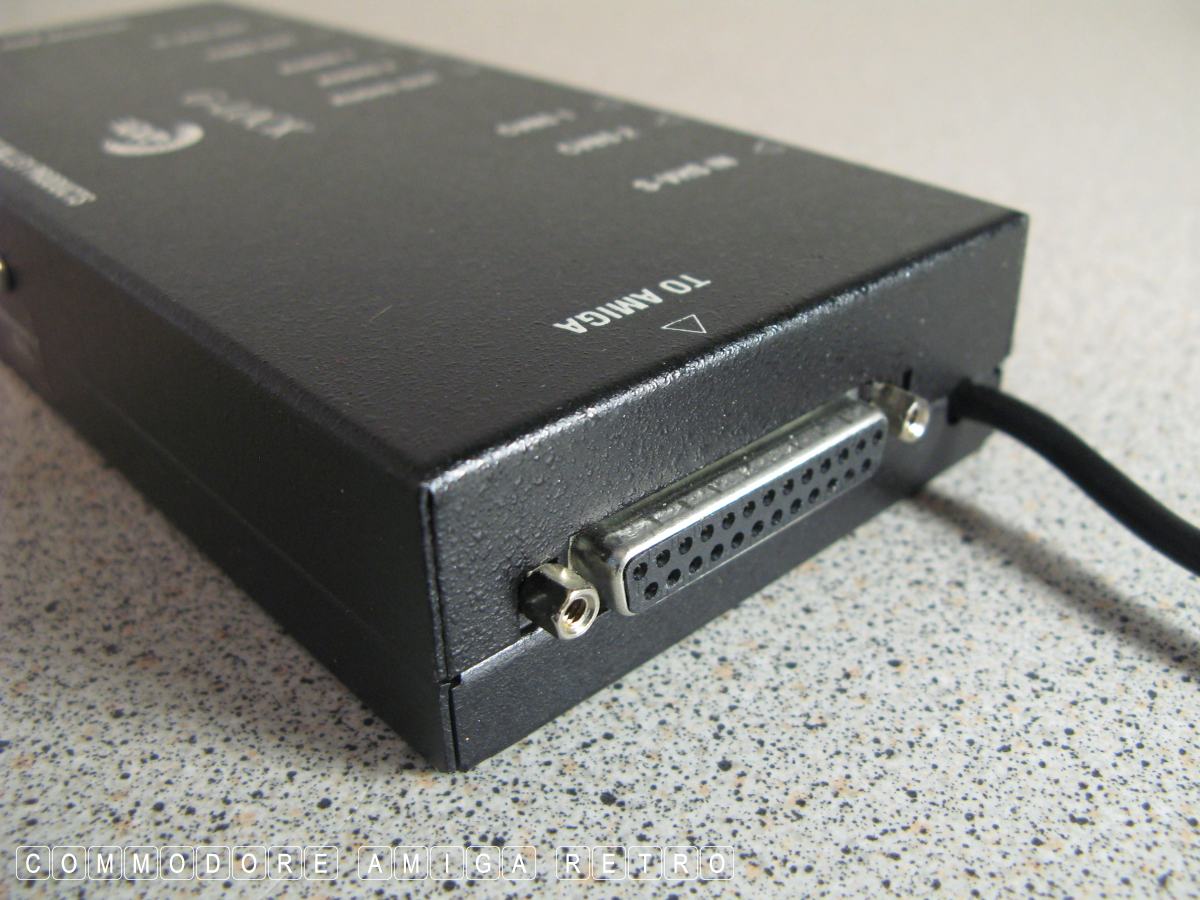

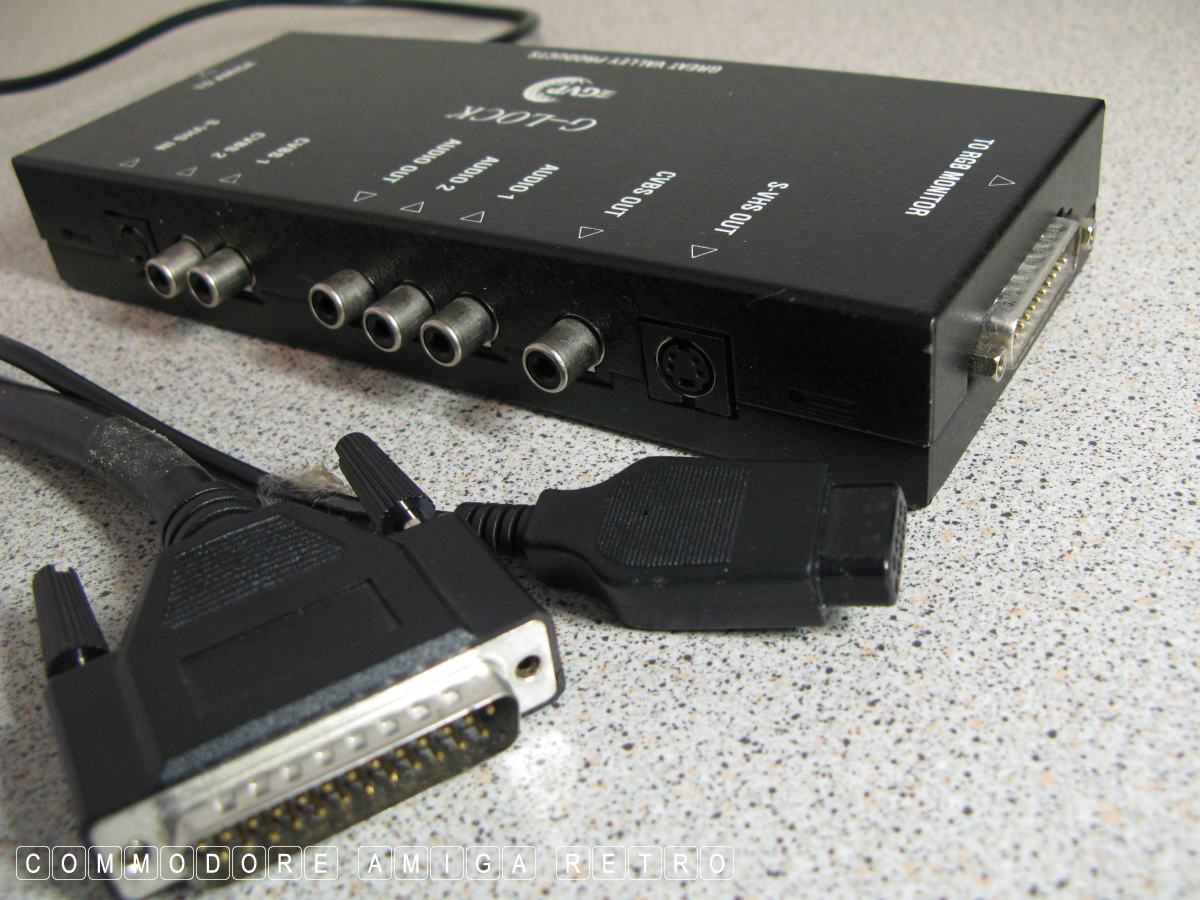

Actually connects to the joystick port

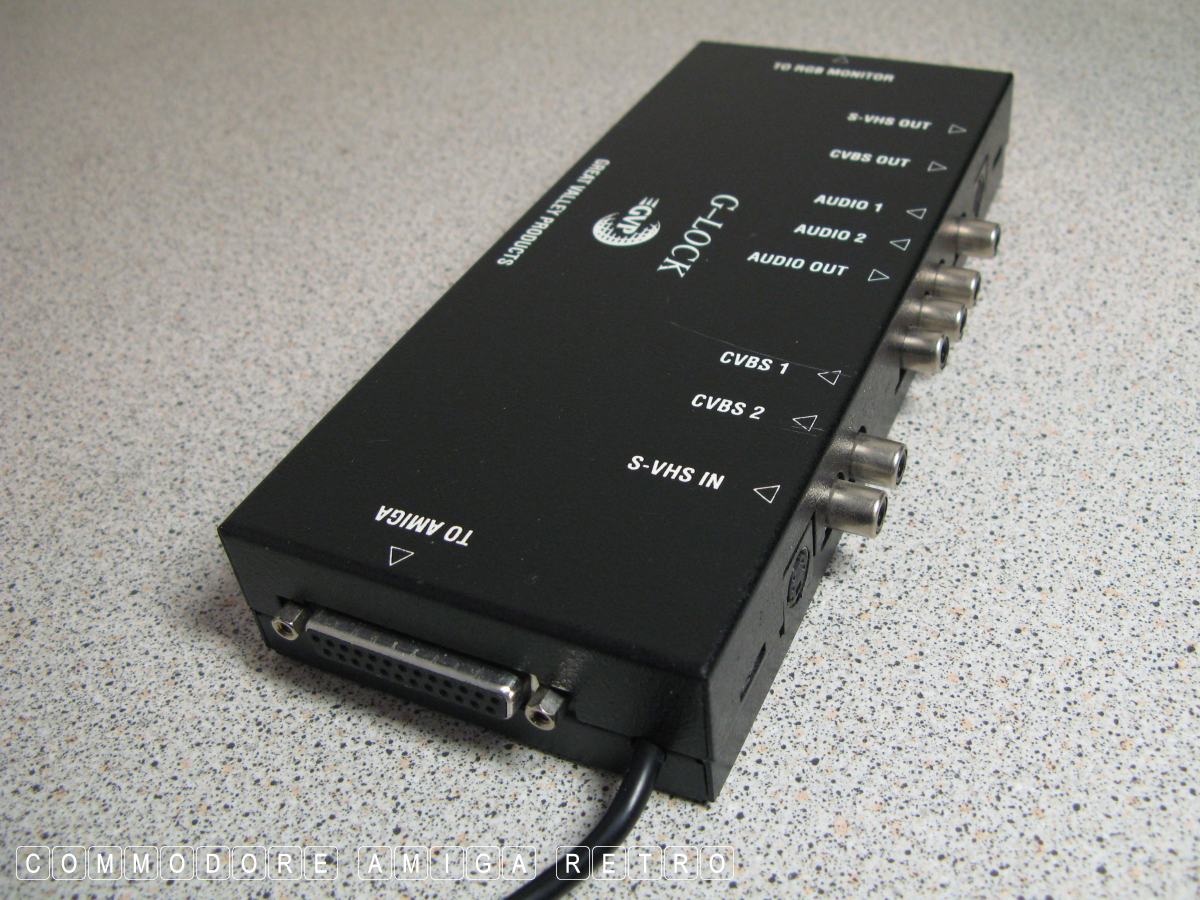

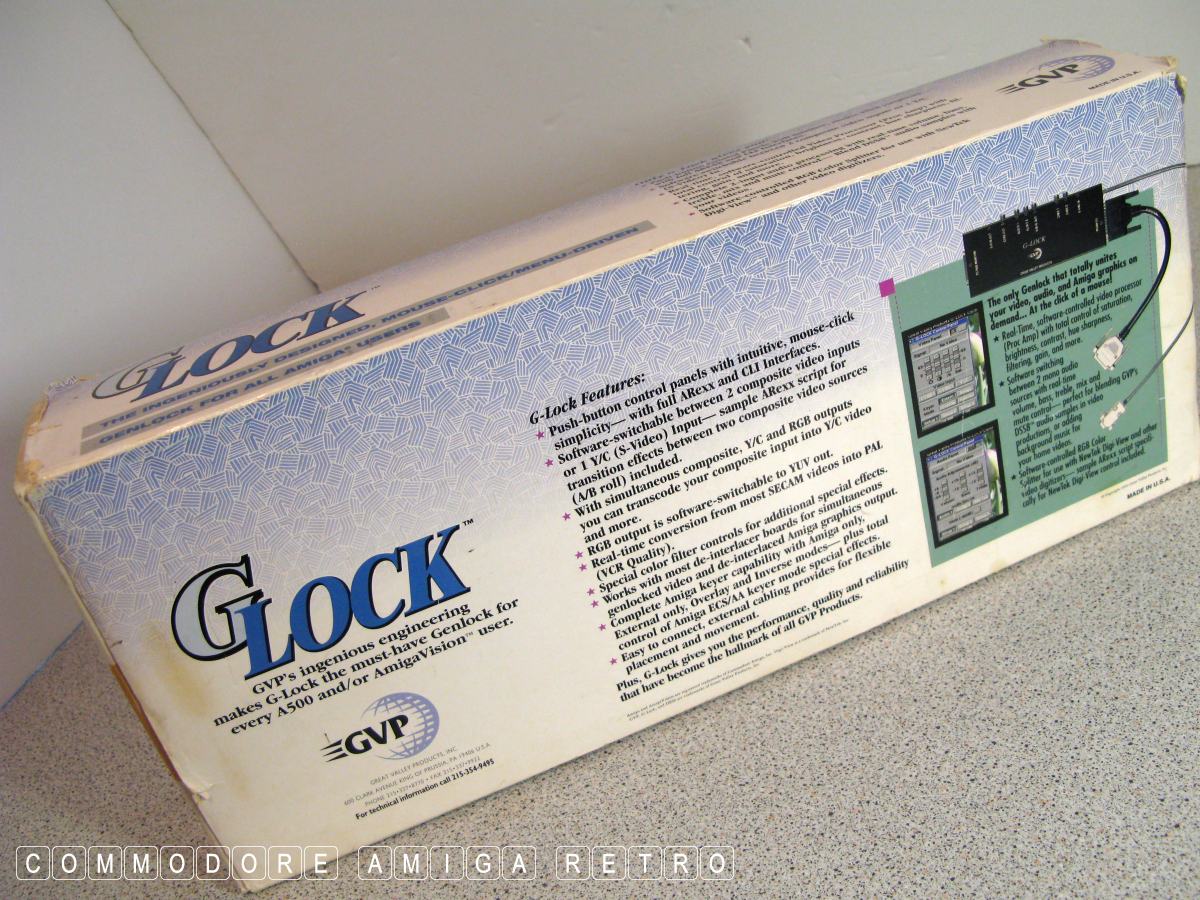

The G-Lock High Performance Genlock from GVP (1992 )
