A3000UX

Damaged Motherboard

A3000UX with missing daughterboard. Although power
works, floppy drive not attached and no hard drive
Also the unit has no tape drive or Ethernet card
which came with the A3000UX

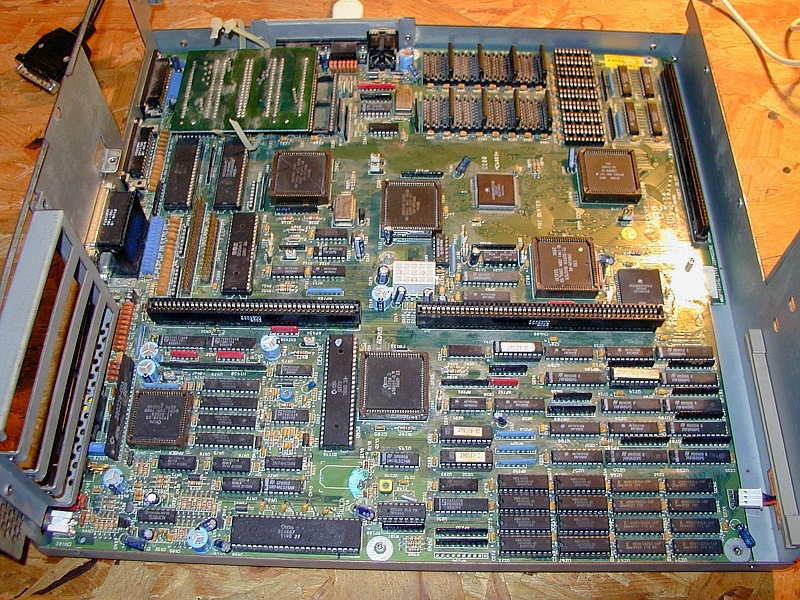

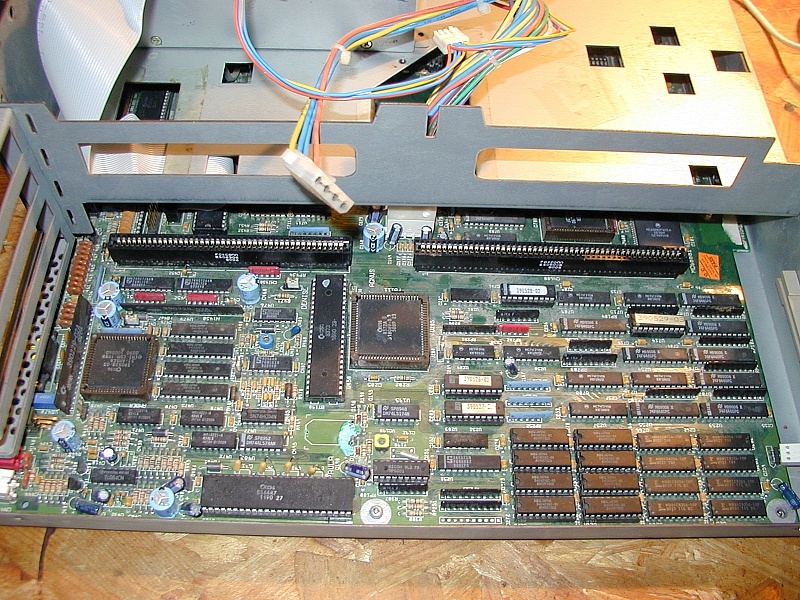

Motherboard exposed and other than battery damage
no other visible damage. There appears a component
missing from above the processor as the straps have
been cut

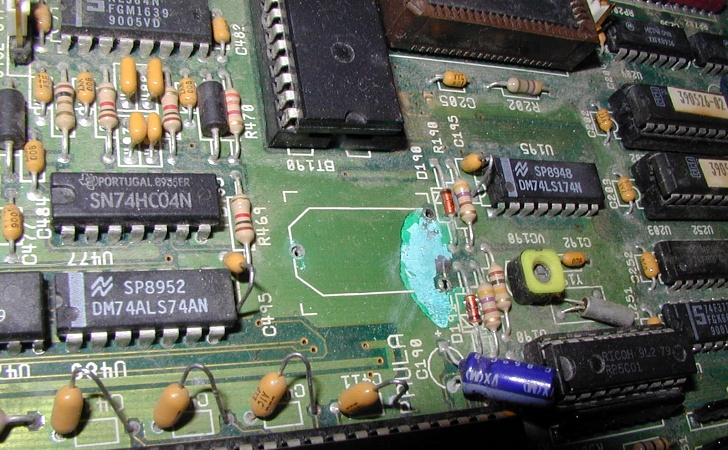

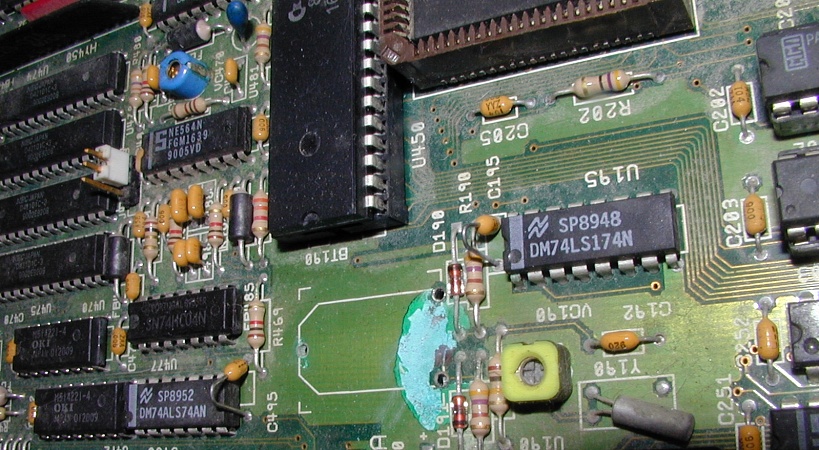

That battery damage close up. Looks like someone
has had a go fixing. No idea how

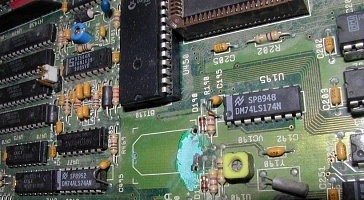

Another close up of that battery damage

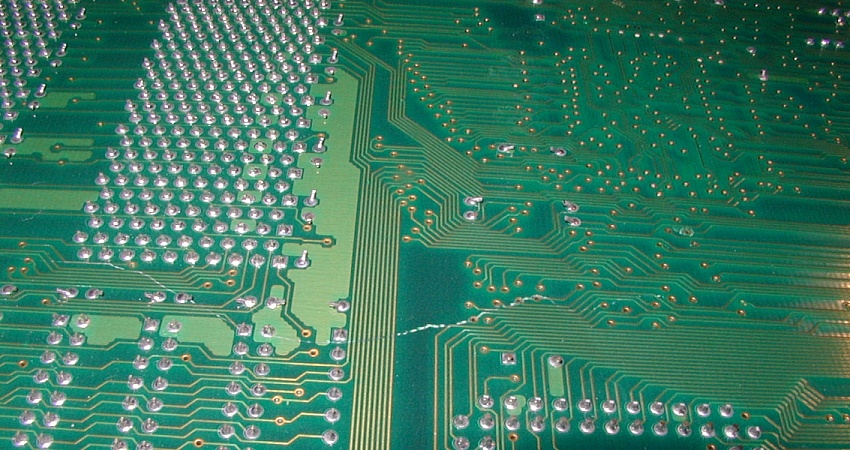

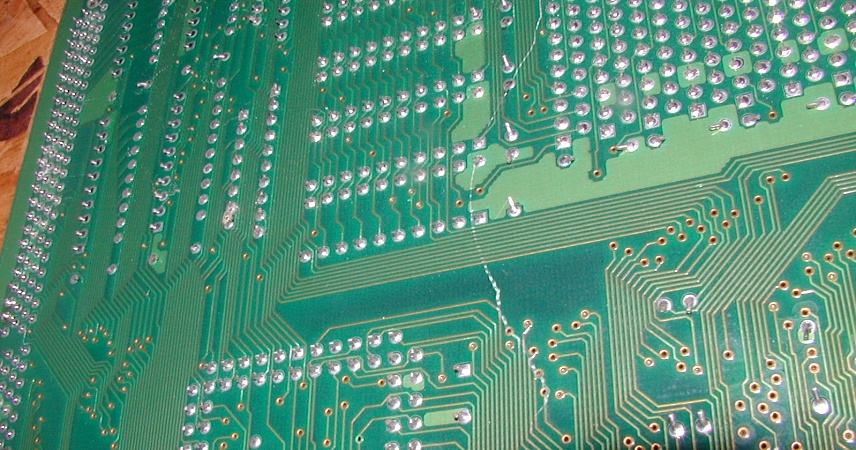

Disaster Very large scratch across rear of
motherboard. At first I thought it was due to a misplaced
screw under board, but too long. This was left on
a worktop and something dropped on it. It may be a
chucked mobo, and never intended for re-use

Another image of scratch. ' Coopers ducks ' sadly
In other words it has had it..

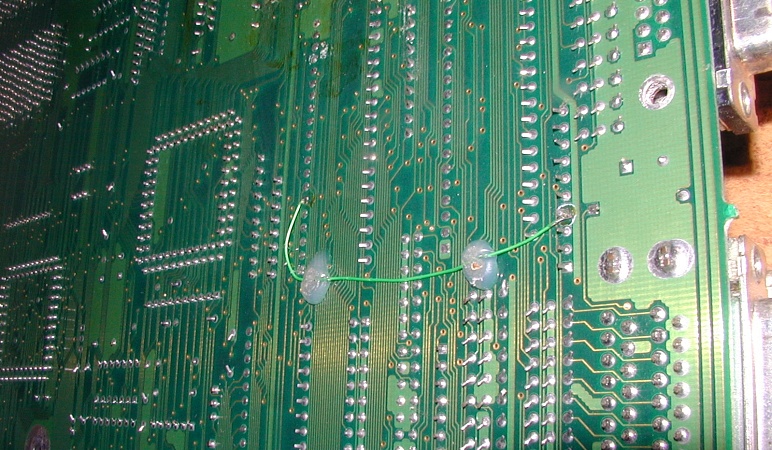

Some kind of mod to the board. No idea.

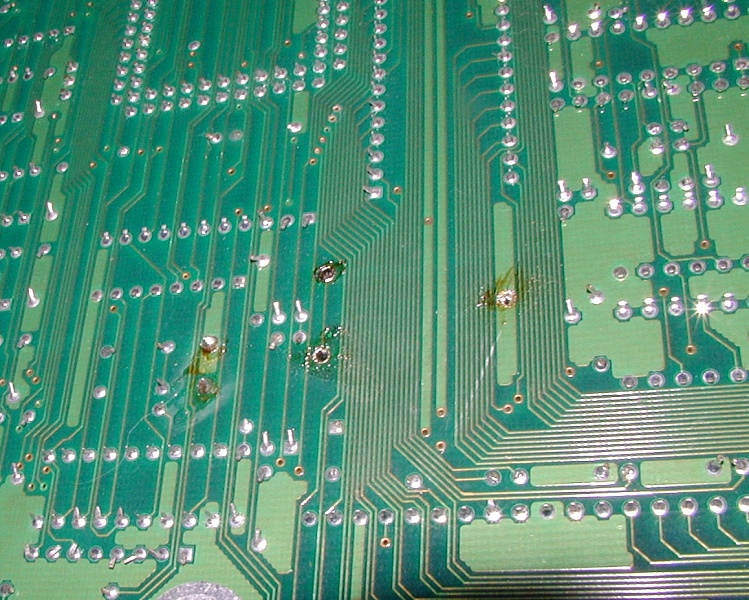

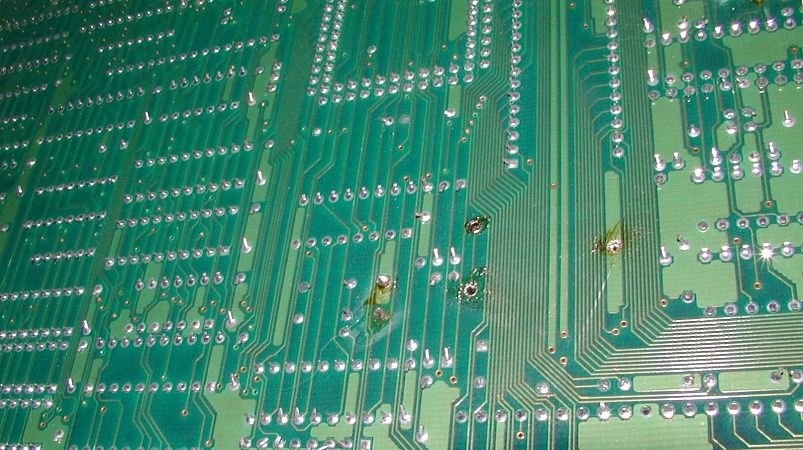

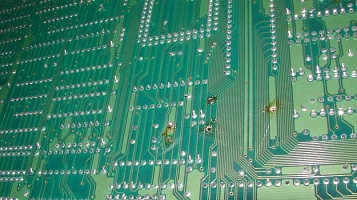

Battery damage from the underside. Does not appear
to be that extensive. Academic now though.

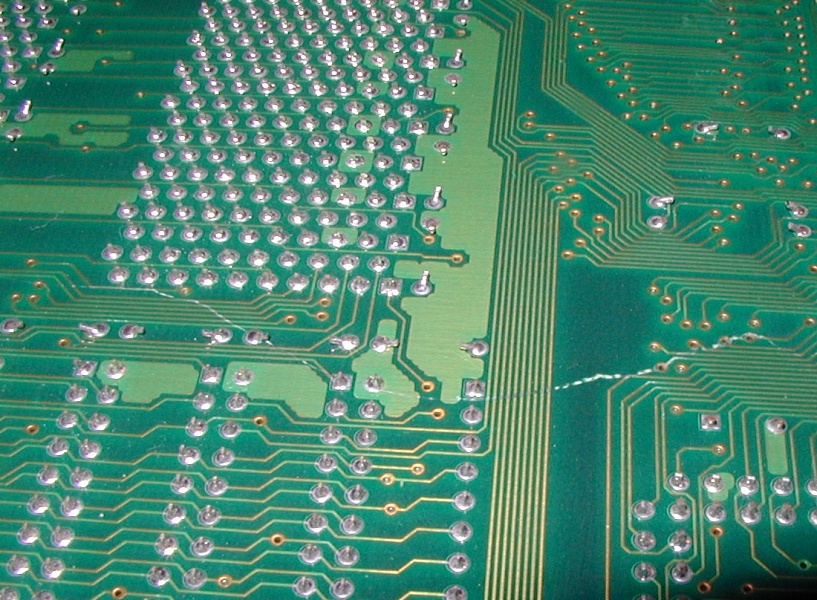

Larger image of the scratch

Larger image of the battery damage

Sadly no hope me thinks. I will try and replace
That should take a while
