Entry 23rd December 2019: Post 02: Amiga 1200 - Buffered Interface.

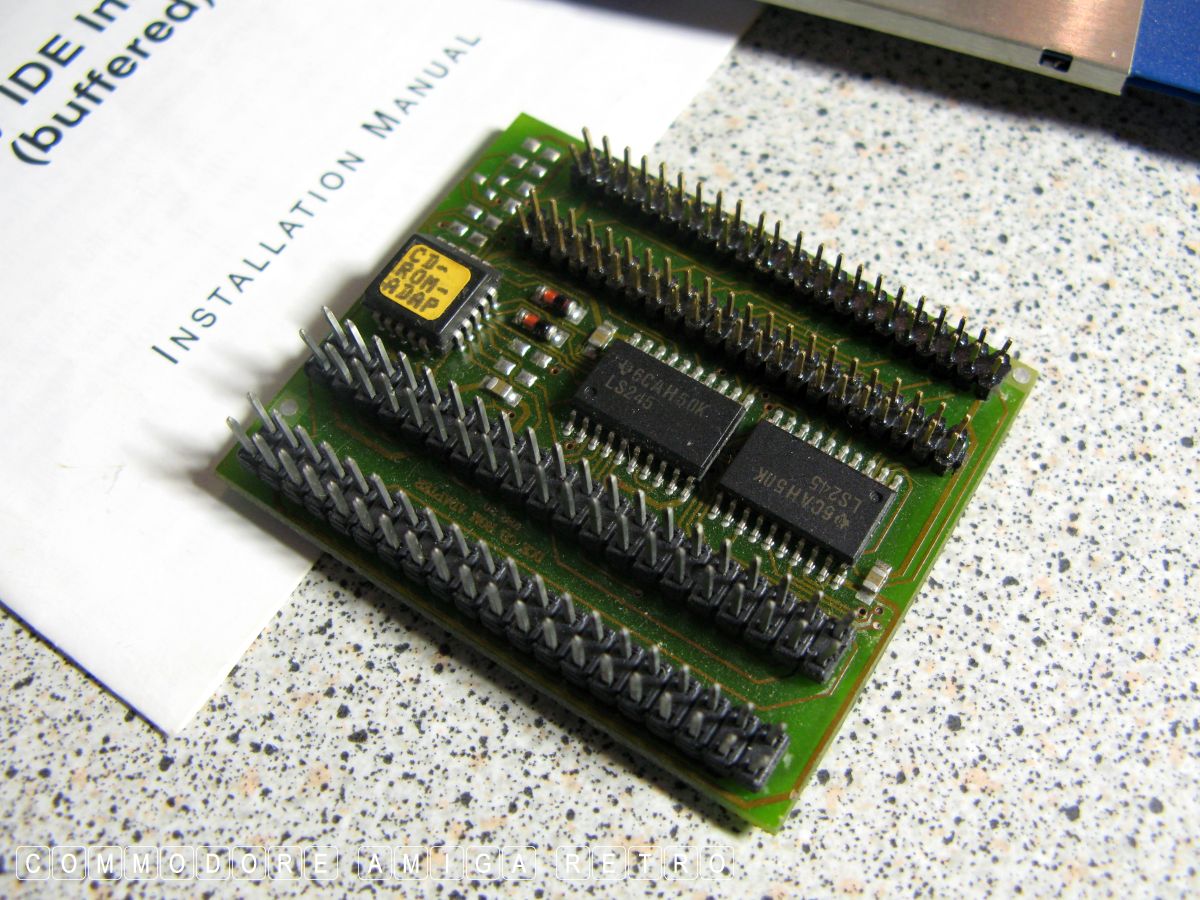

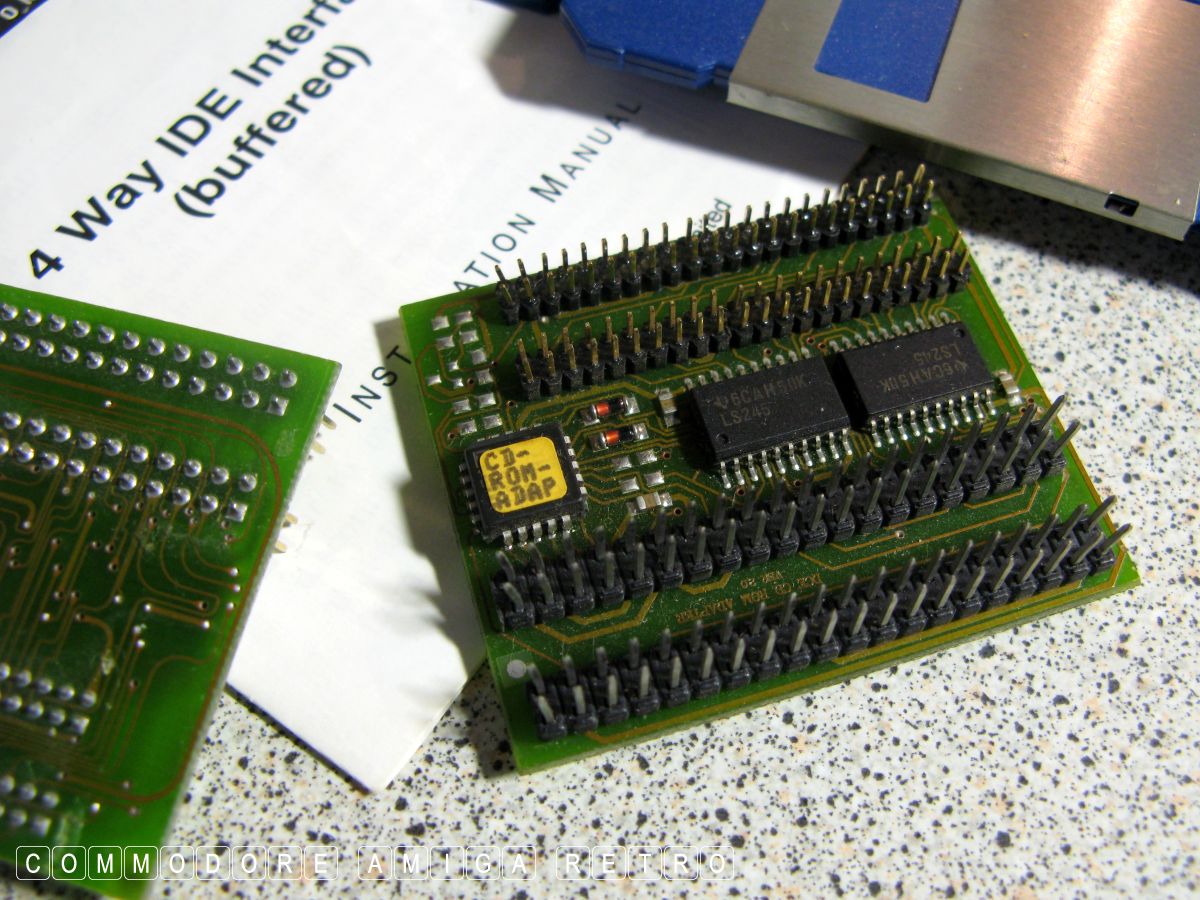

Amiga 1200 - Buffered Interface.

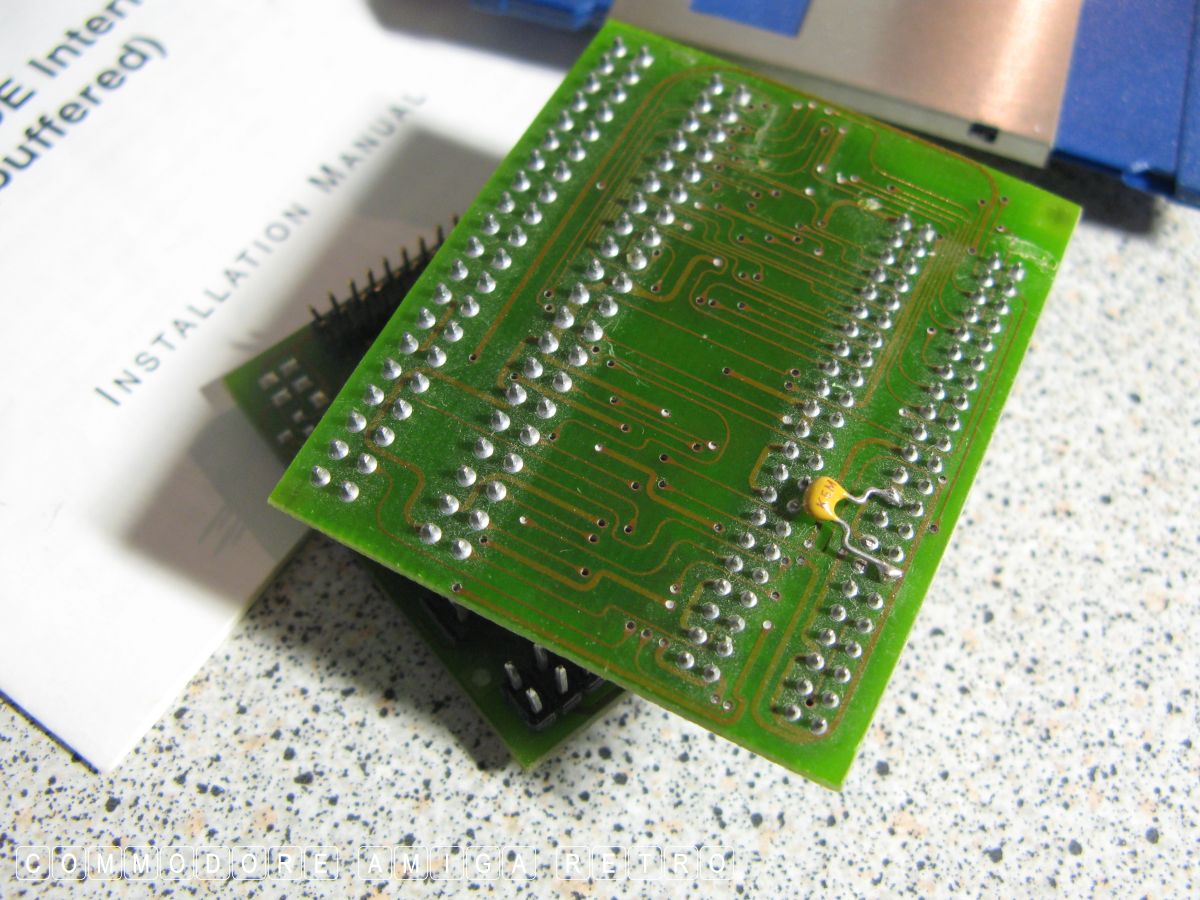

My preferred weapon of choice when attaching various devices to
the A1200 is the handy buffered interface. I have featured this

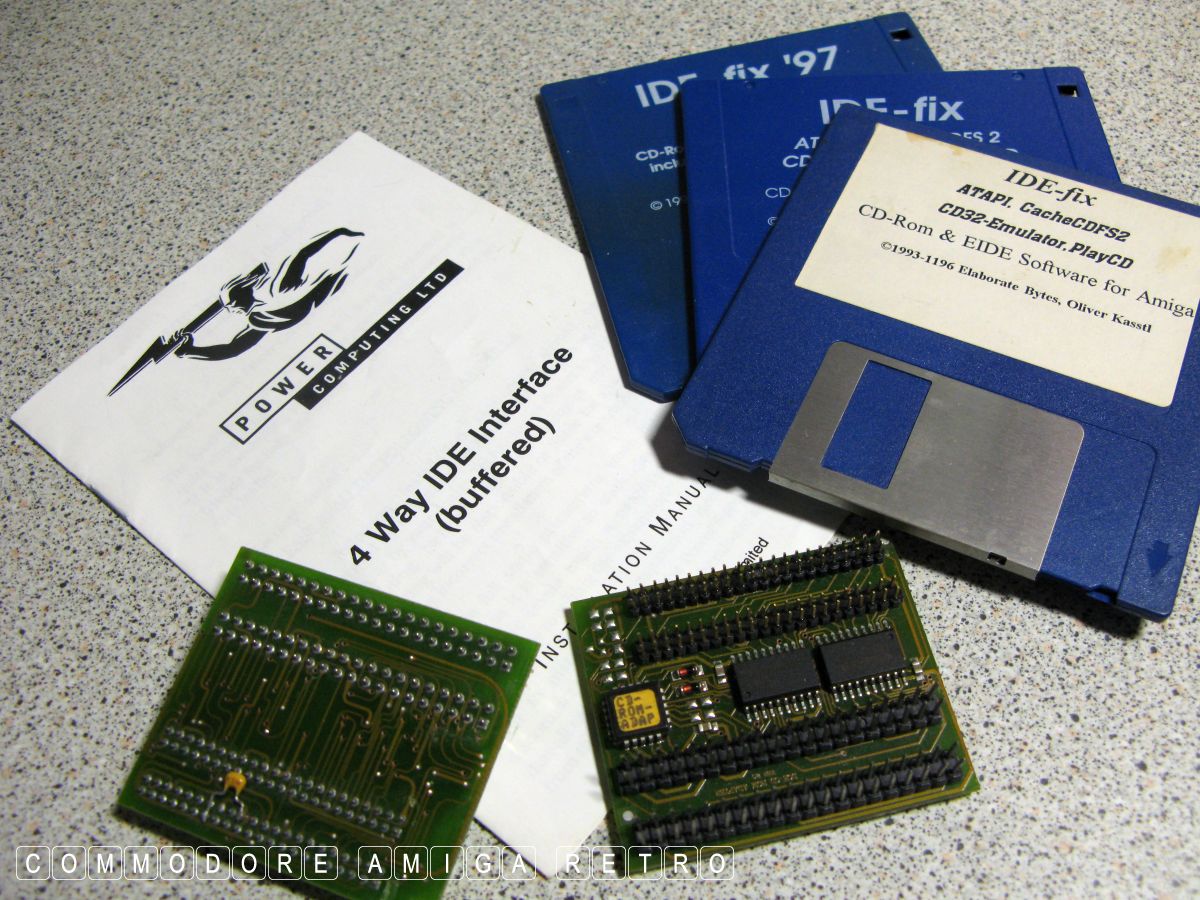

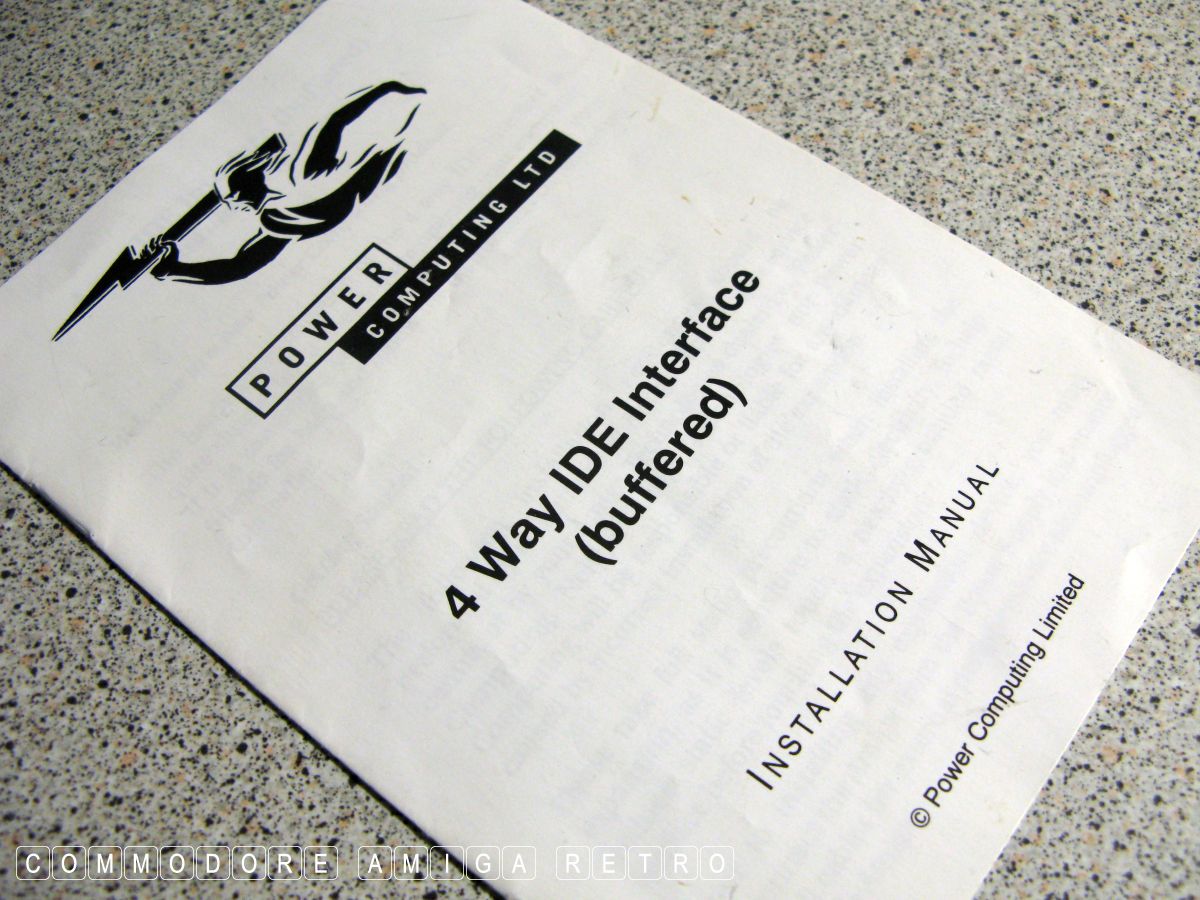

little baby before. Just that I had the Power Computing small
manual to hand when I was featuring the Power Flyer so thought I
would add some pics here. I have a bucket load of these things
and use quite a few in computers.

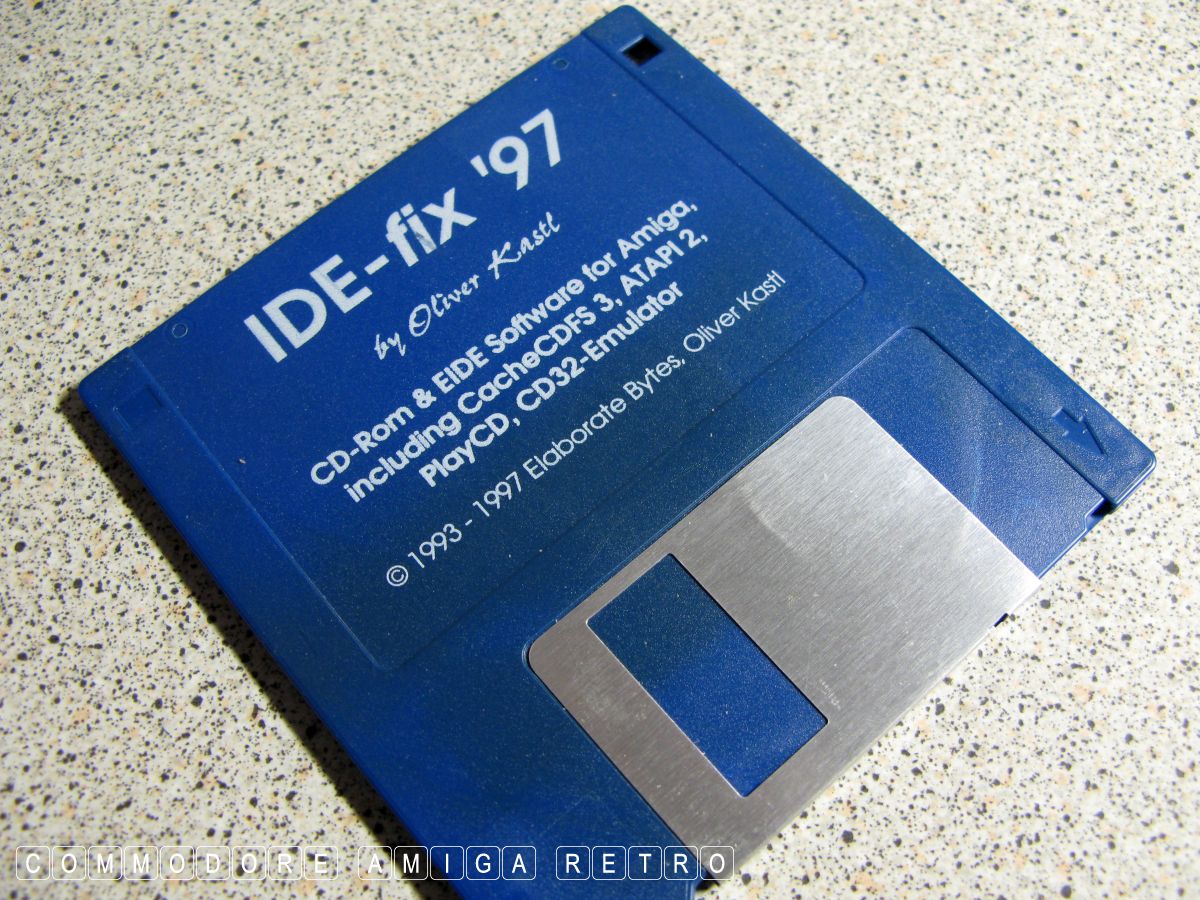

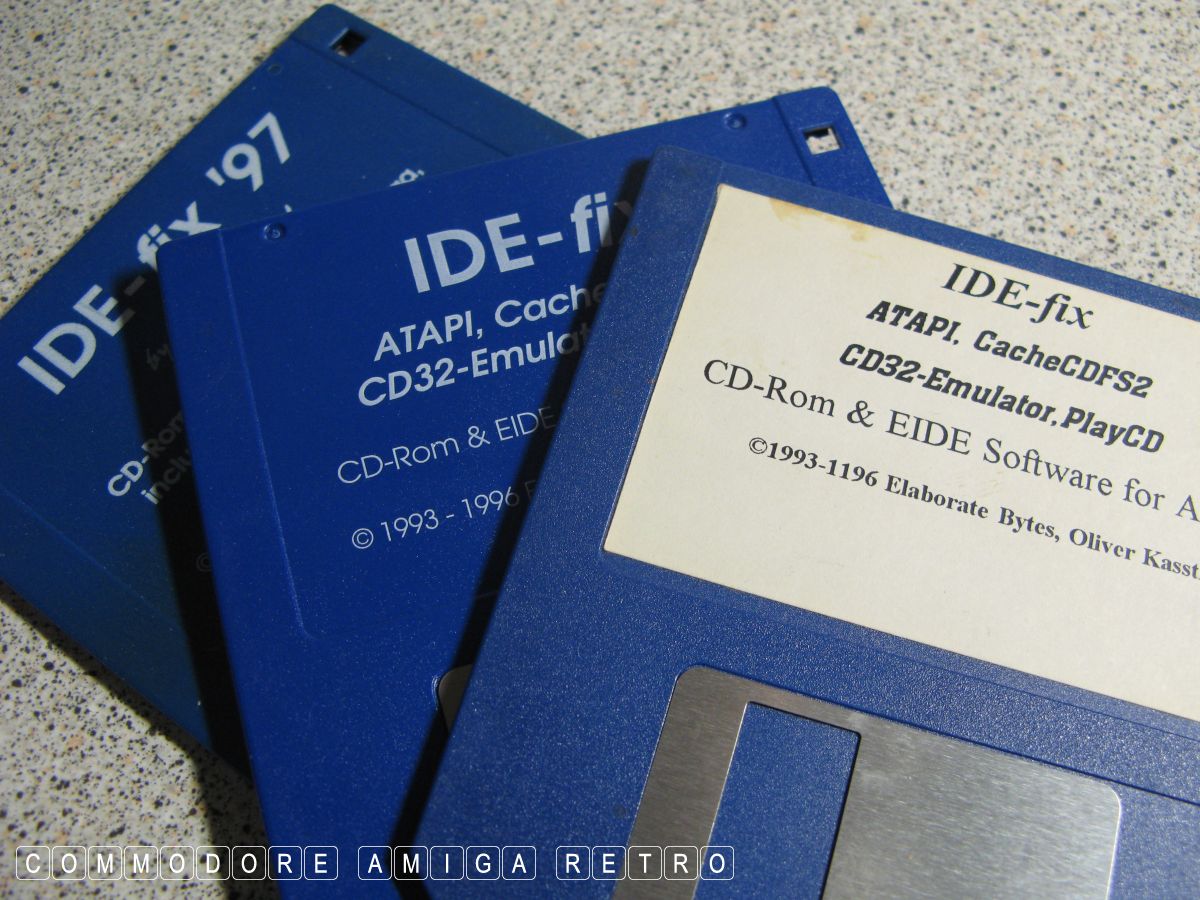

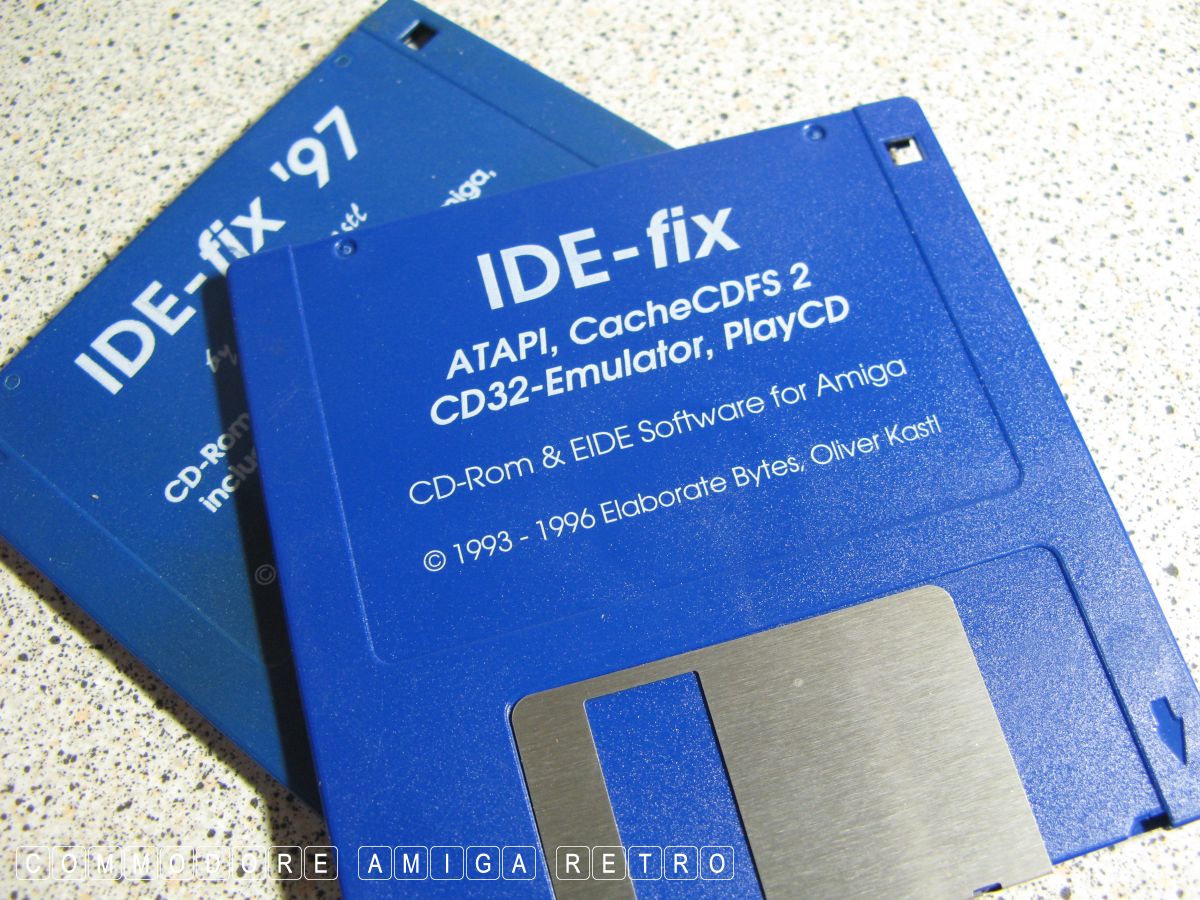

Essentially you need IDEFix'97 which makes the whole install
process of additional IDE drives, CD-ROMs etc a piece of *iss.

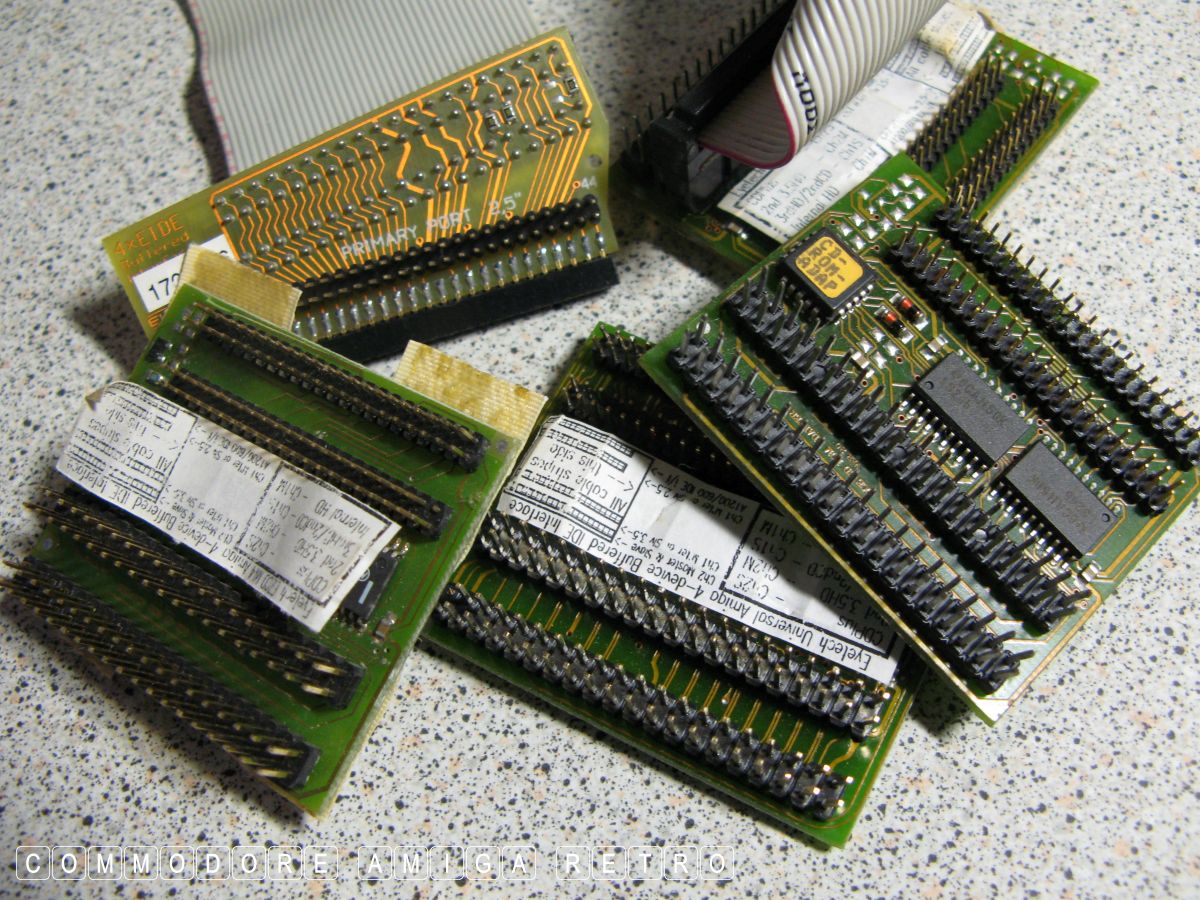

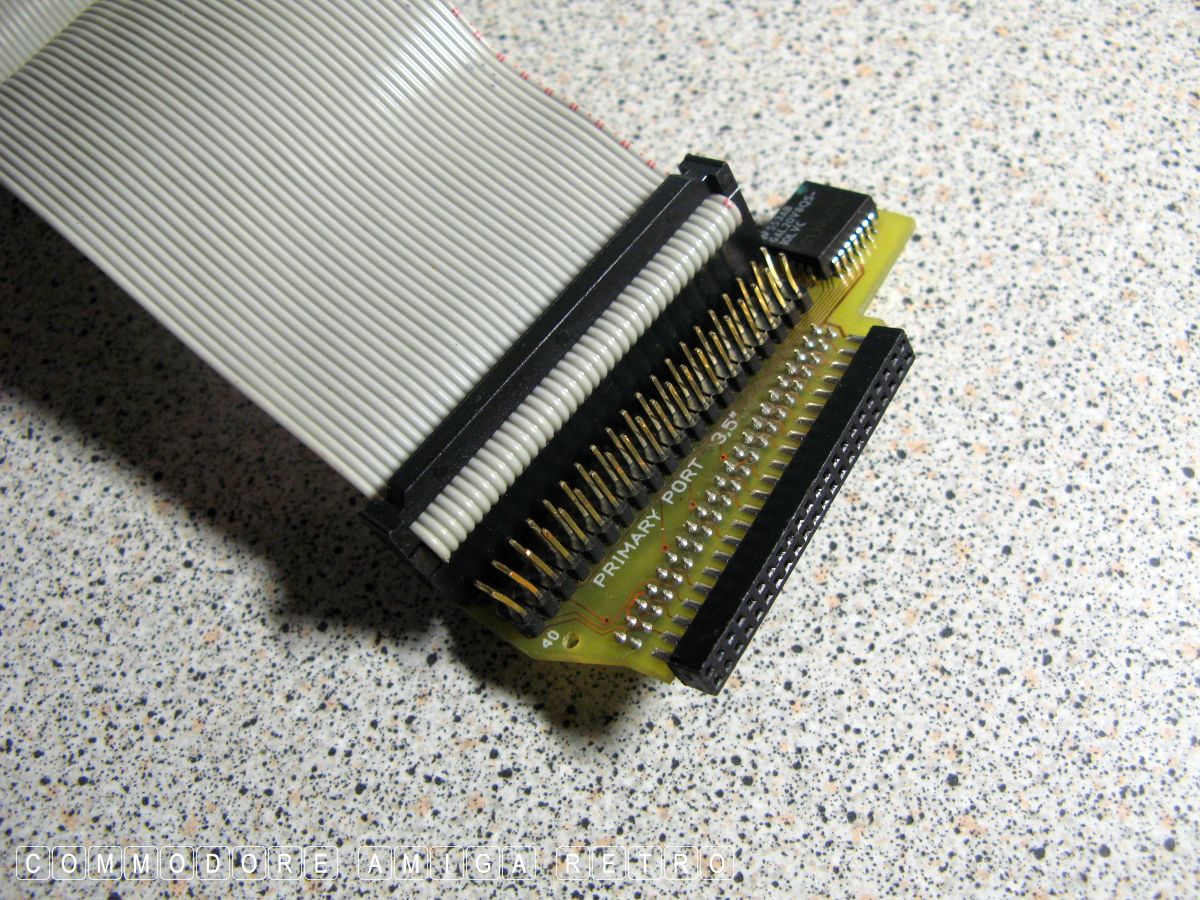

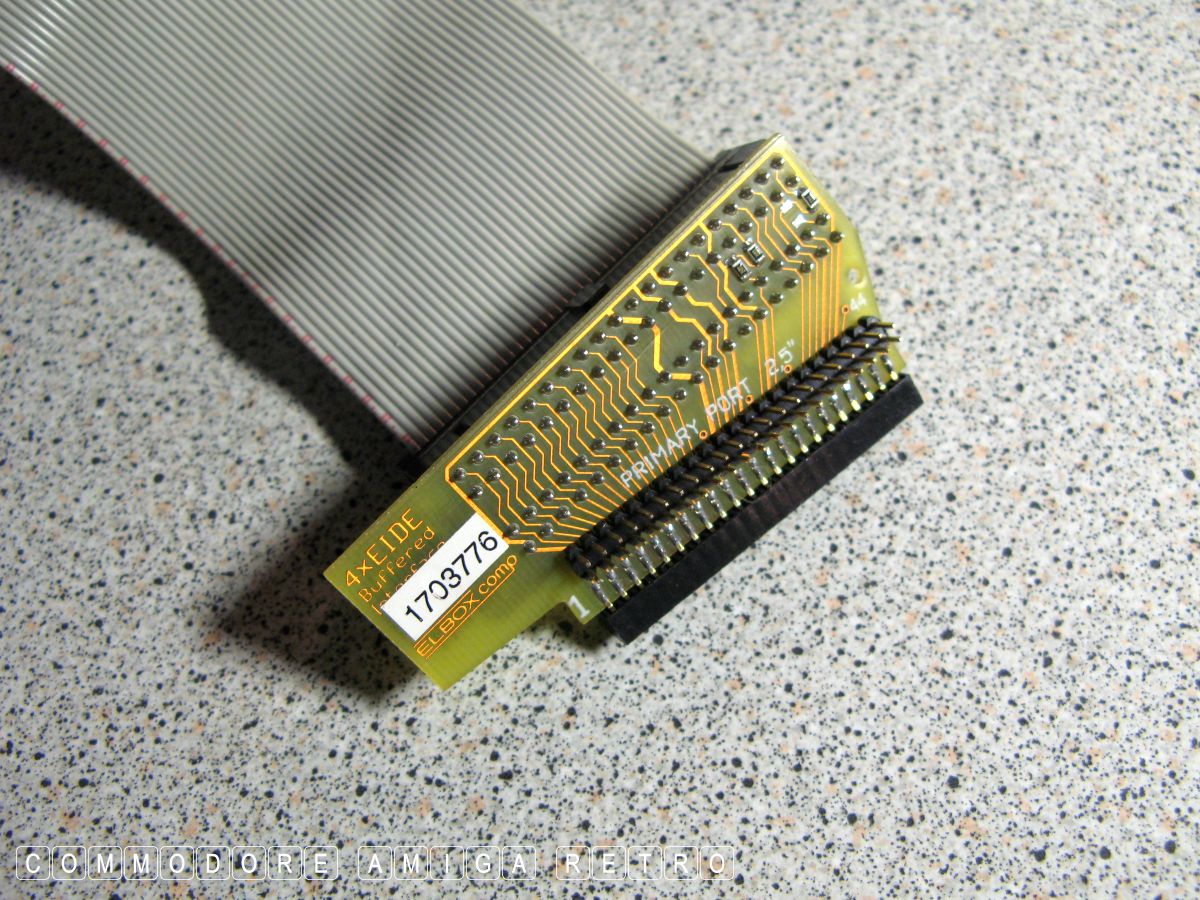

The buffered interface did come in a variety of shapes and
sizes. I have quite an elaborate one fitted to my A4000T plus
the Ateo Concepts 4000/040 in the tower.

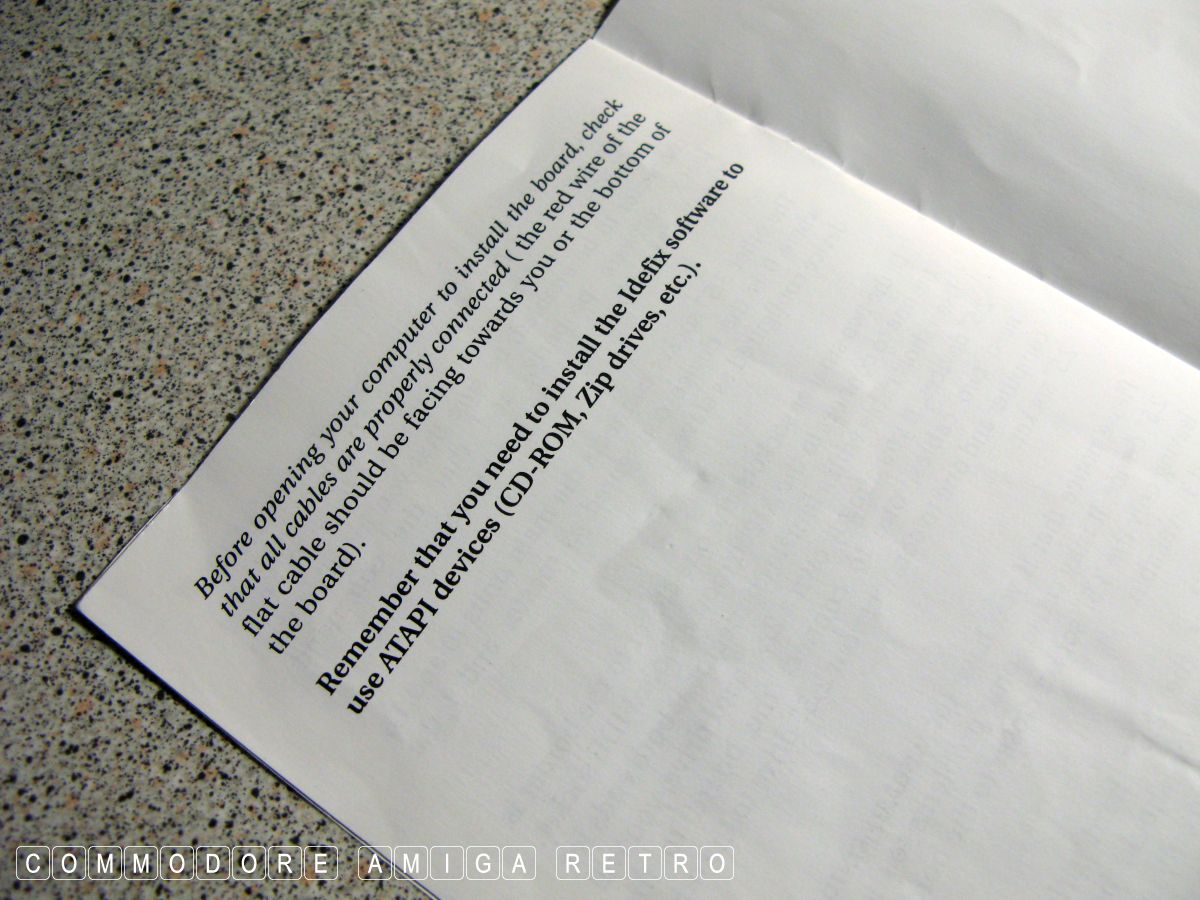

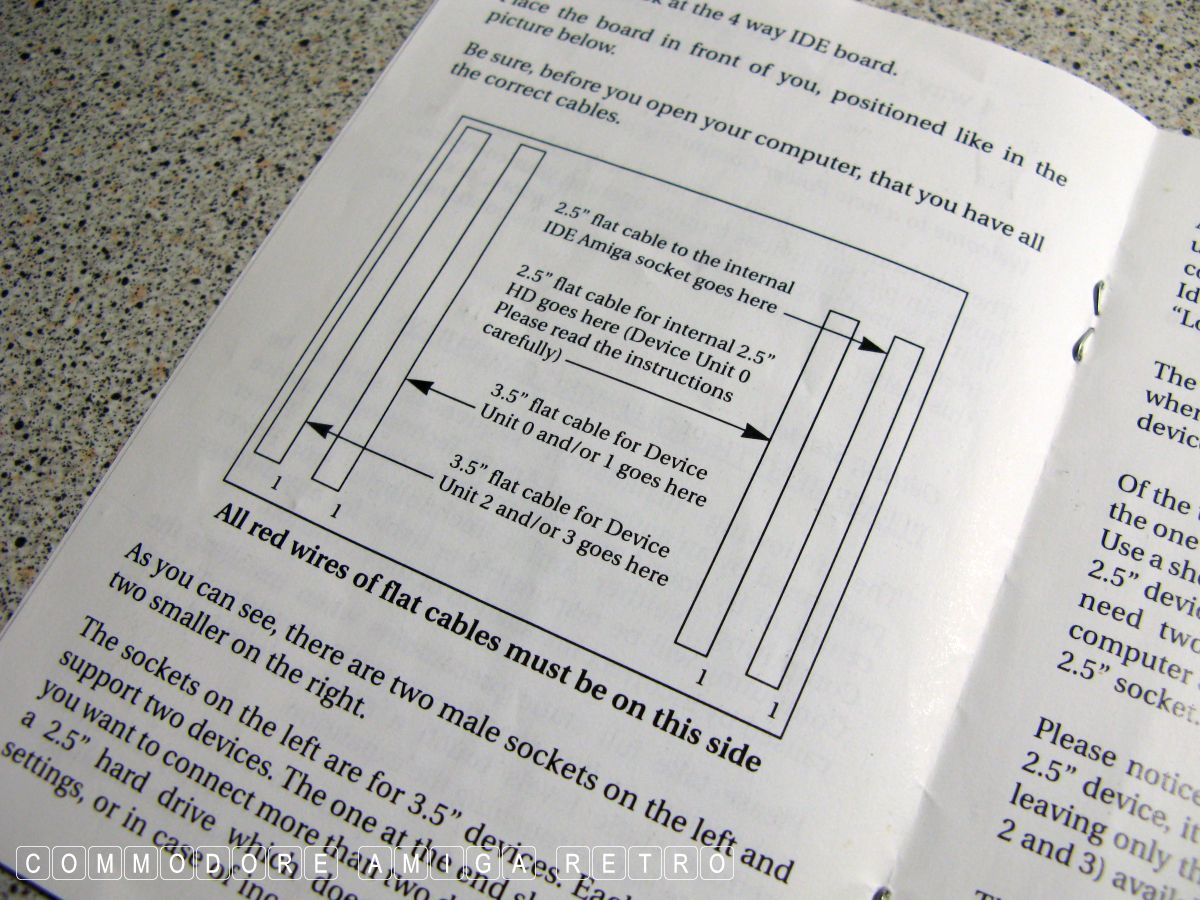

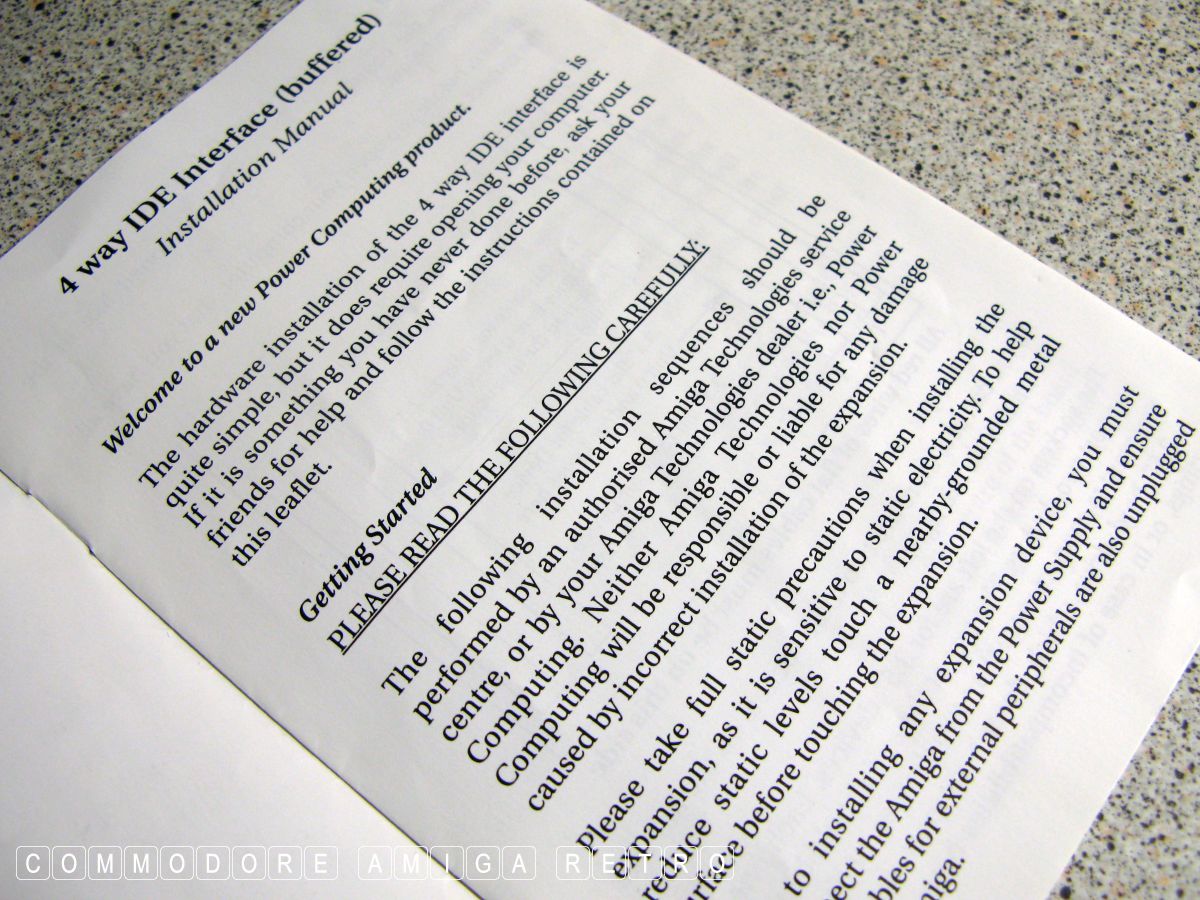

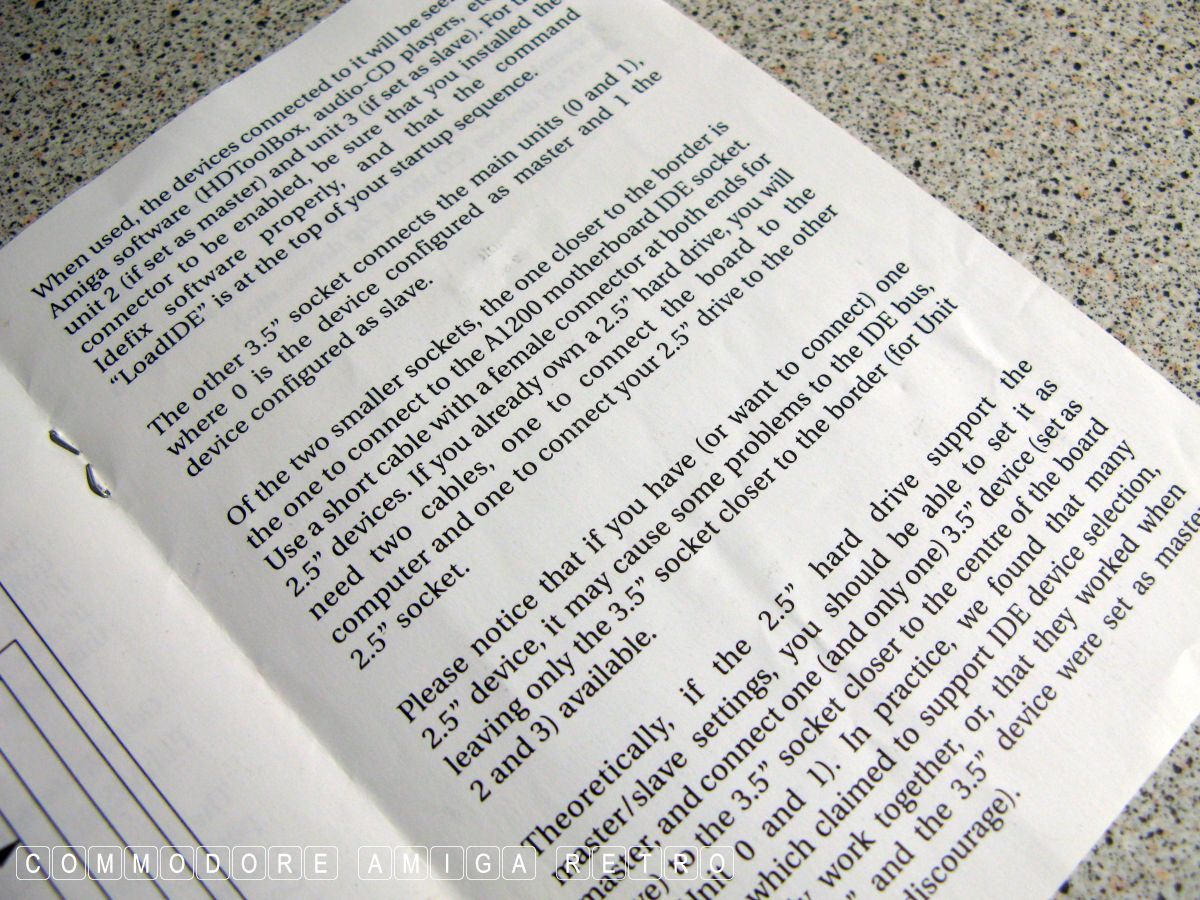

PS If you scan the archive you will find the PDF of the guide
for installing the controller/interface.
