ScuzzBlog: Diaries November 2017

Entry 9th November 2017: Post: 3

The Acid Test - Part 3

On the Plus side that is four down and not very many to go. I do not
own that many Amiga Plus models so checking them over shouldn't be
too hard a struggle.

Took me three days.. just don't know where the time went.

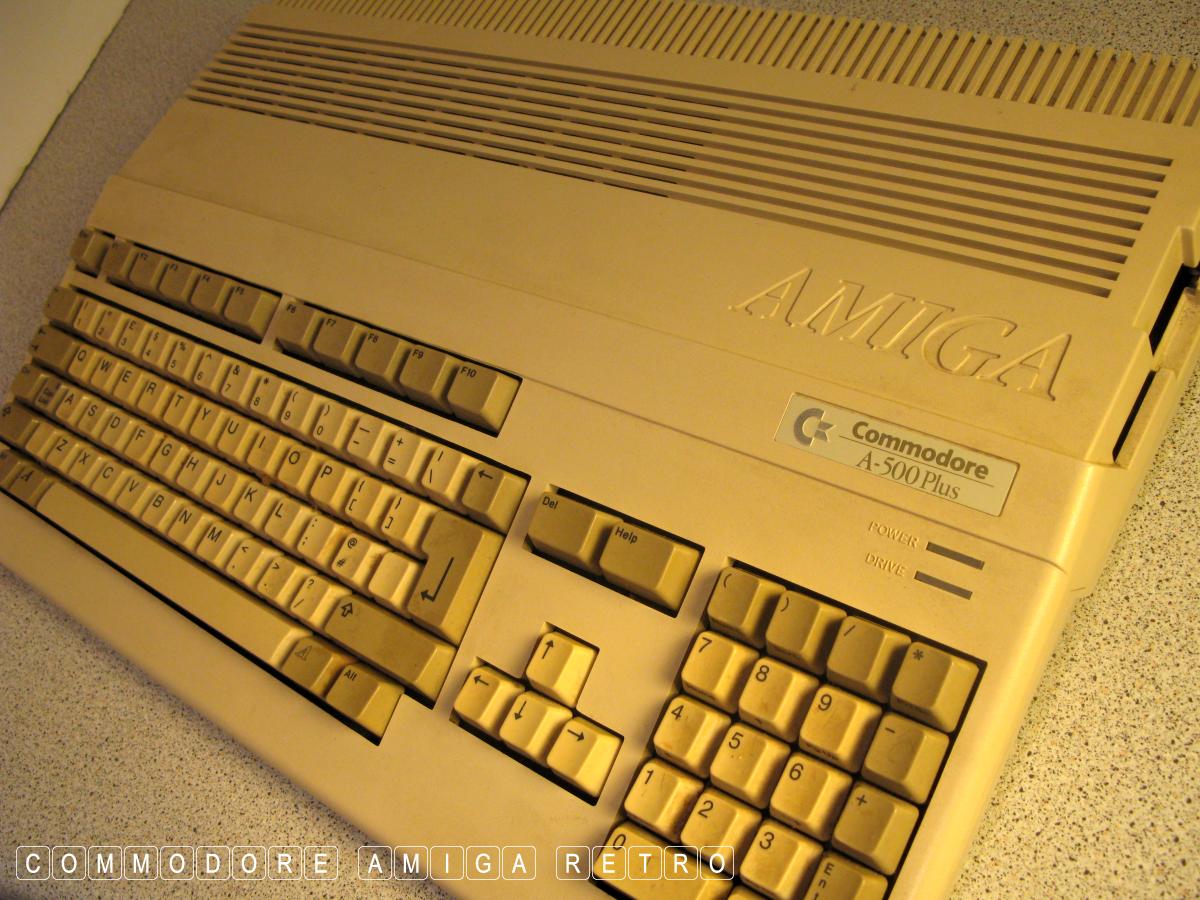

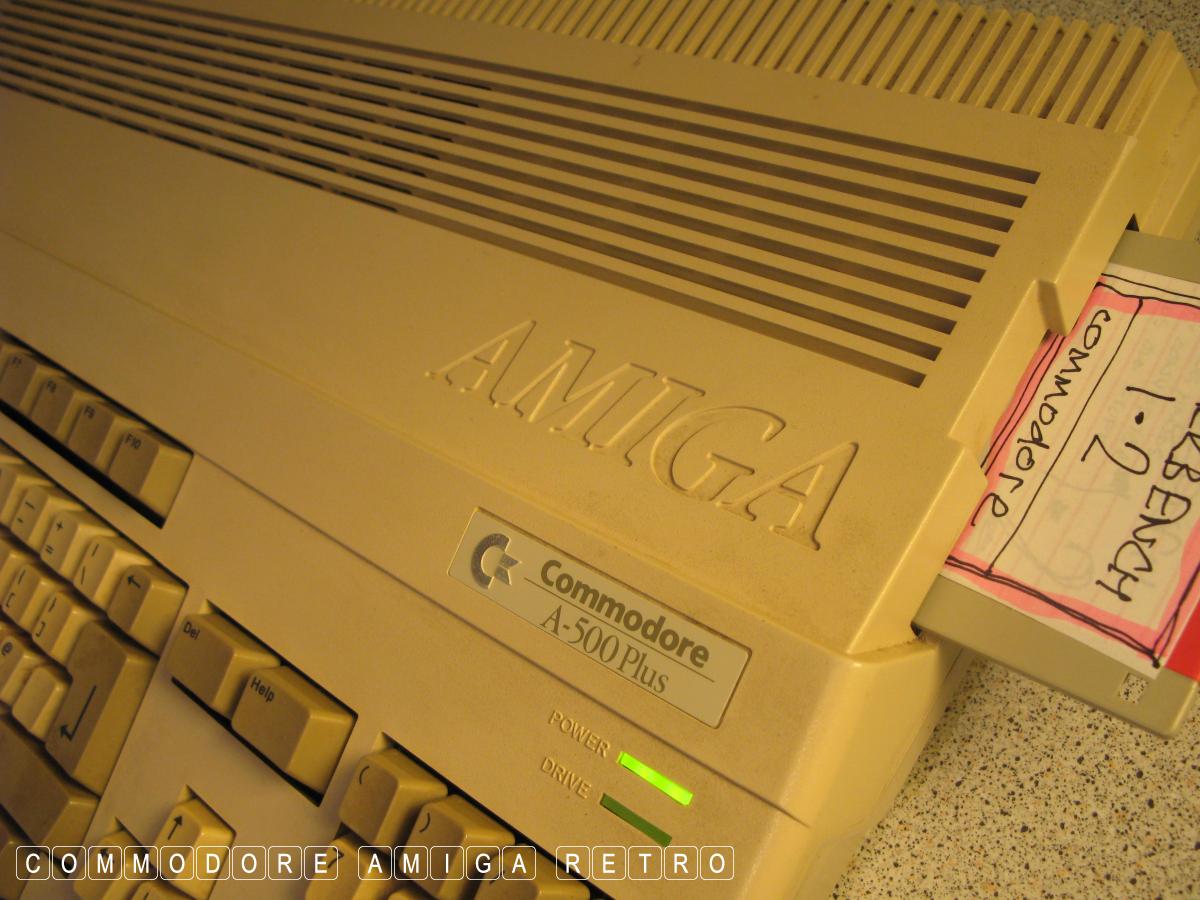

It says A-500Plus on the tin

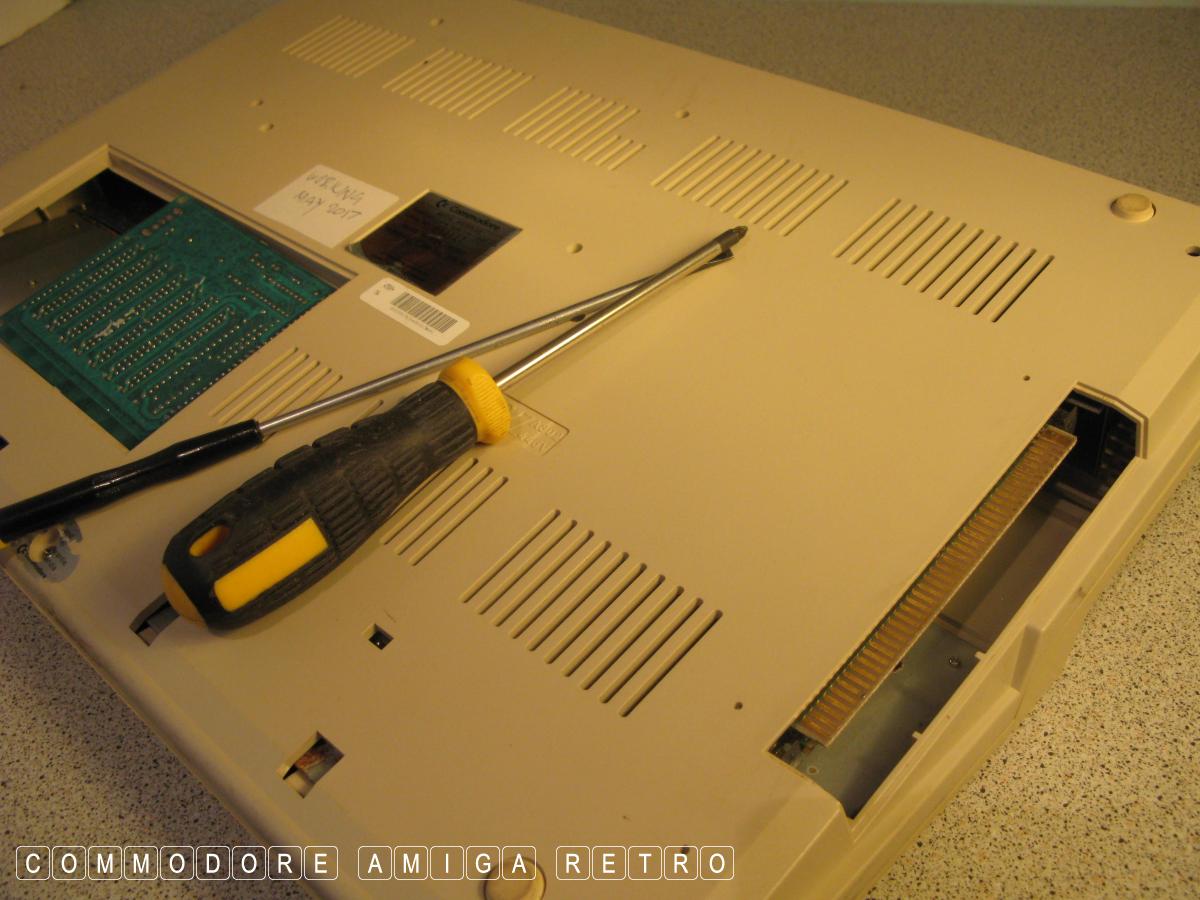

Slot cover and trap door removed

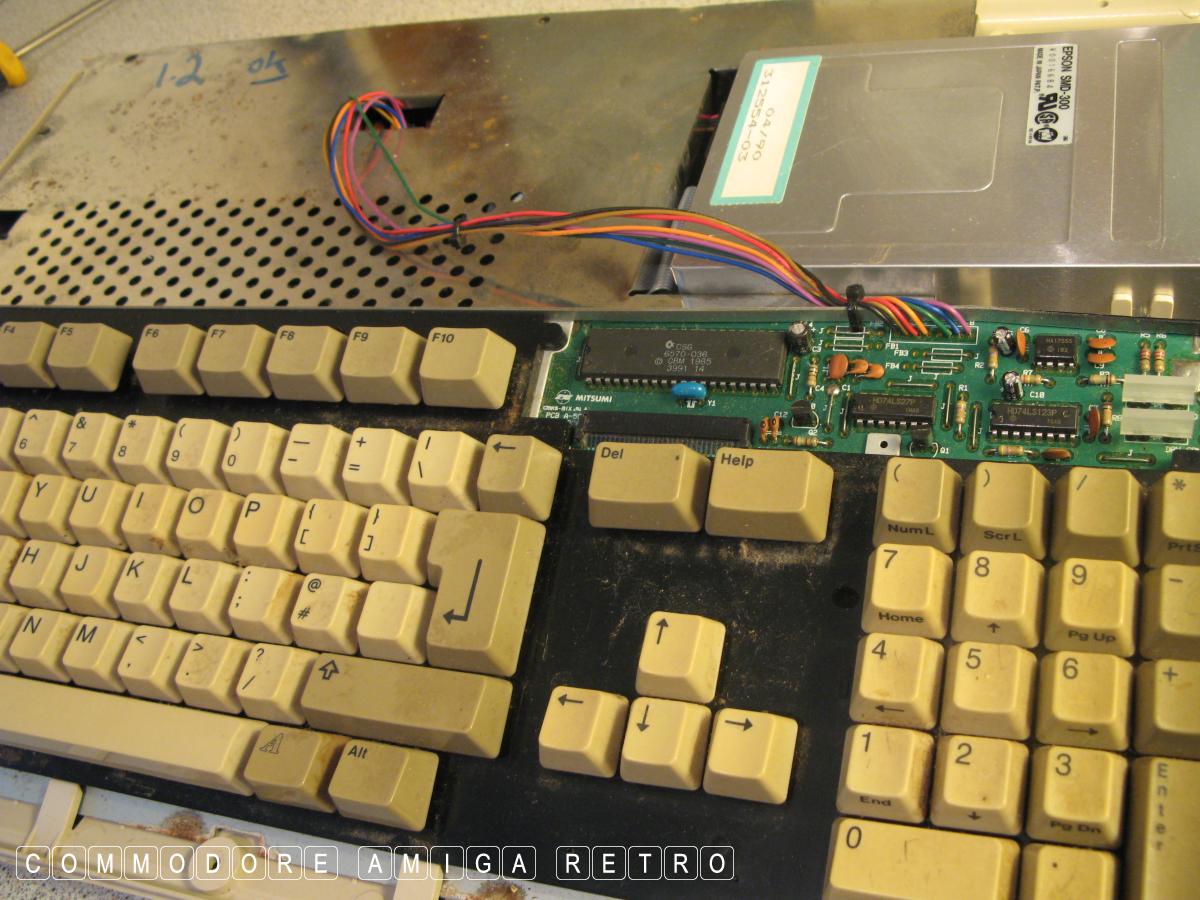

Usual dusty keyboard

No battery... and no Amiga 500Plus

This computer was a Plus in a previous
life but the battery damage was so bad
I swapped the board out for a basic 1.2 500

And an odd little beast she is too

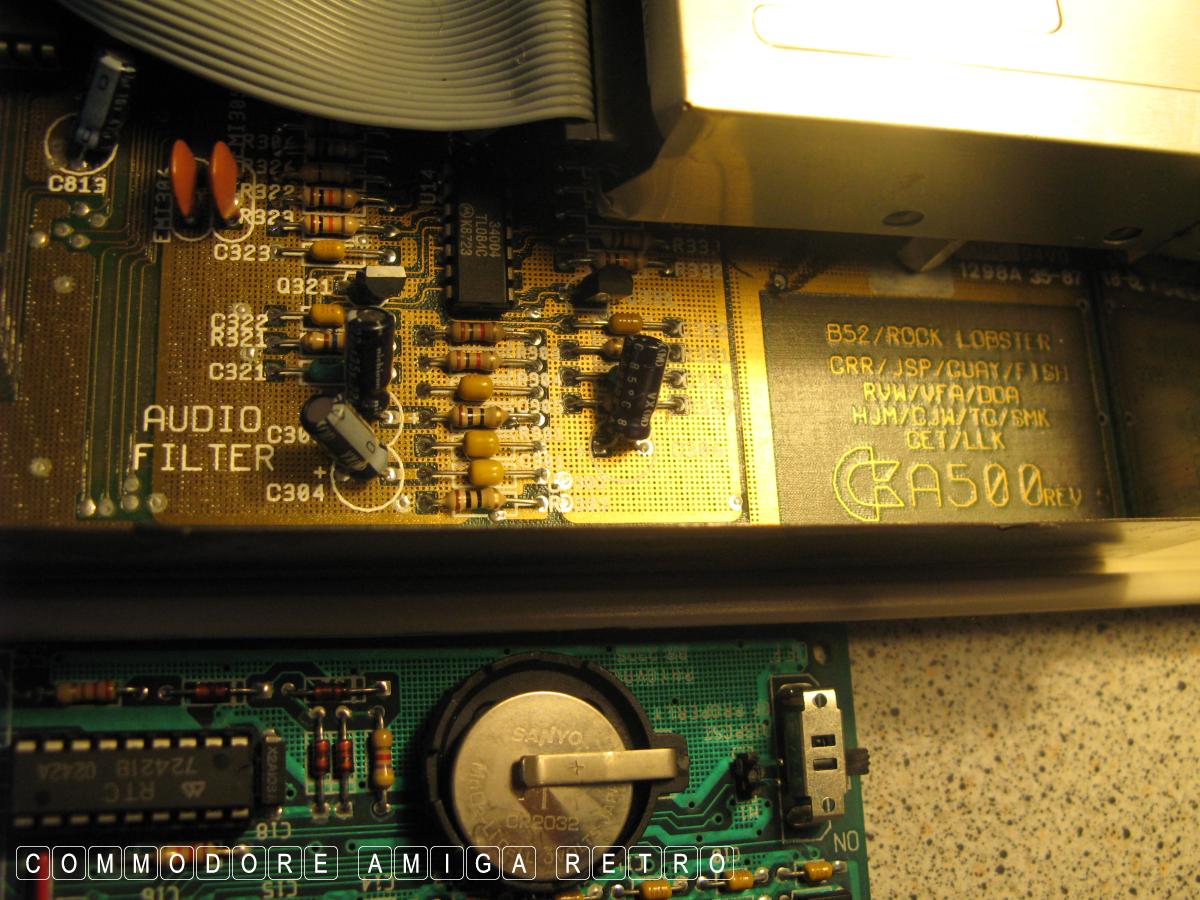

I mean what on earth is all this

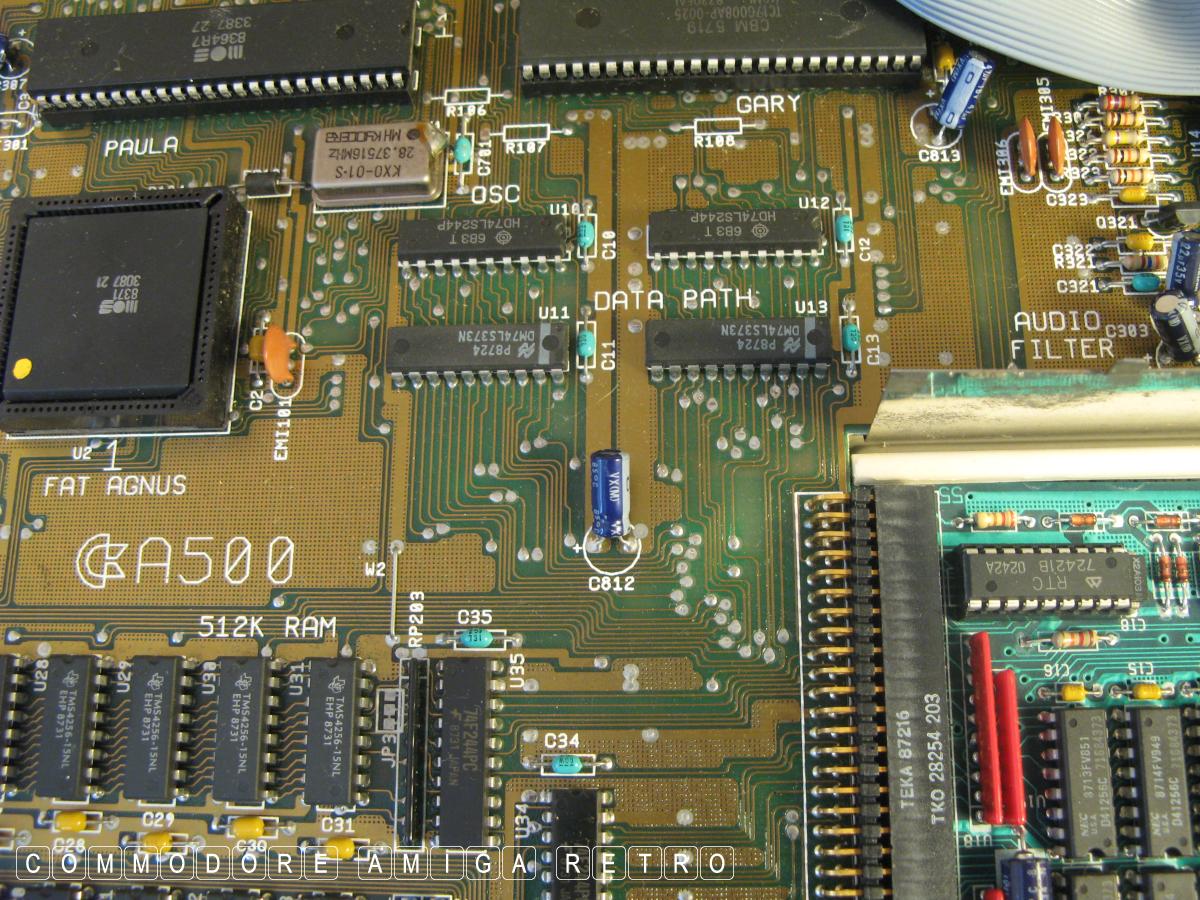

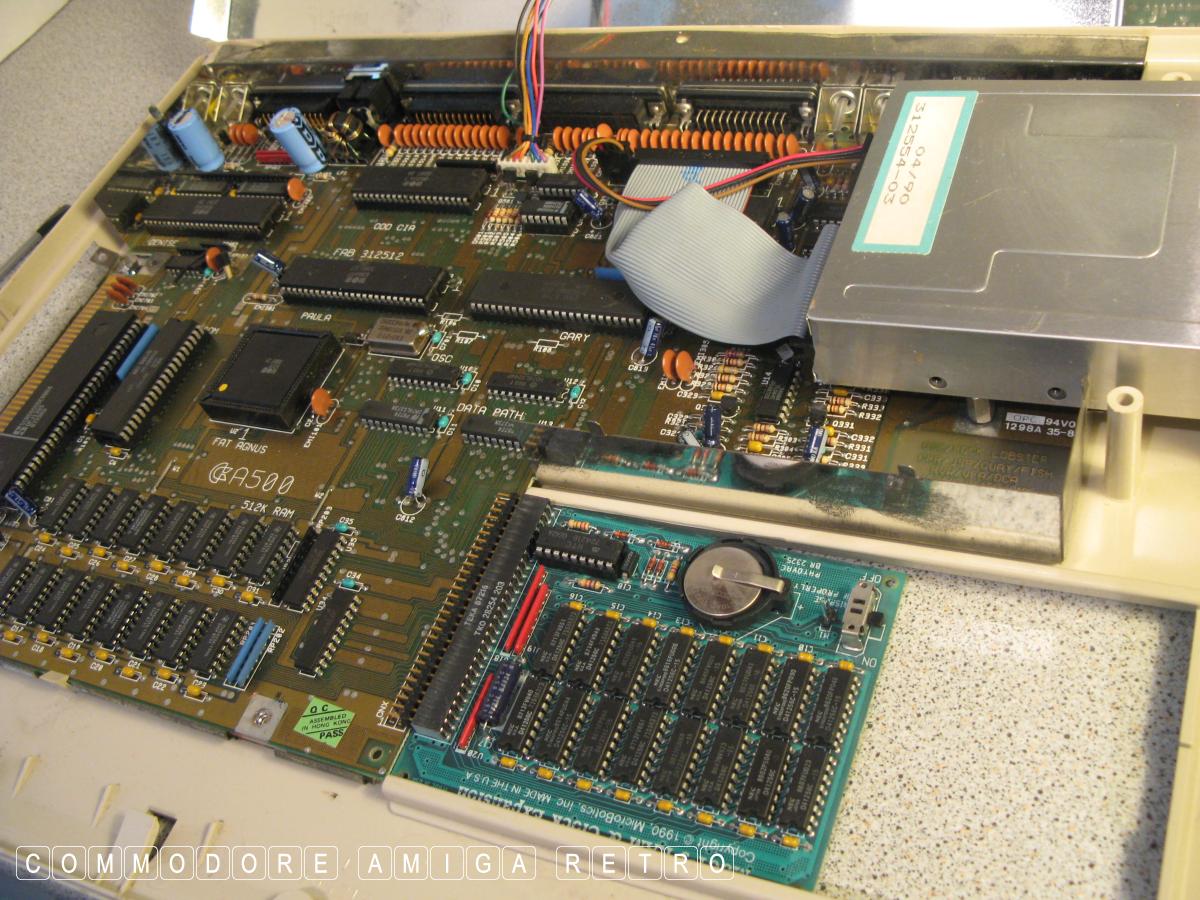

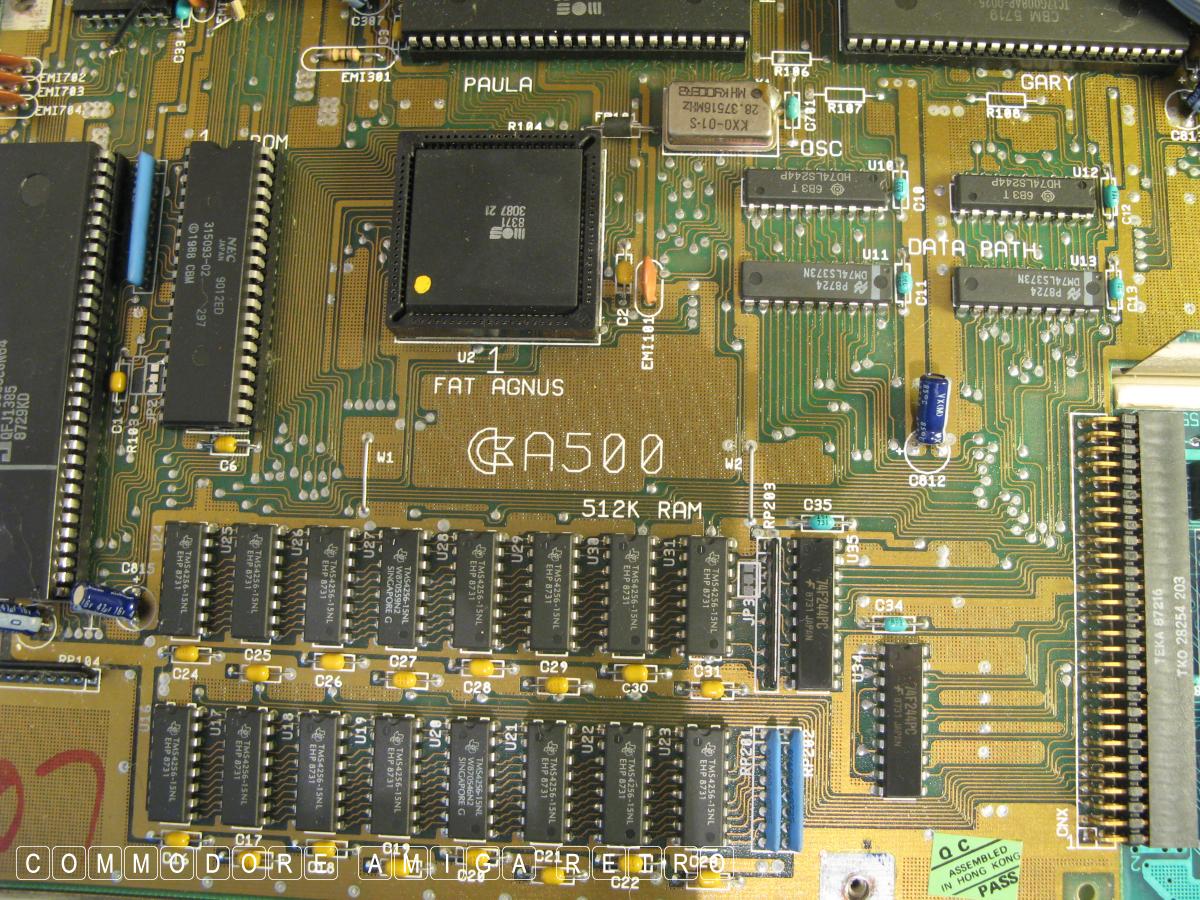

Revision 5 Board

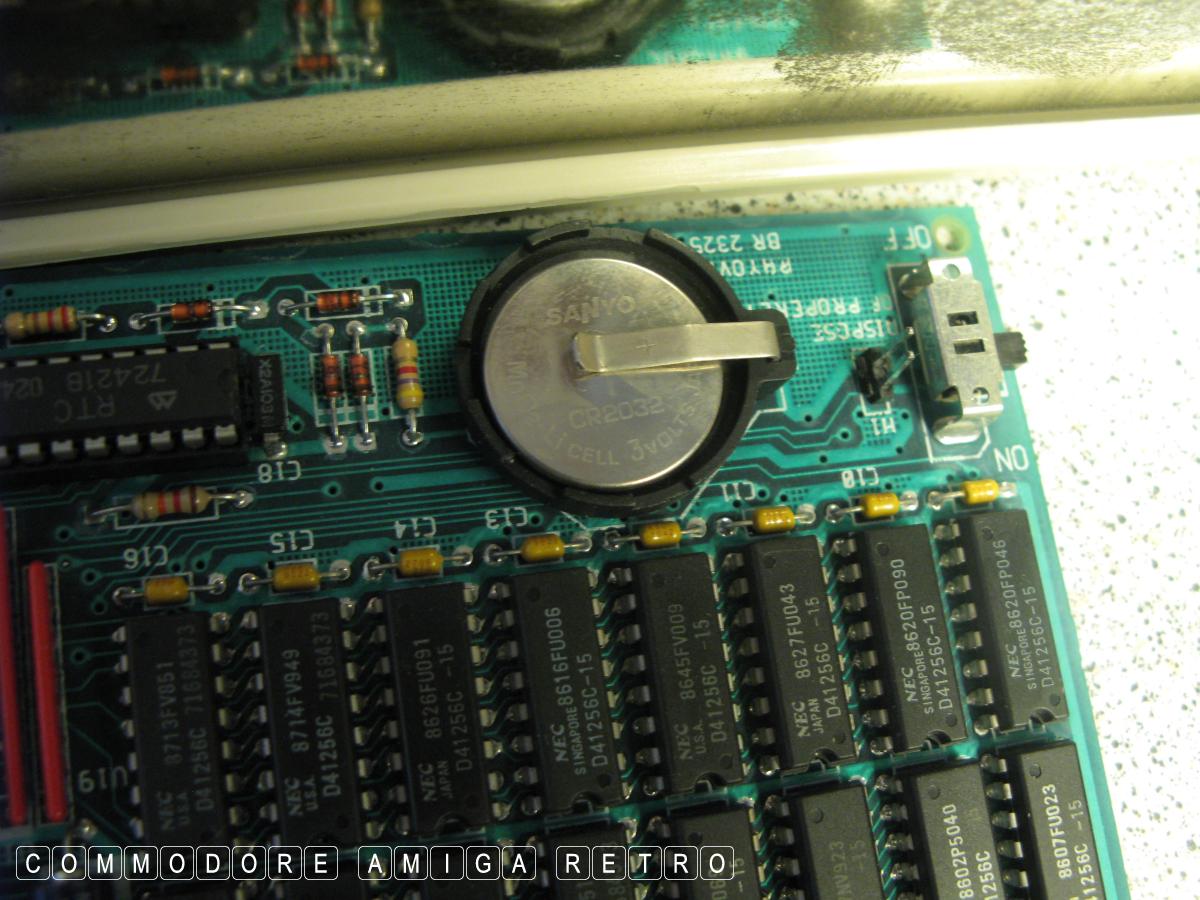

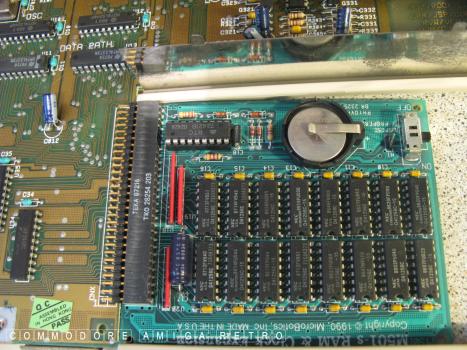

Microbotics with a 2032, how wonderful

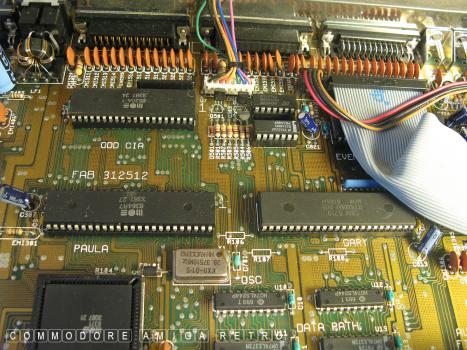

Clean undisturbed tracks

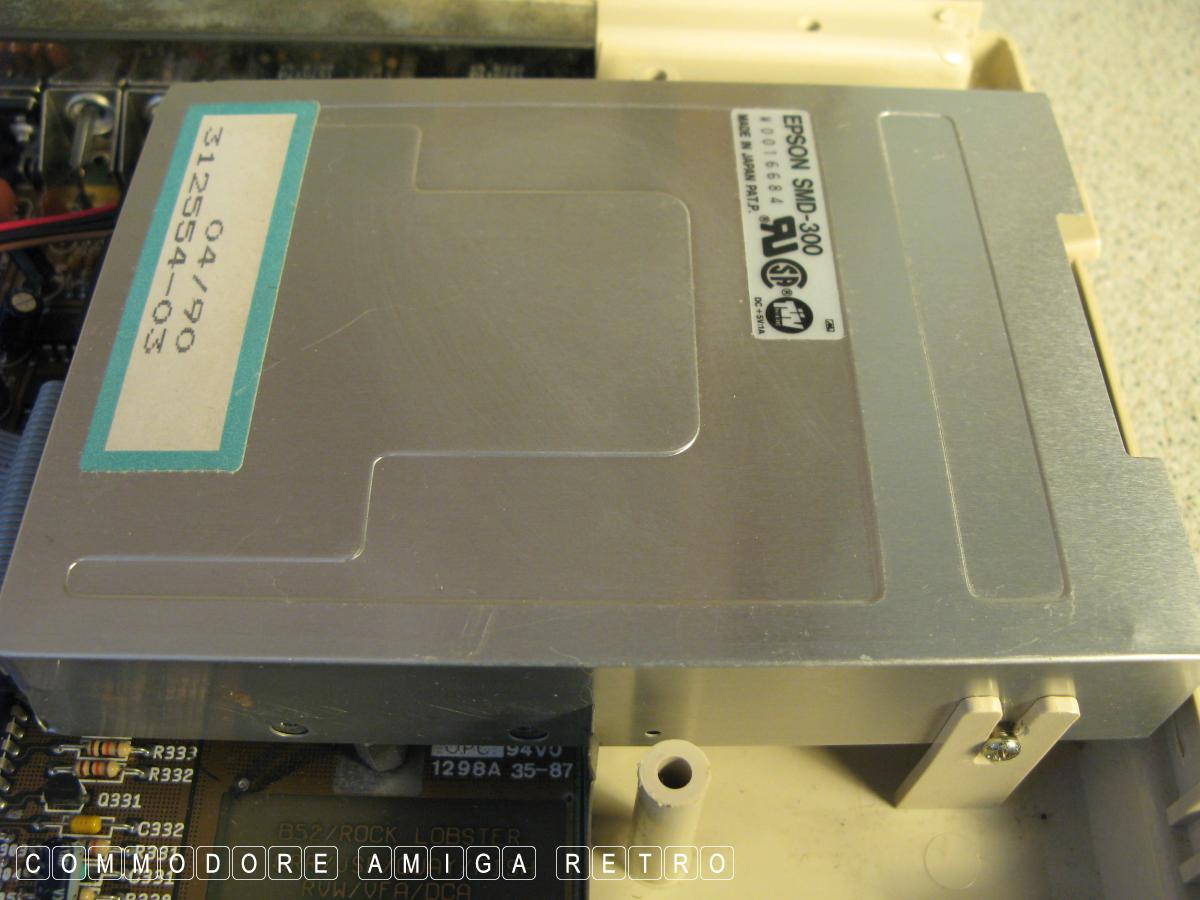

An Epson floppy which is rock solid

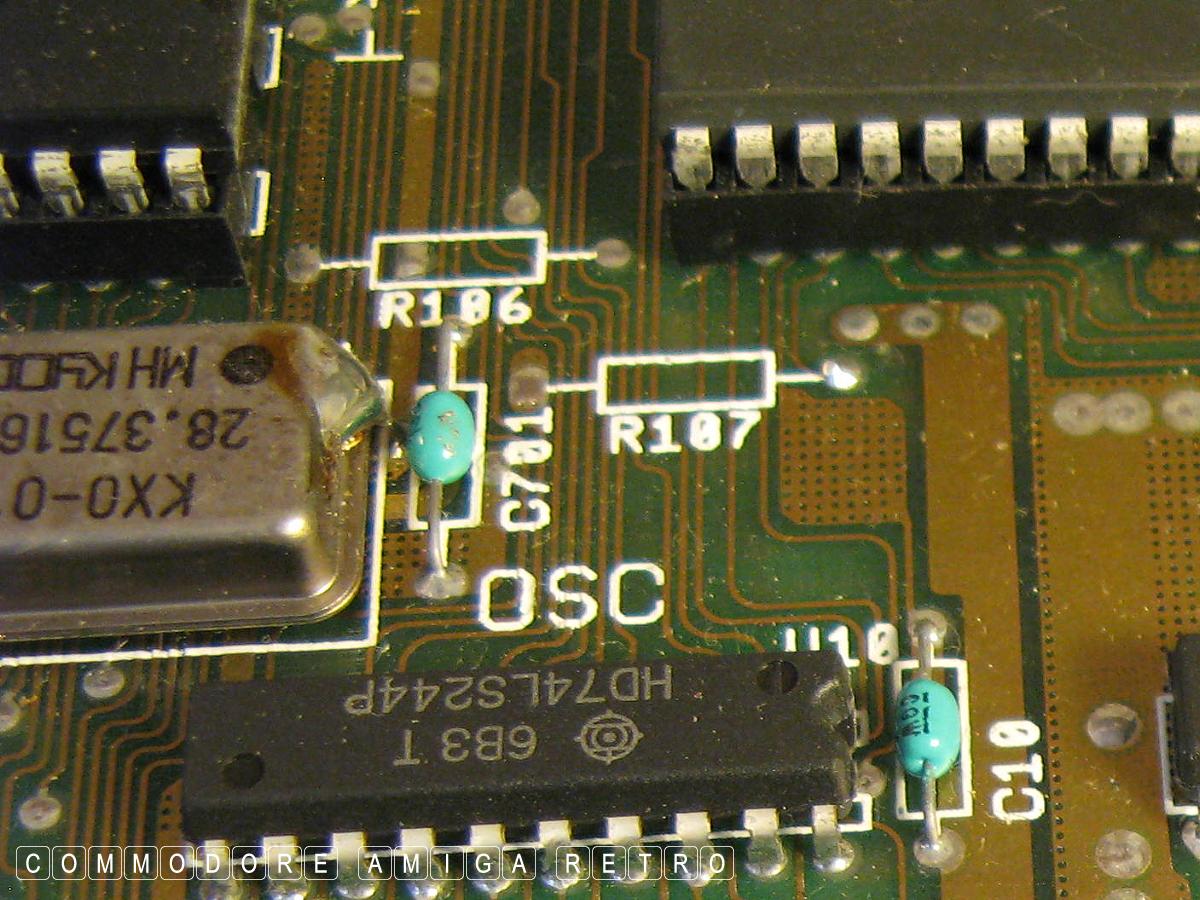

Sadly something going on in the middle there

Looks like Terminator II

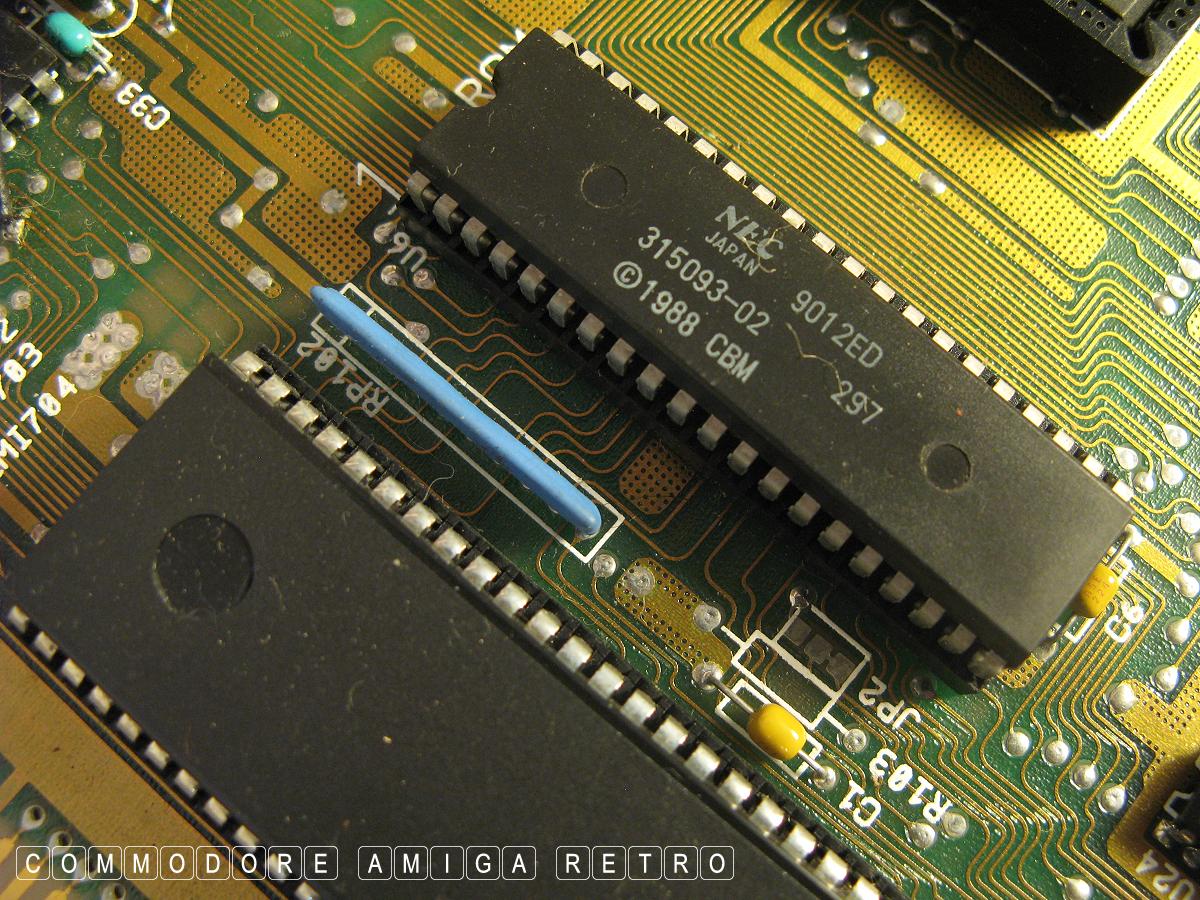

NEC Japan for the ROM

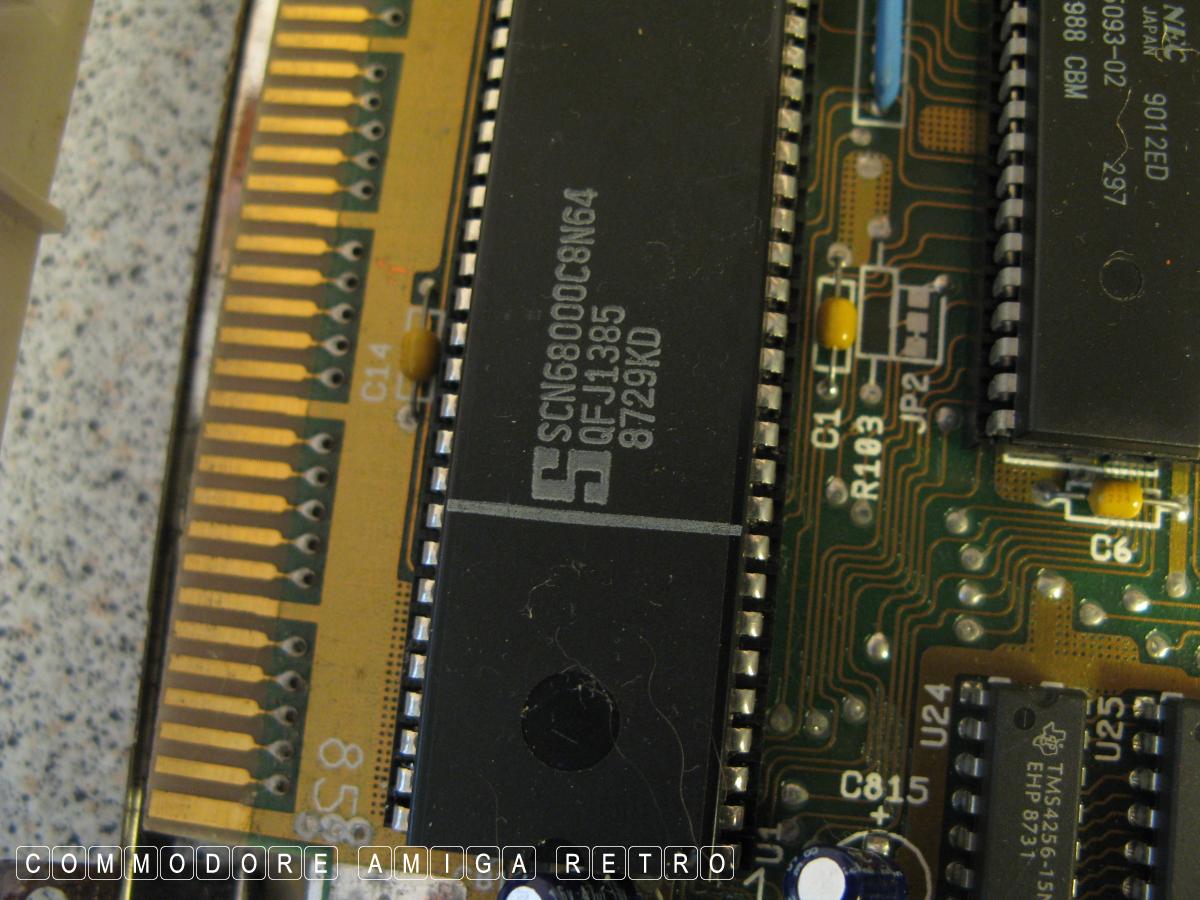

Main processor

Easy to swap out battery

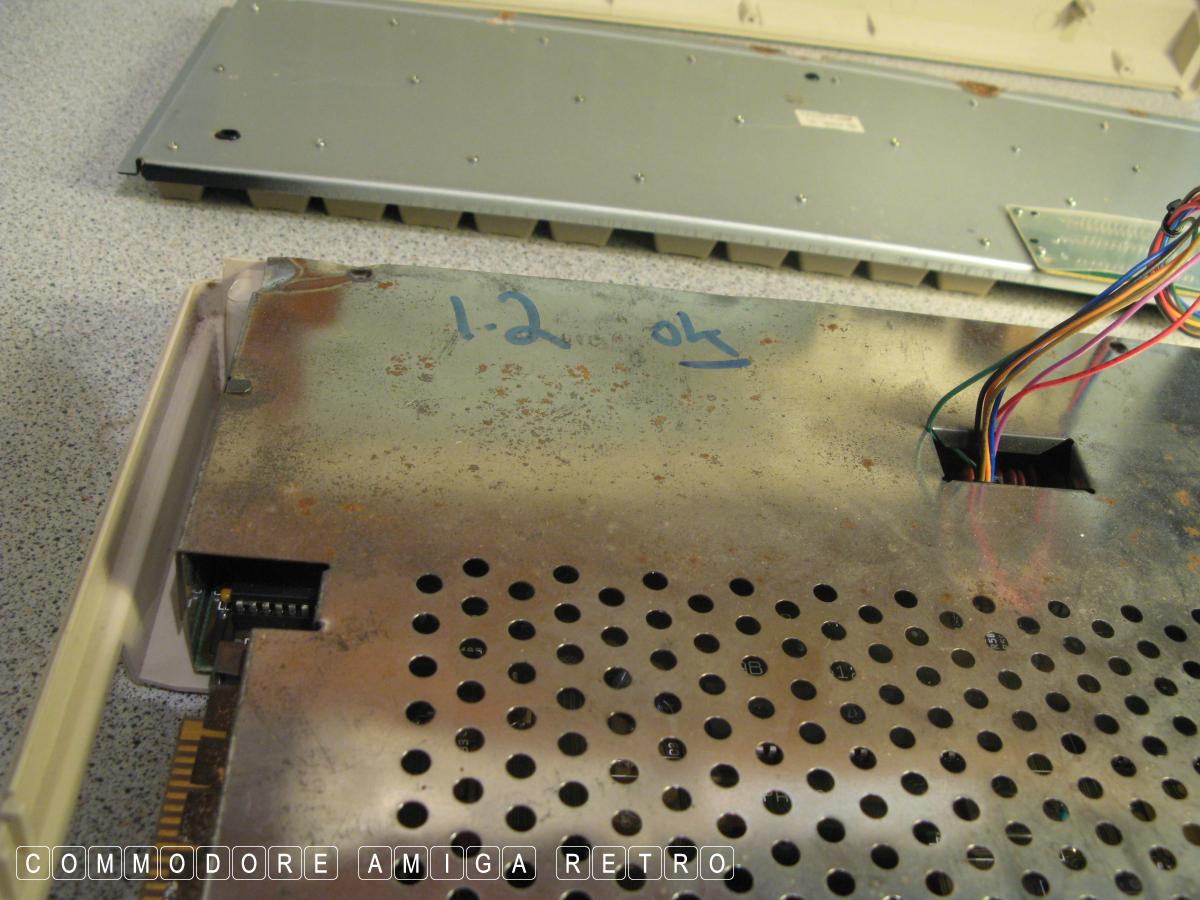

The clue was on the shielding

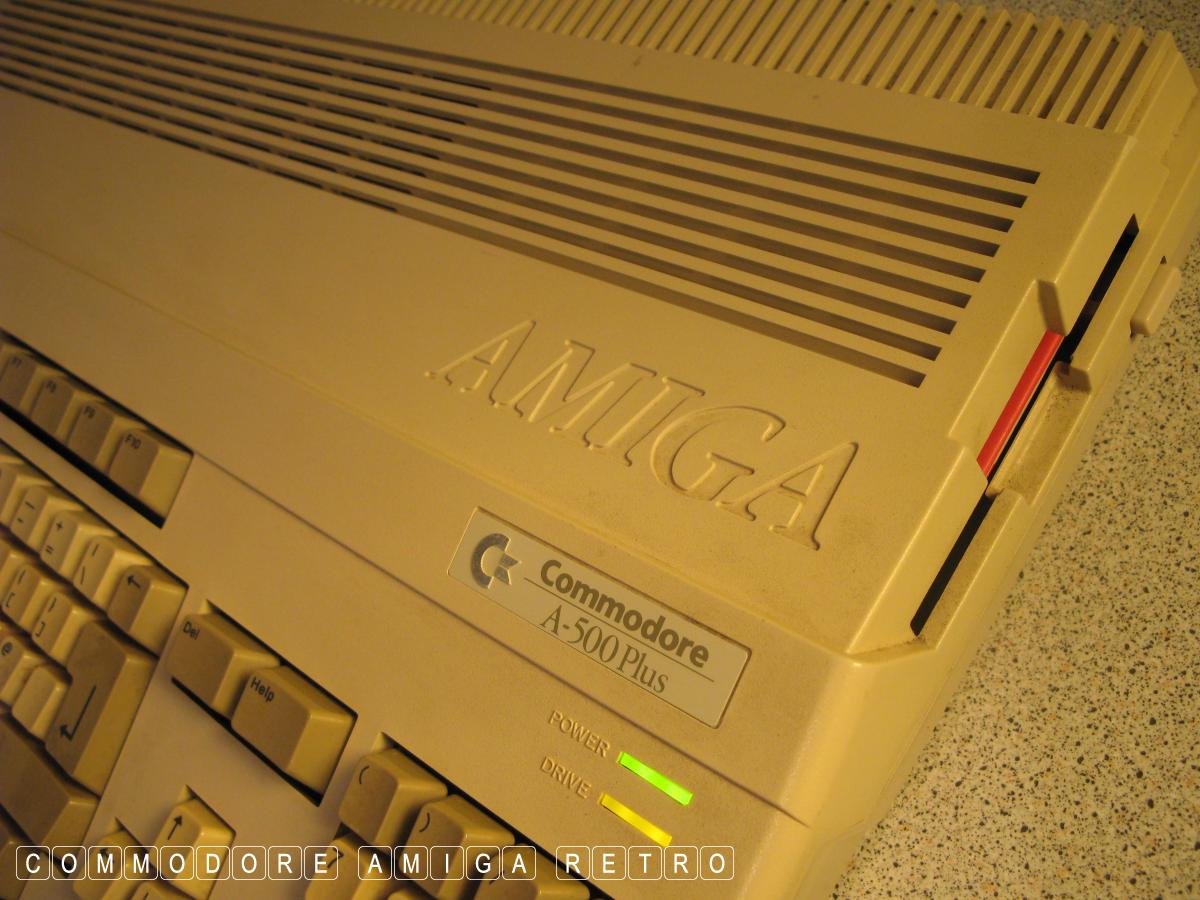

And so we have power

And my very own 1.2 disk working

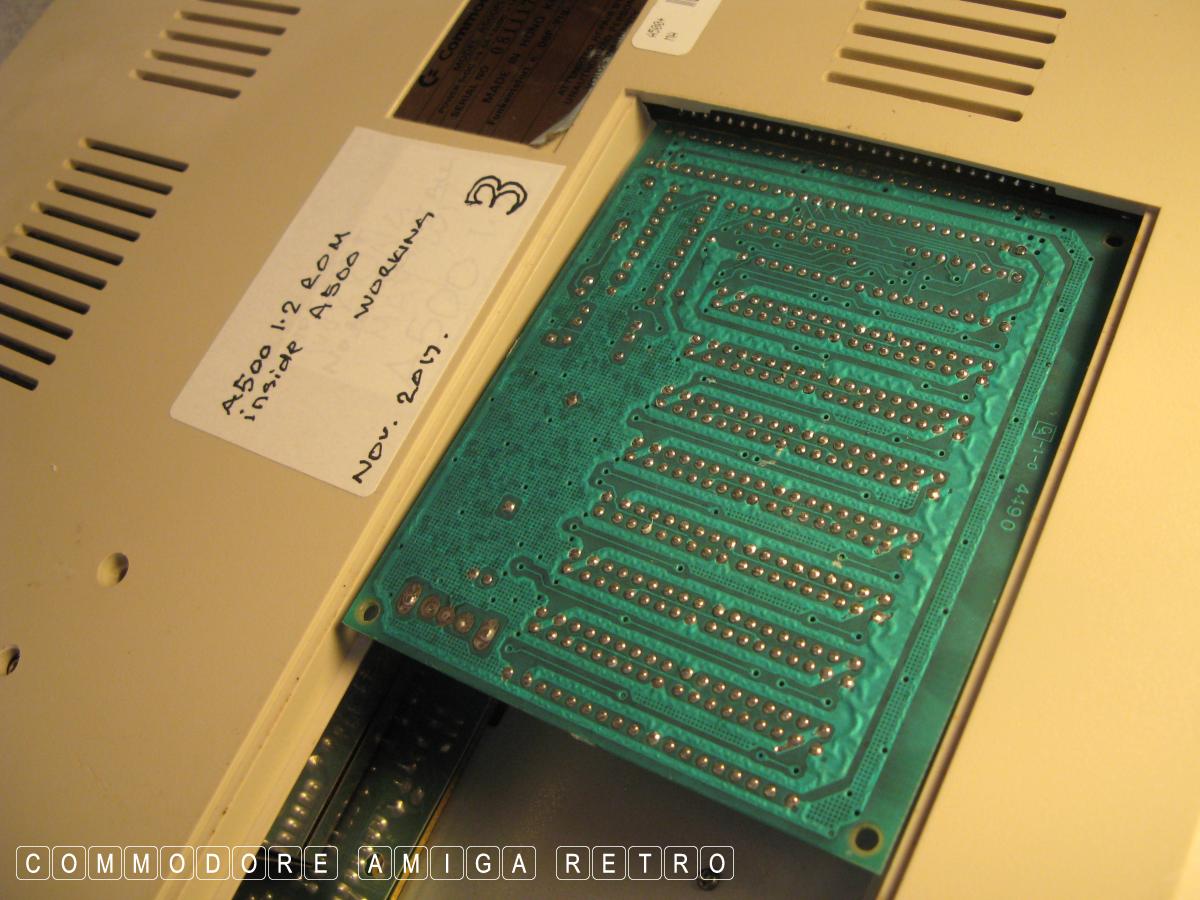

Trap door card and sticky label
letting me know whats inside
