ScuzzBlog: Diaries November 2017

Entry 9th November 2017: Post: 7


The Acid Test - Part 7

On the Plus side that is eight down and not very many to go. I do not
own that many Amiga Plus models so checking them over shouldn't be
too hard a struggle.

Took me three days.. just don't know where the time went.

COMPUTER No. 9

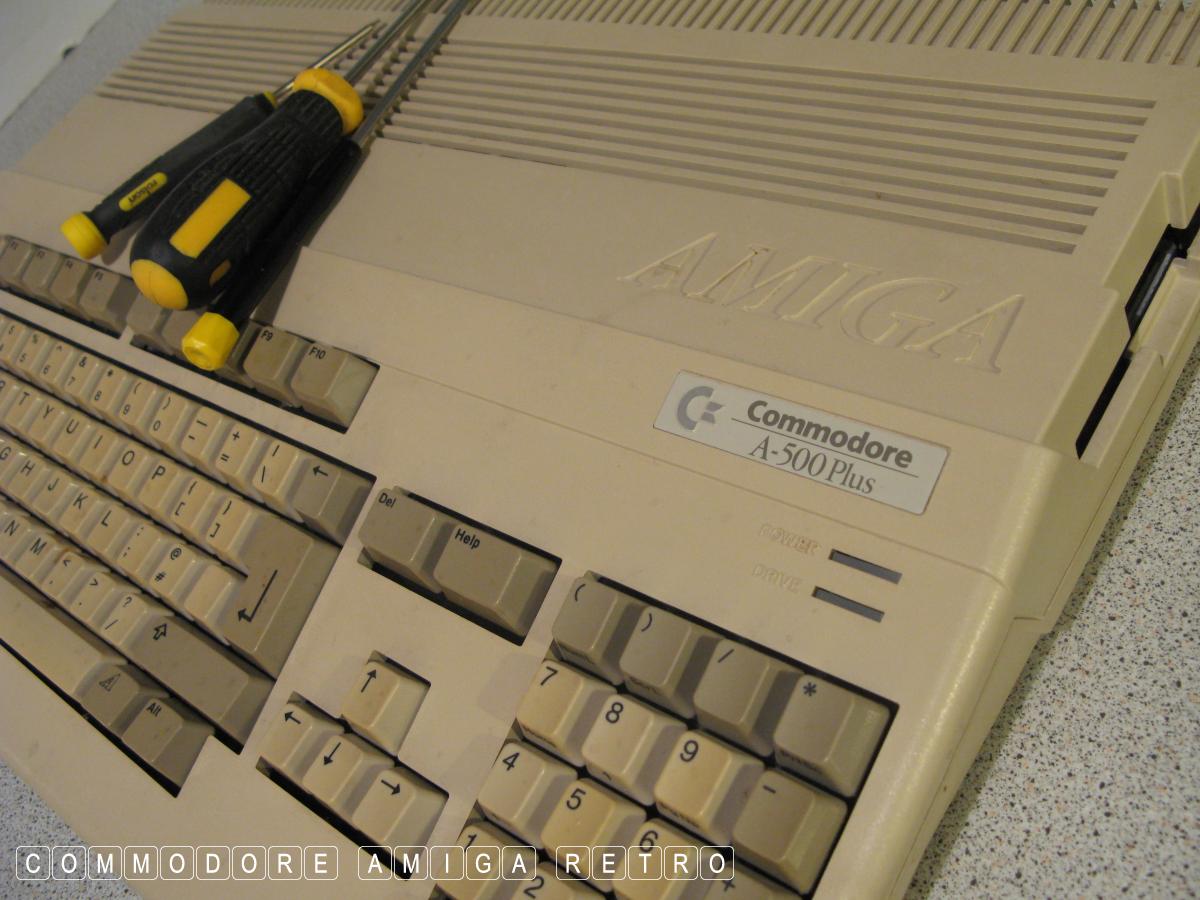

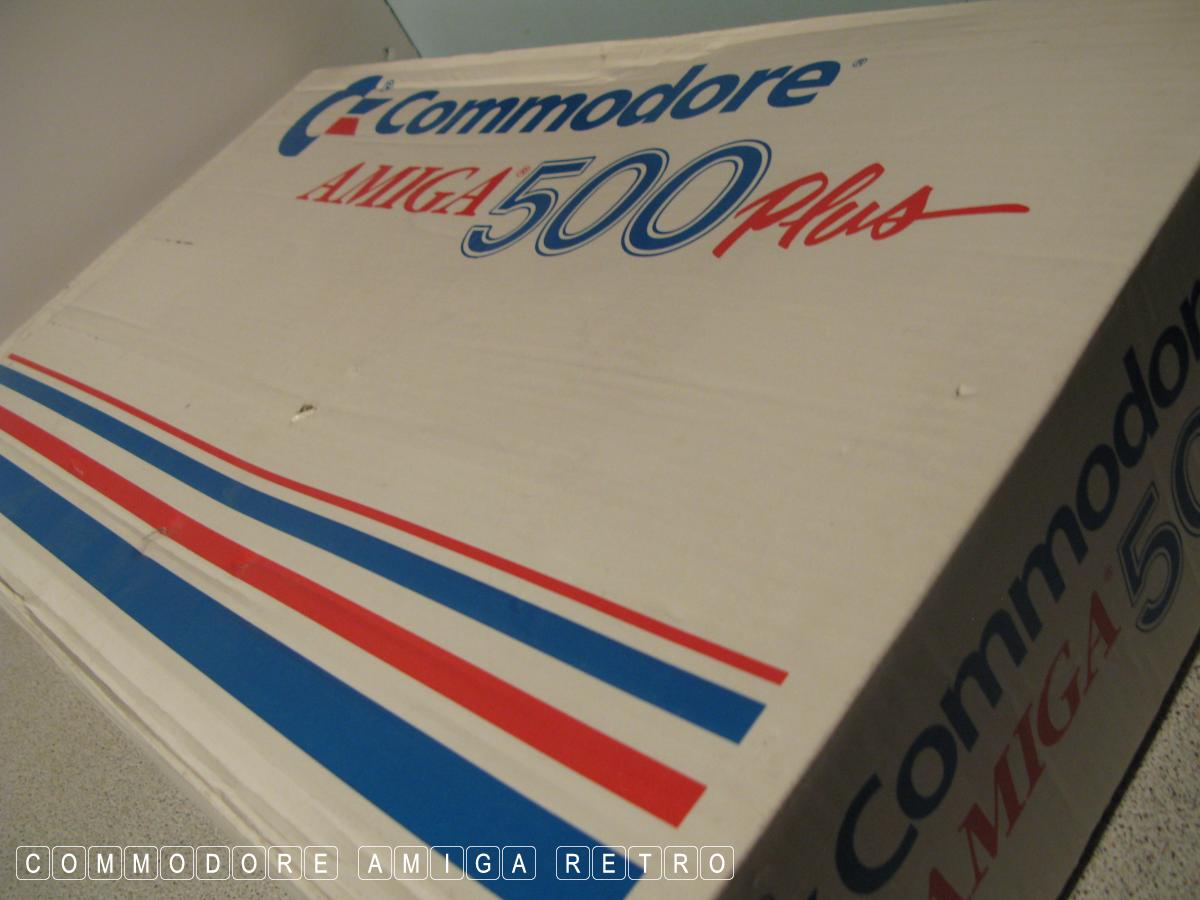

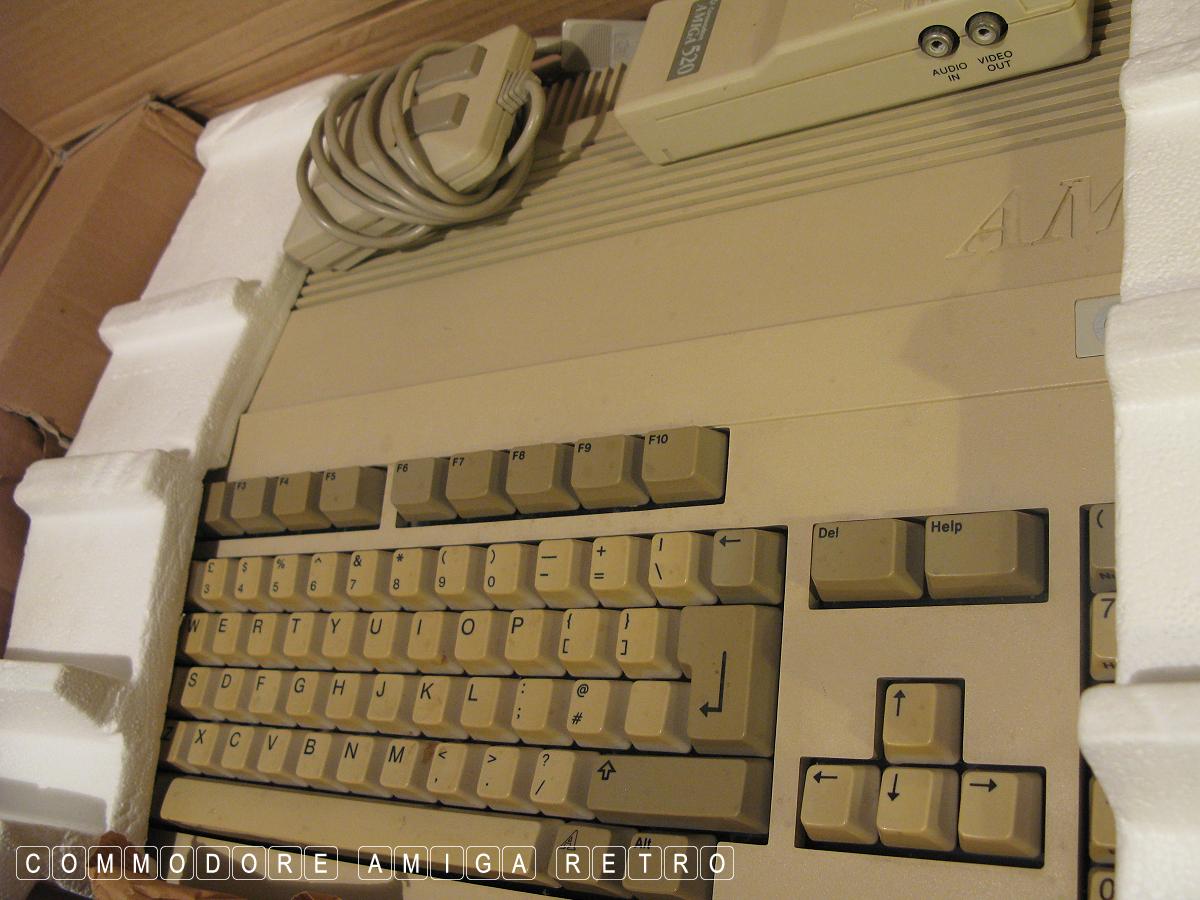

A boxed Amiga A-500Plus no less

Bit of a rarity for me this

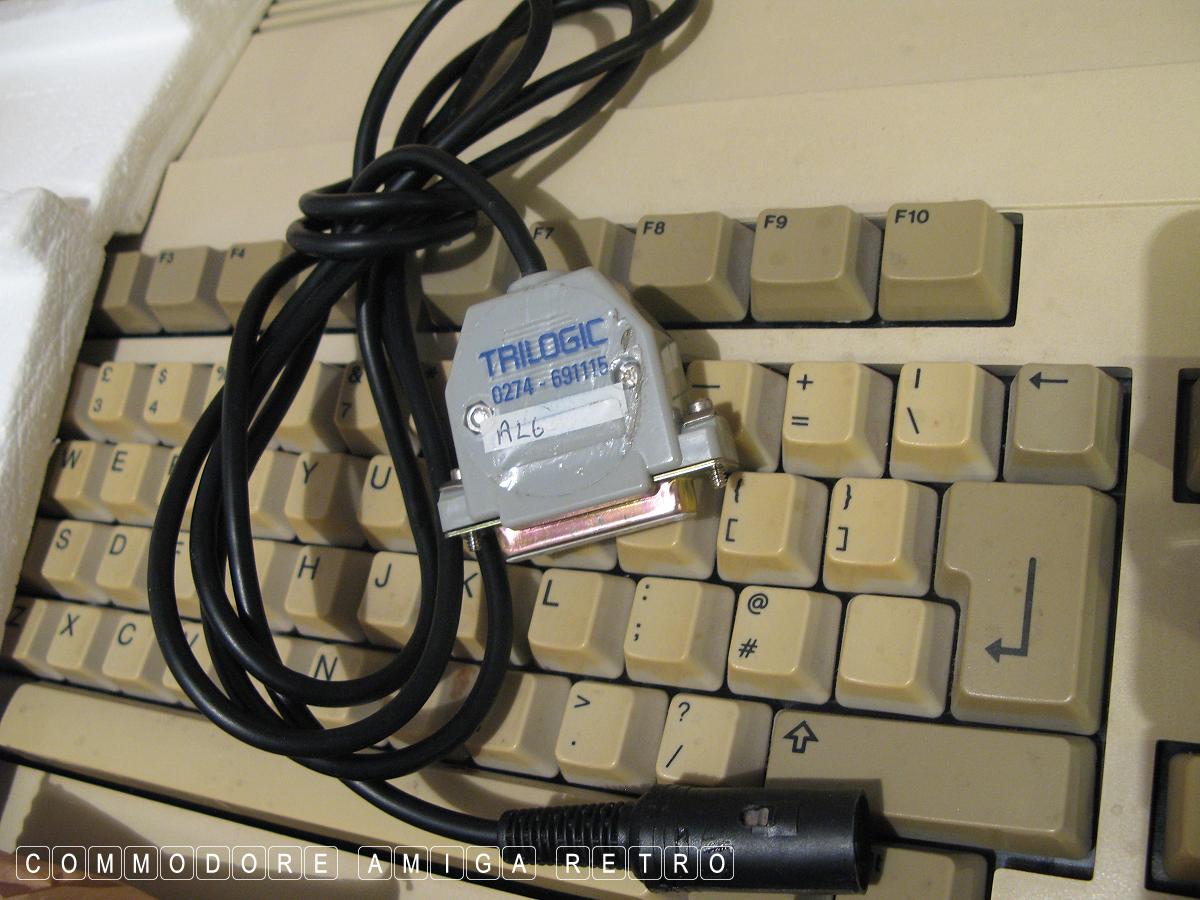

Strange Trilogic video connector
as its a female to female

Very clean machine this

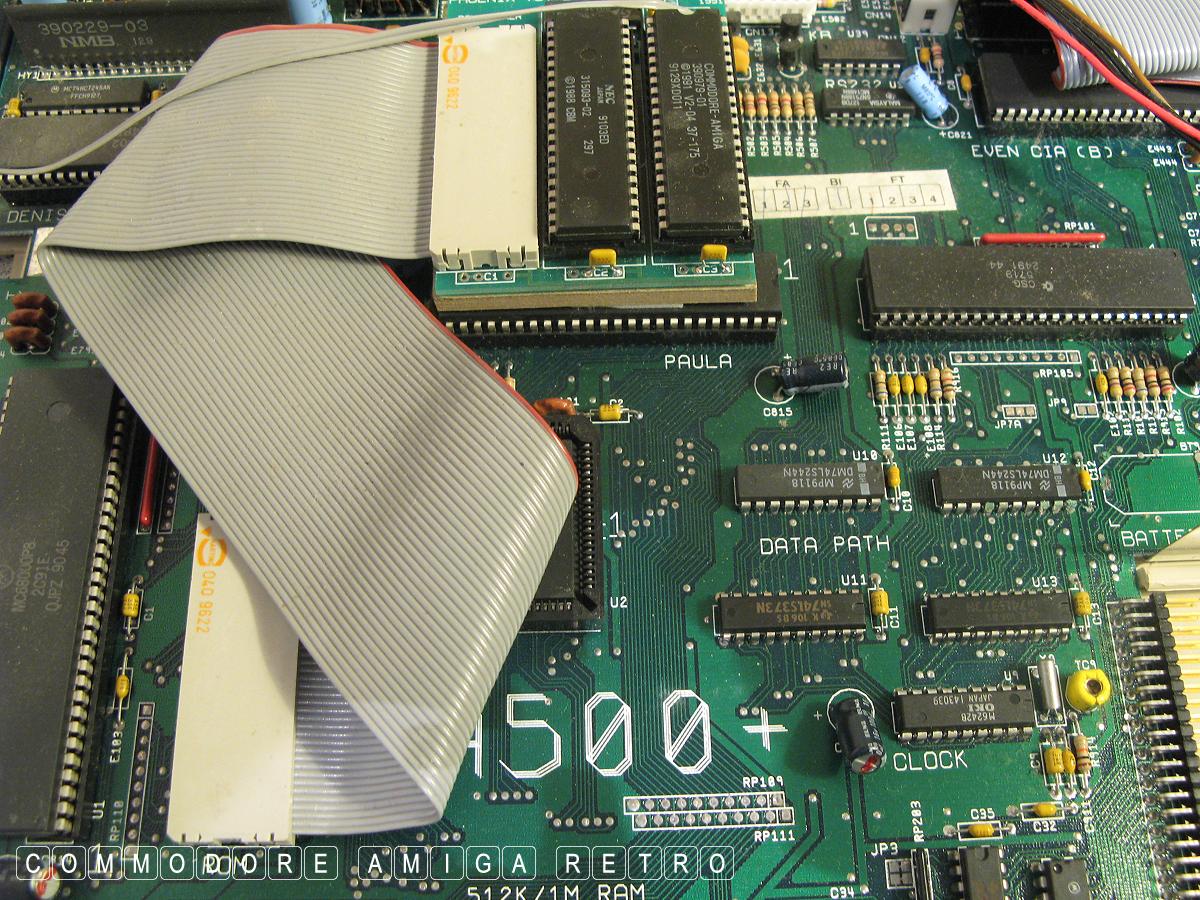

And quite the most elaborate ROM switcher

Not sure why they chose to do it this way

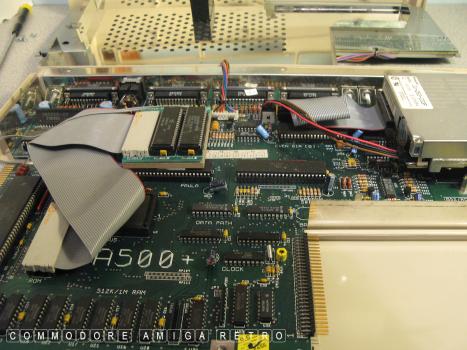

Dark green mobo with all the tramways
clearly visible and looking good

Some minor damage but the battery
had not leaked when I removed it

Green across the screen

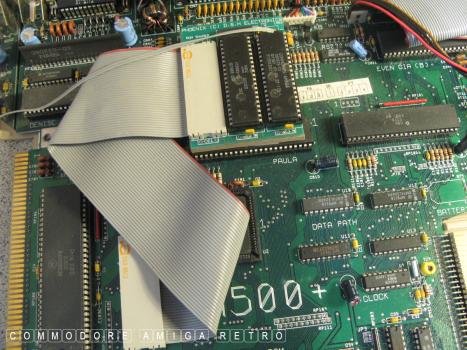

Pheonix by DSH

Beast of a connector

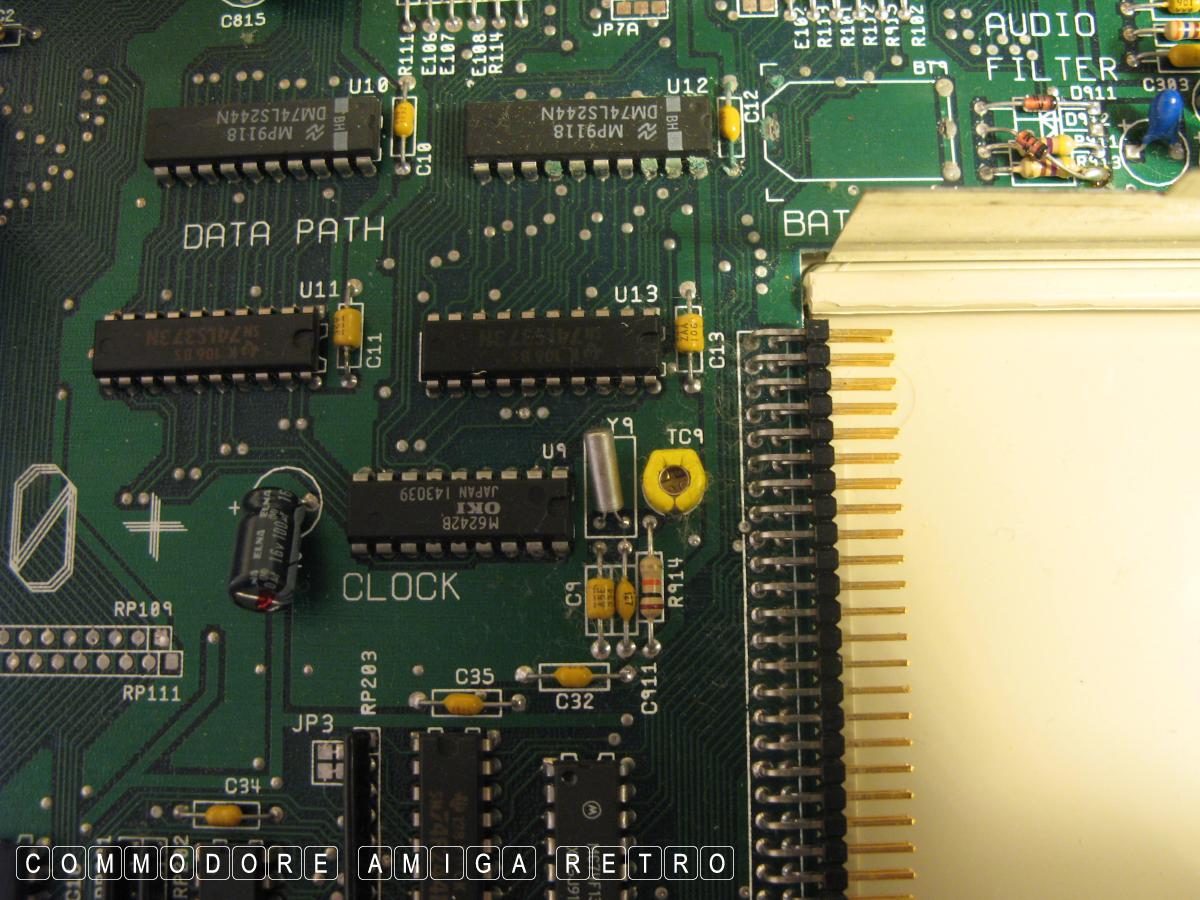

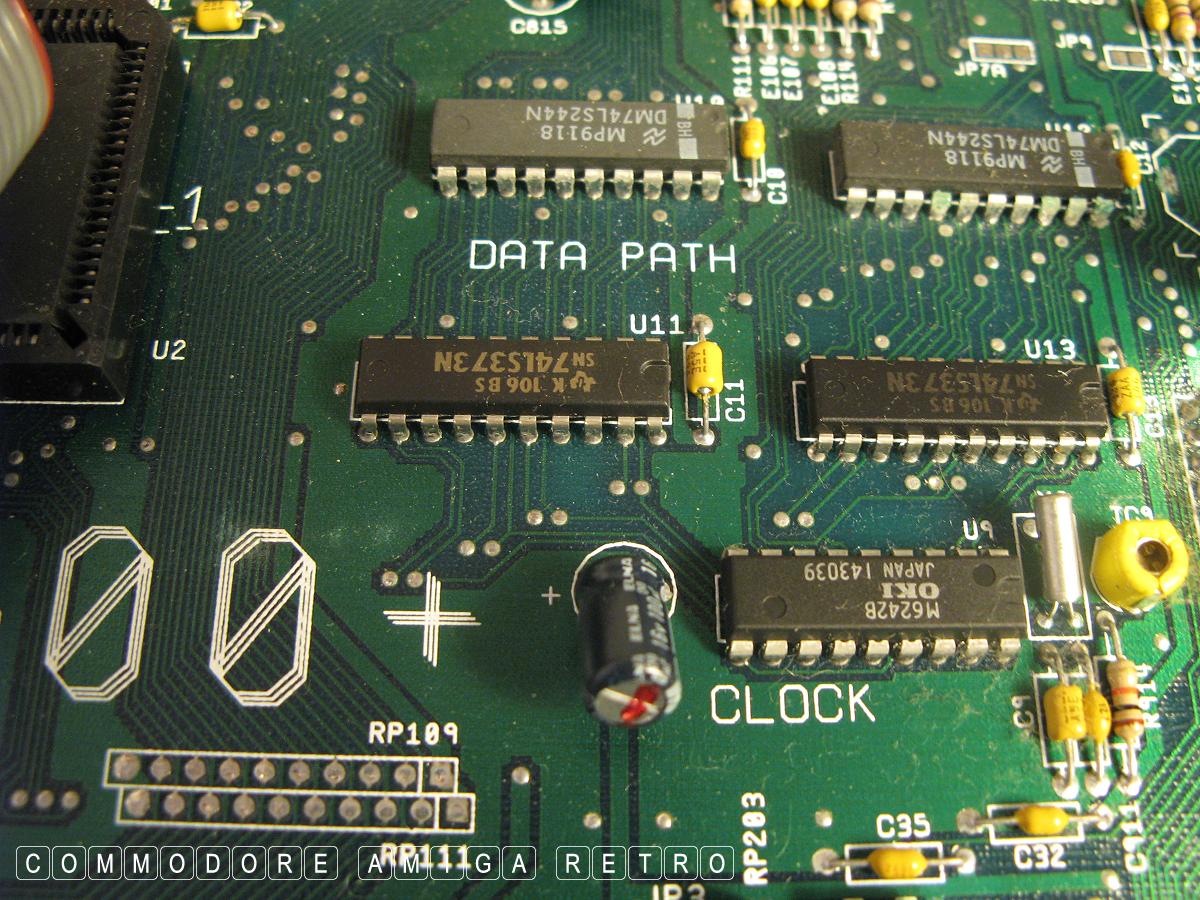

Clock area clean as a whistle

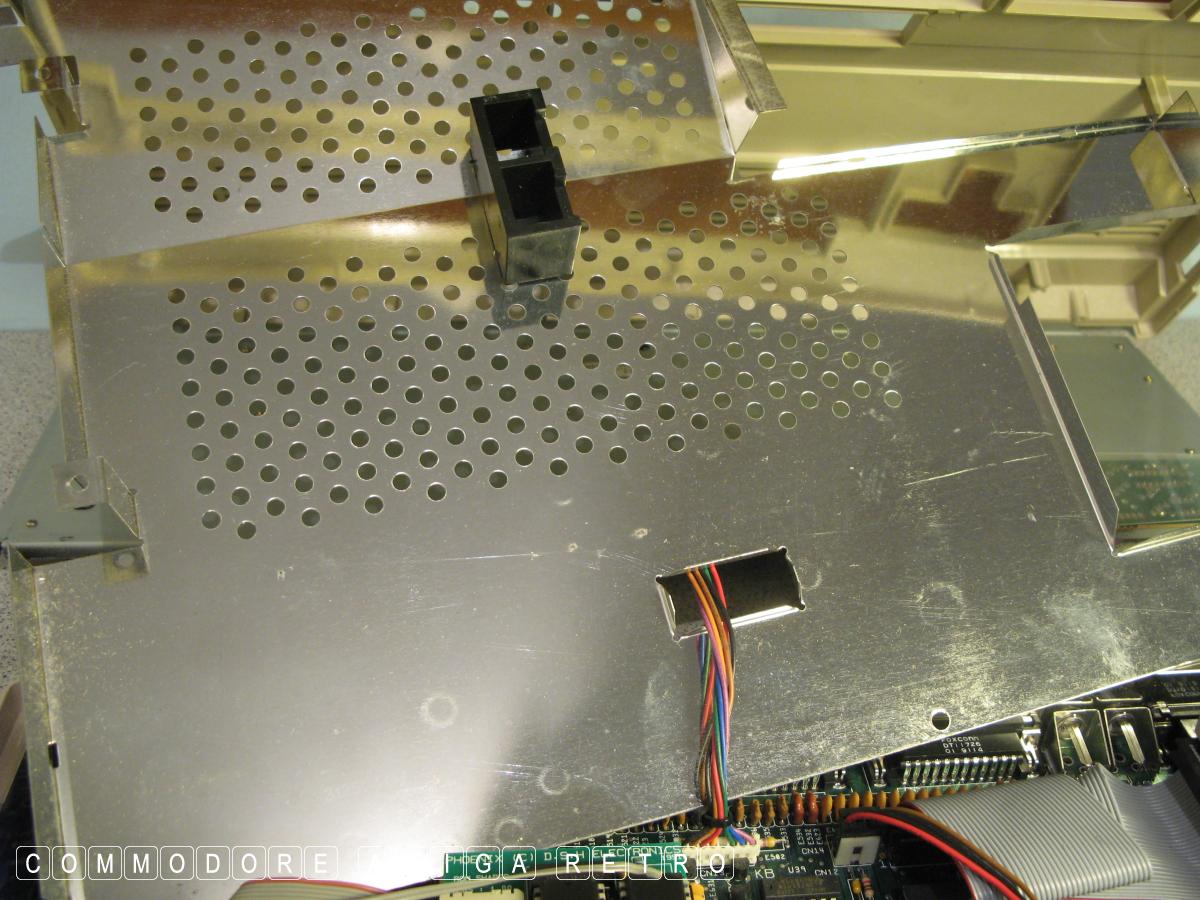

Plastic spacer support stuck to shielding

Whacky idea with the ribbon

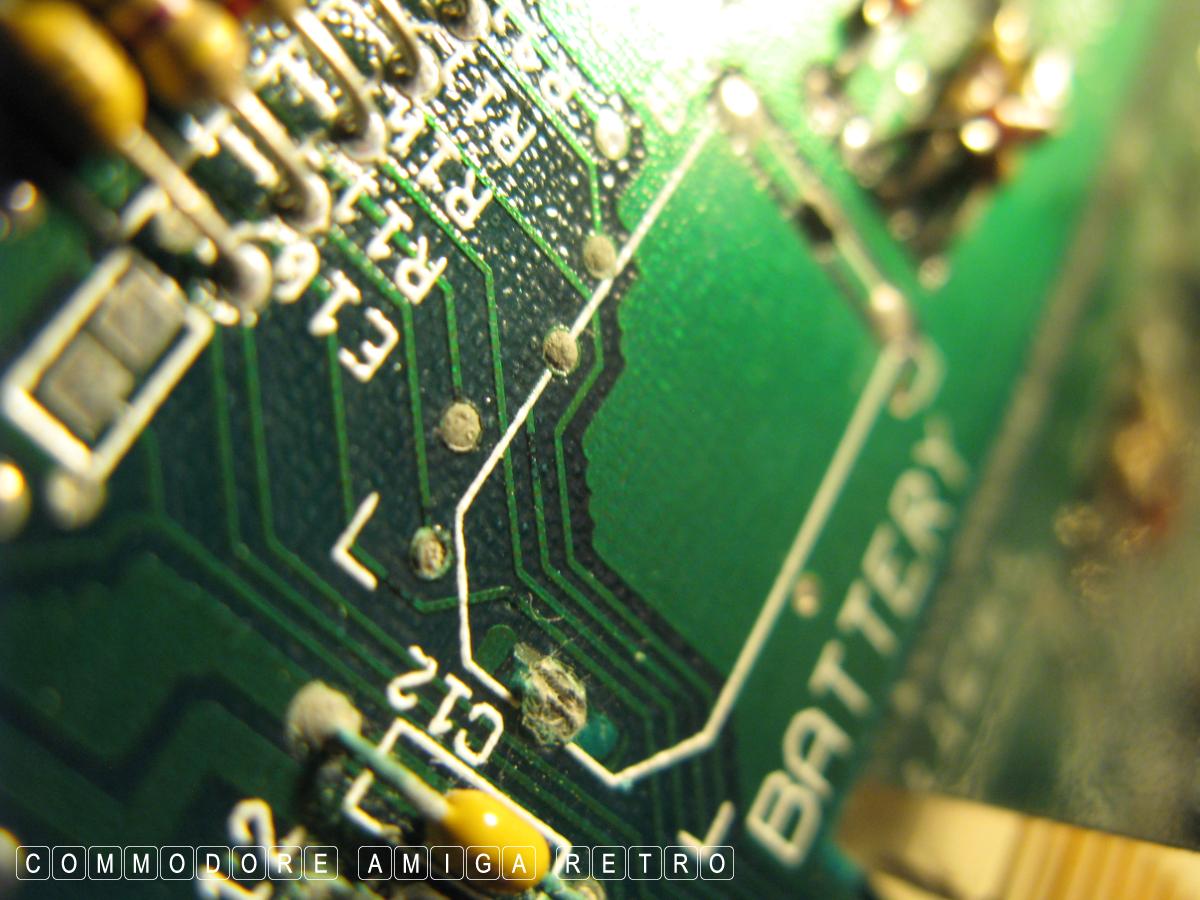

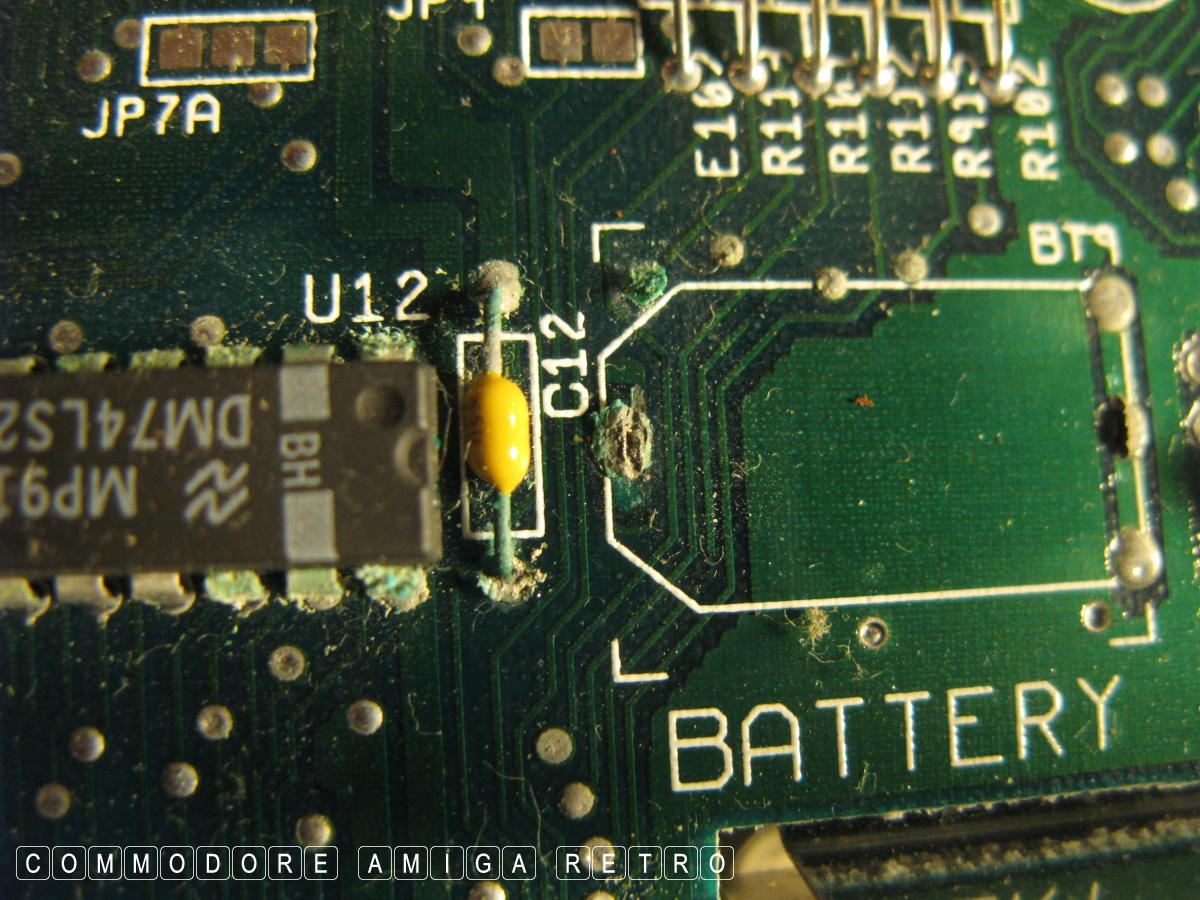

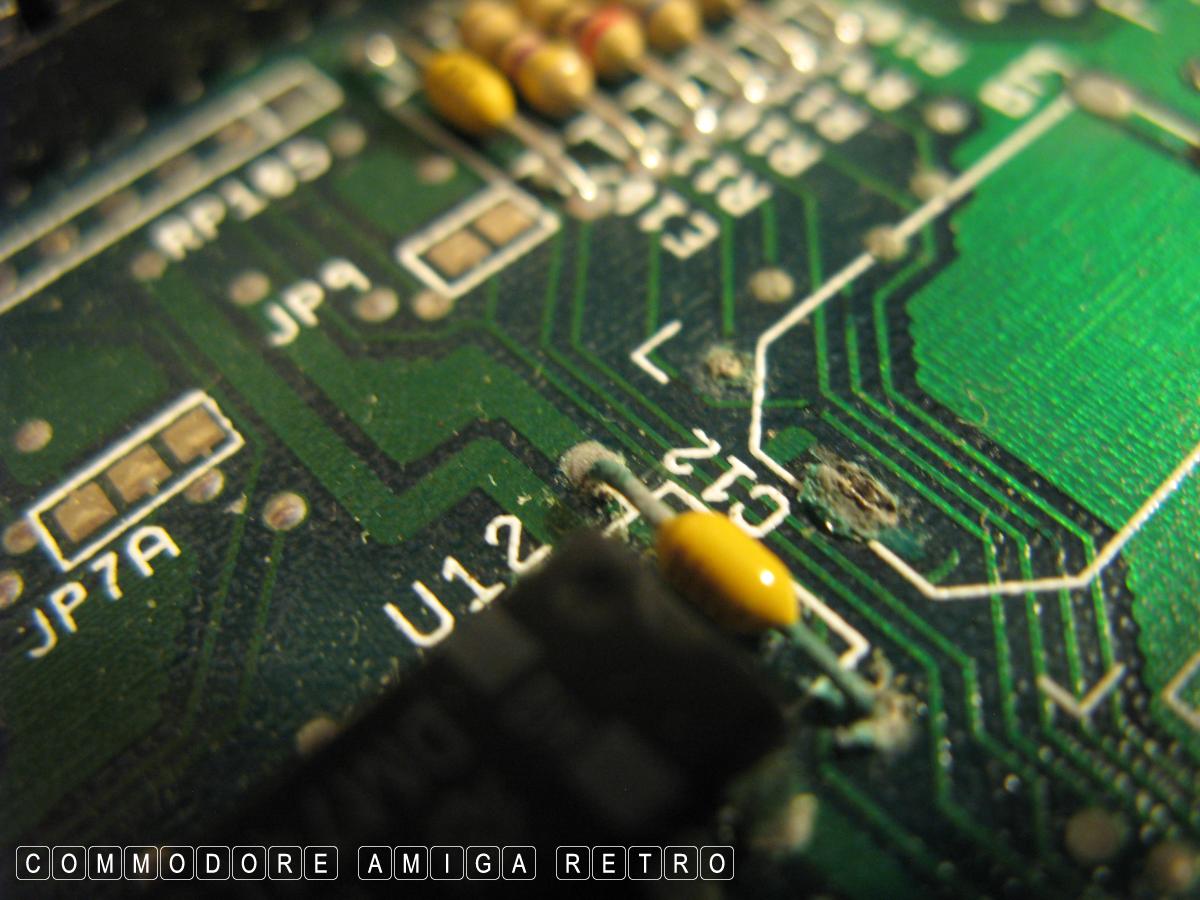

Just three points of corrosion

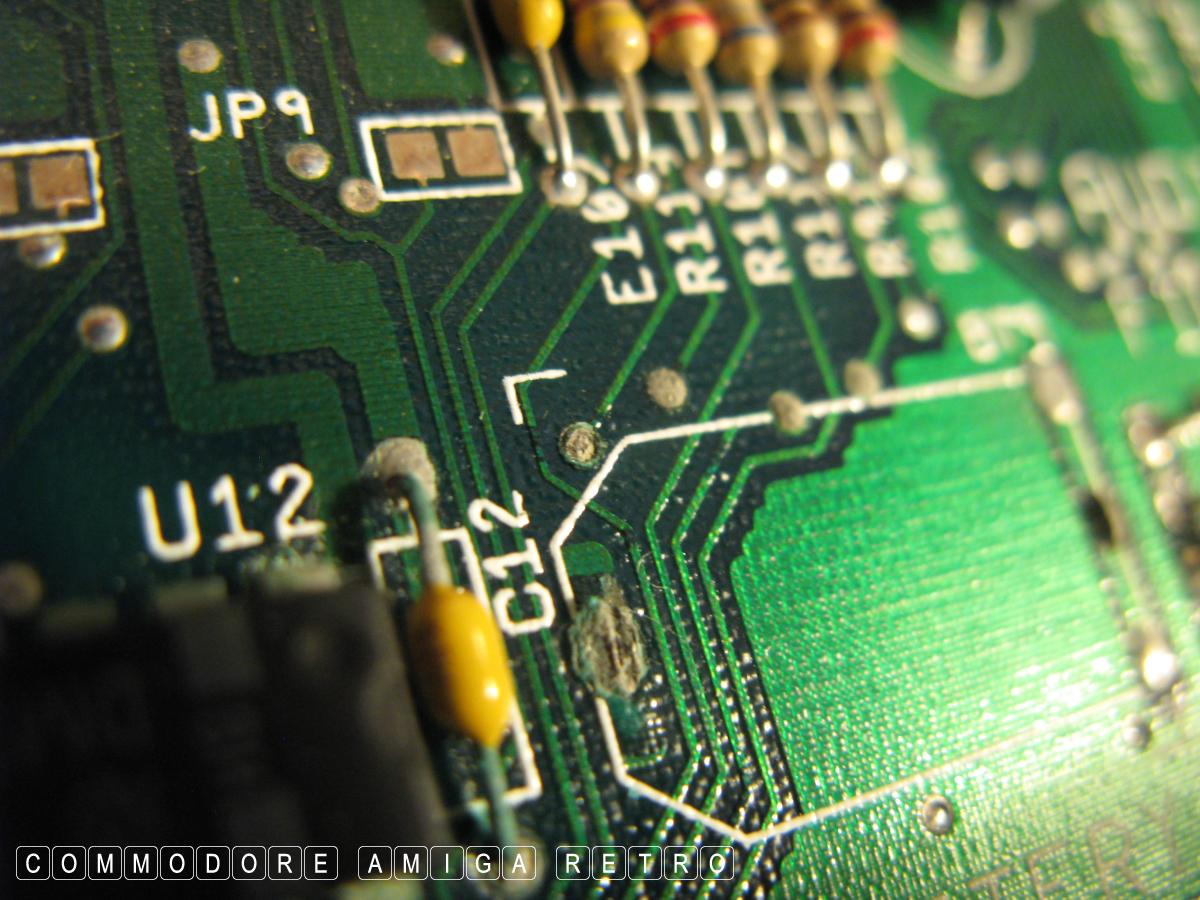

Cleaned up generally OK

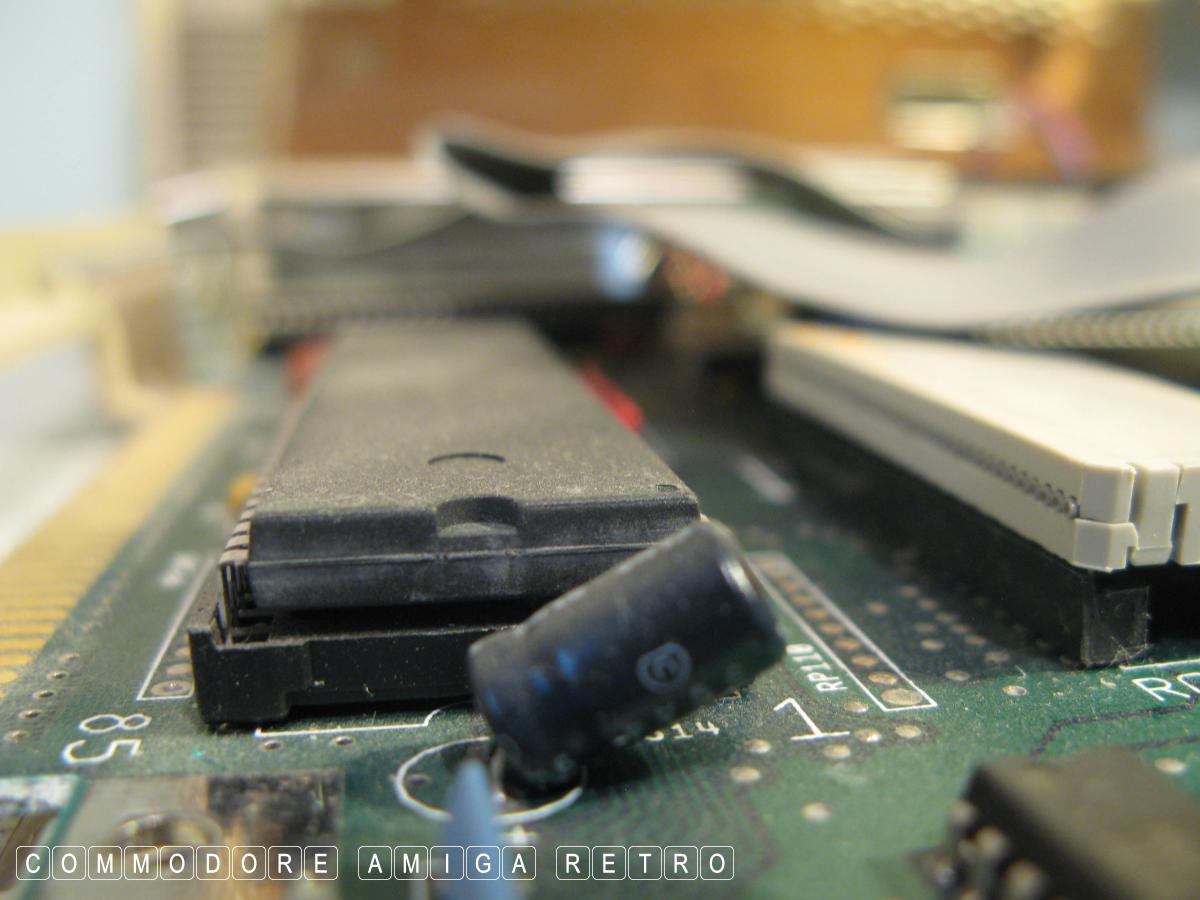

Its a ROM sandwich

Plastic jigsaw

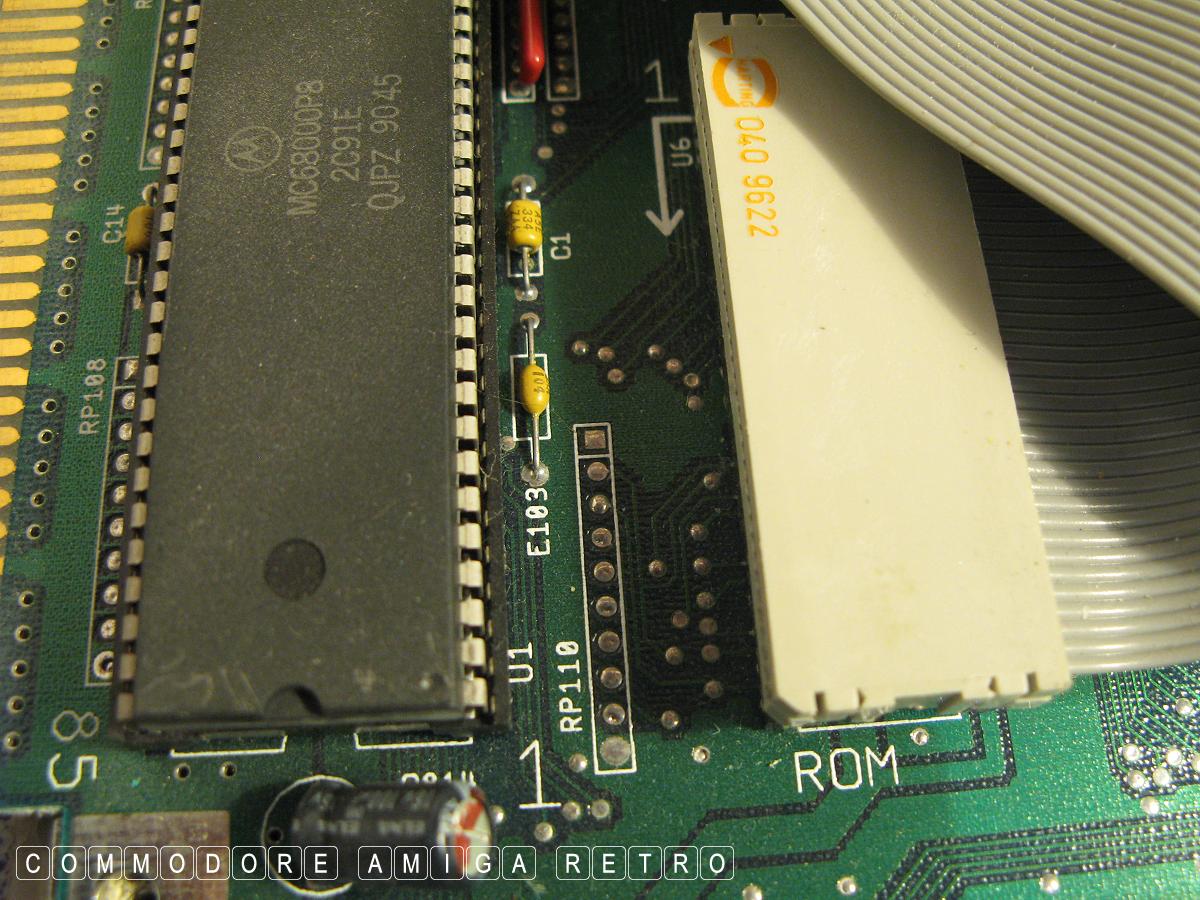

Processor

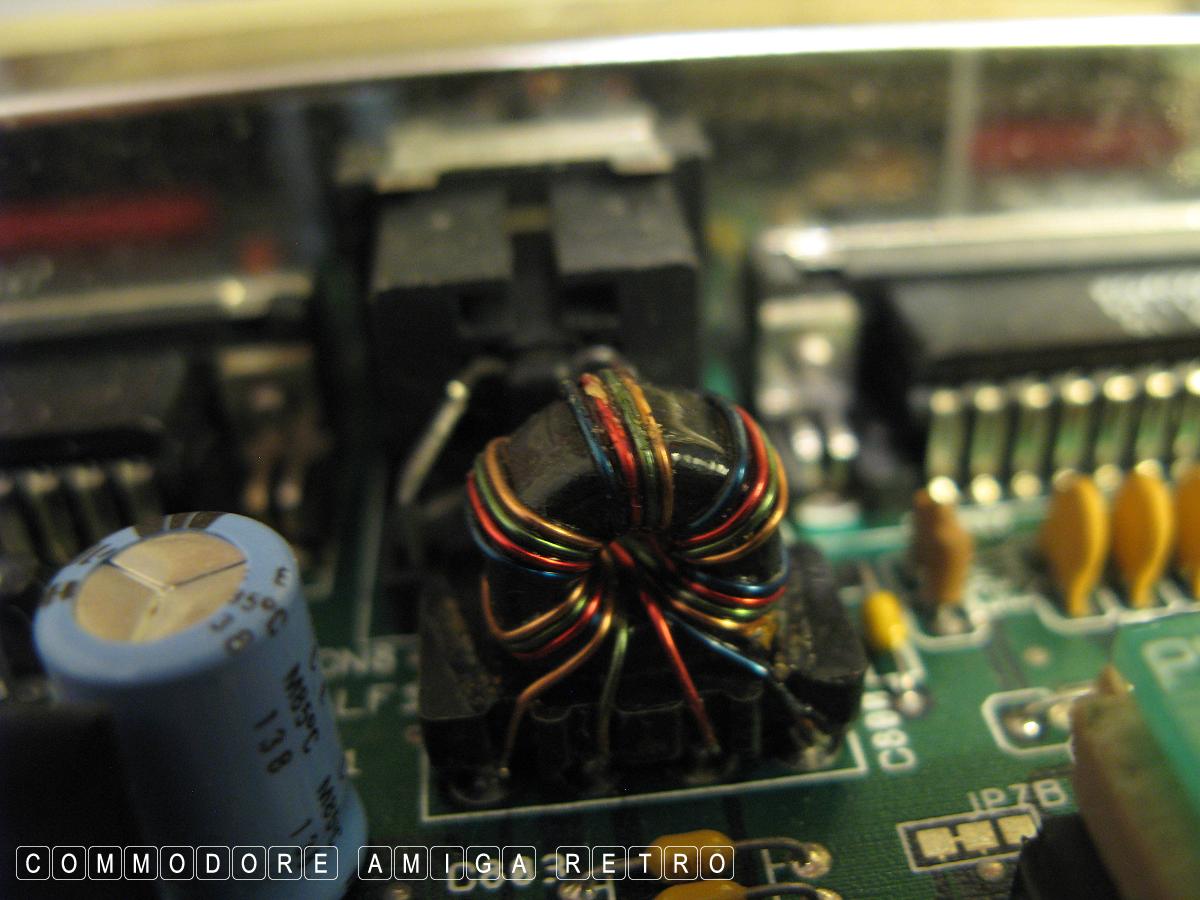

Power input

Think I'm happy with that...
Just one last look. Does play on
the old mind these battery removals

Anyway she powered up just fine
Good girl.. Back in the box. Sorry.
