Entry 27th March 2021: Post 1: Amiga 4000/030 - No mouse to boot.

Amiga 4000/030 - No mouse to boot.

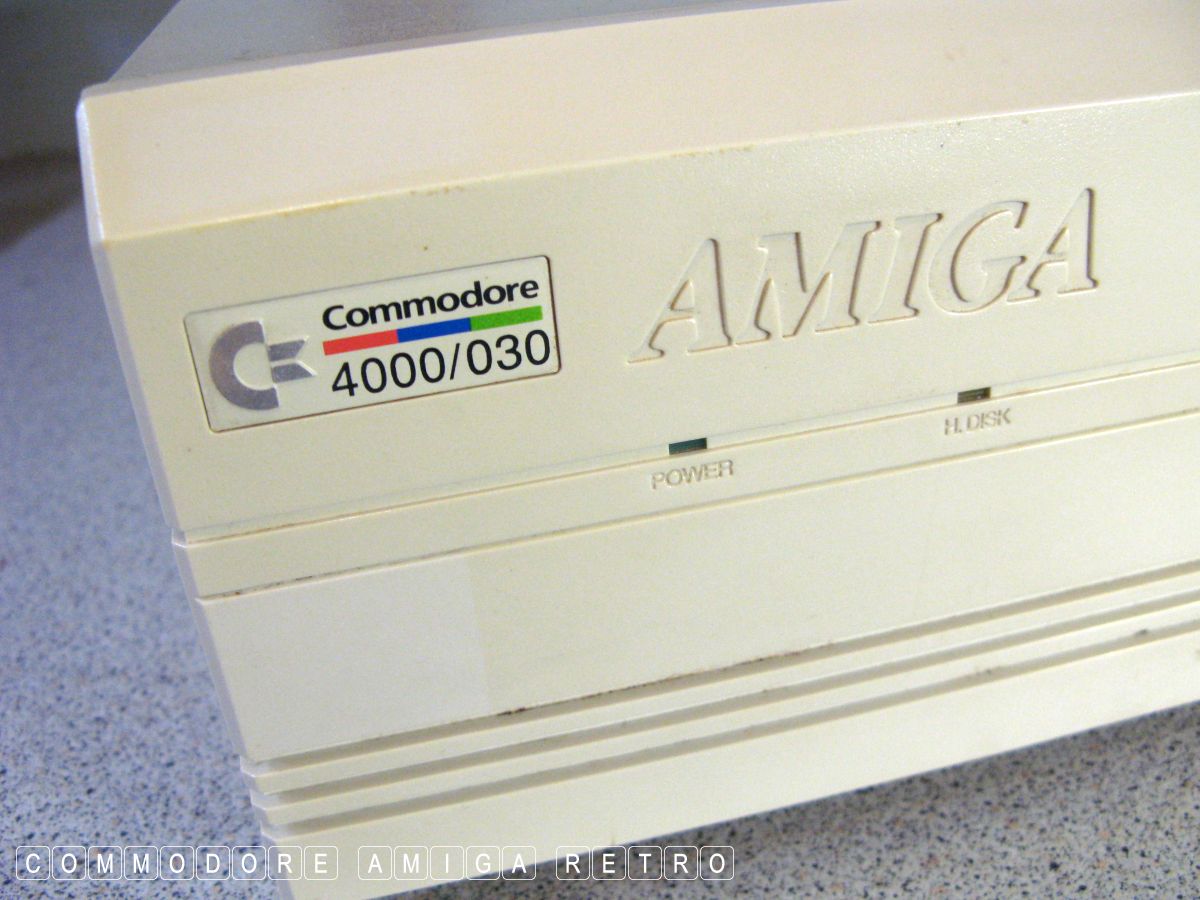

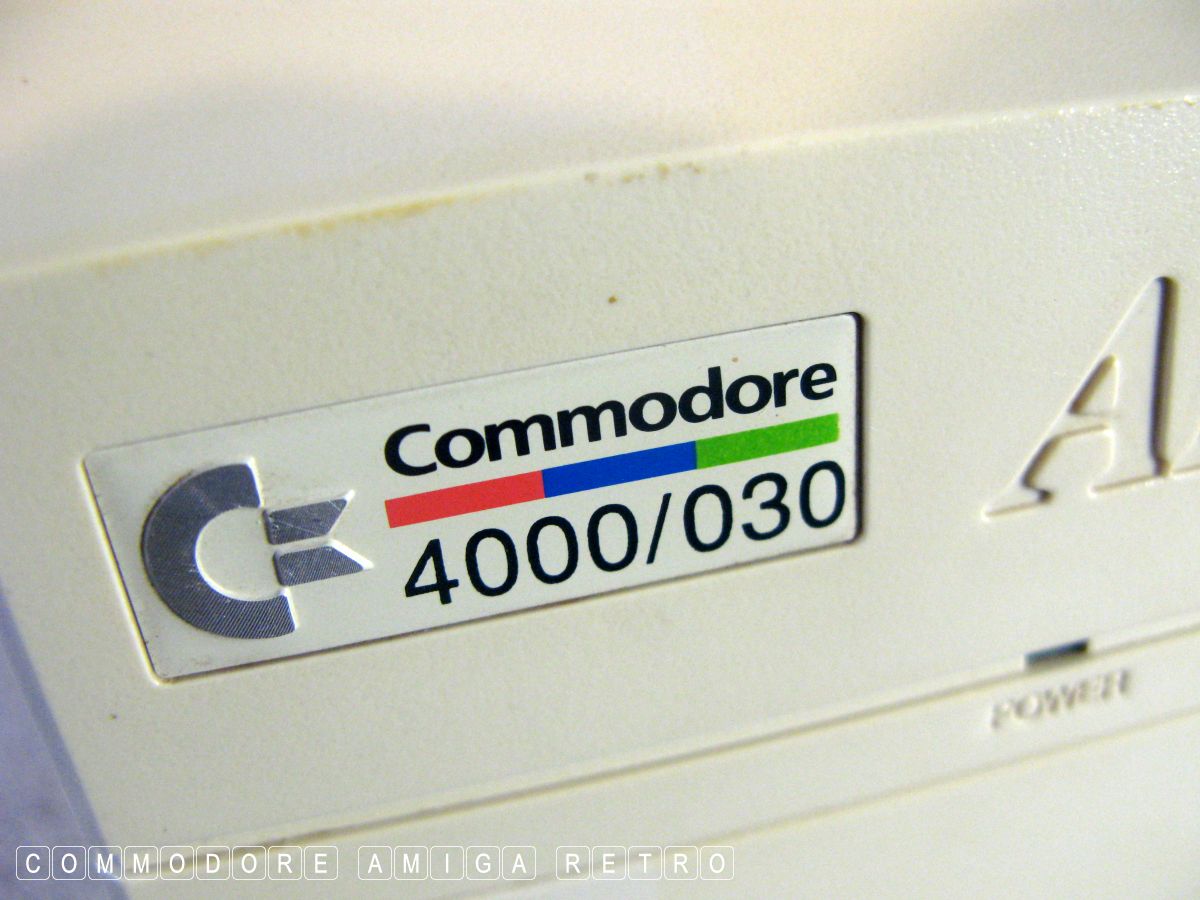

In 2010 I was invited by a friend to collect a whole bag of Amiga
kit. Amongst the items was this busted Amiga 4000/030. The poor

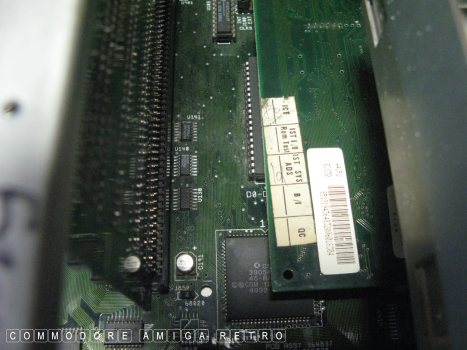

machine was broken and in pieces. The daughter-board was lying on
the motherboard. Nothing was connected. There was no processor on
the board and the power supply was disconnected and loose inside
the case. I connected her up and replaced one or two parts and I
discovered the mouse port to be broken.

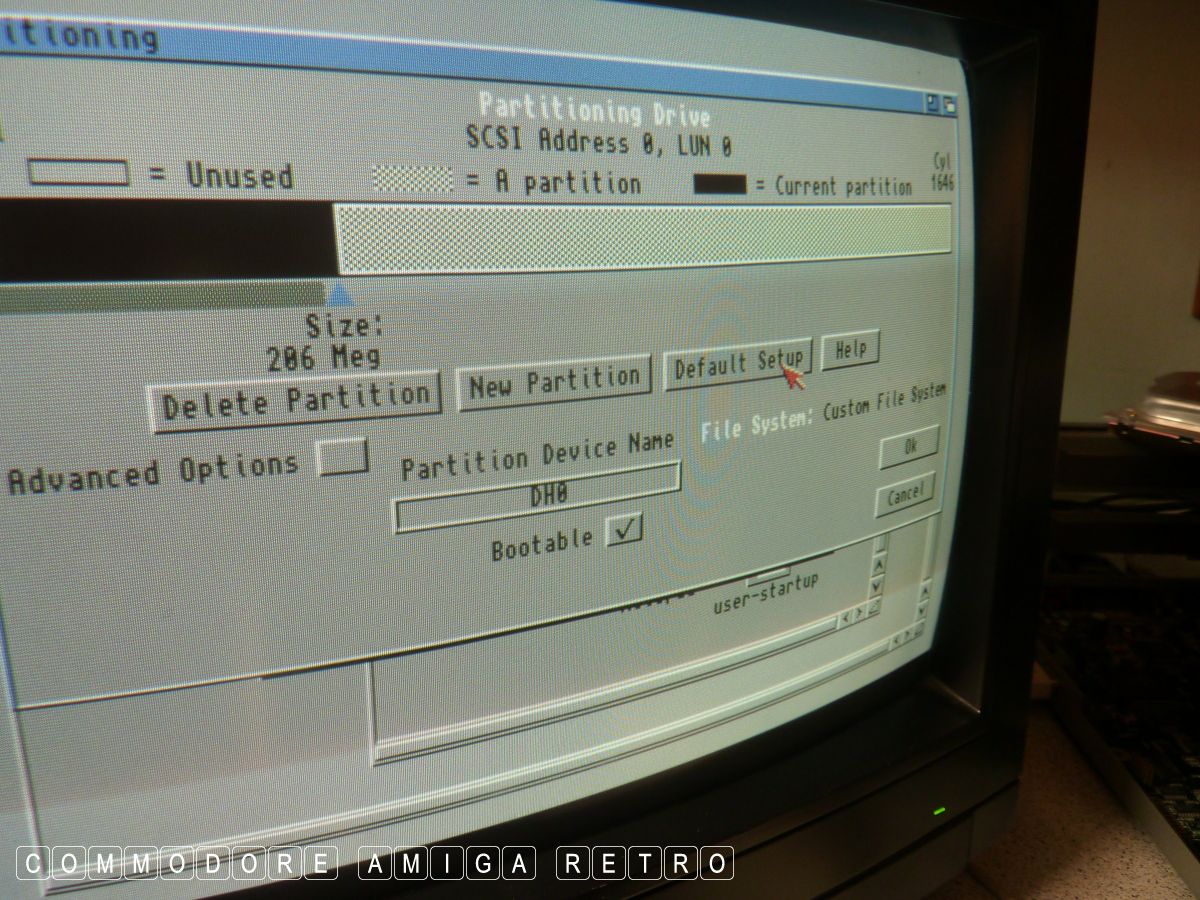

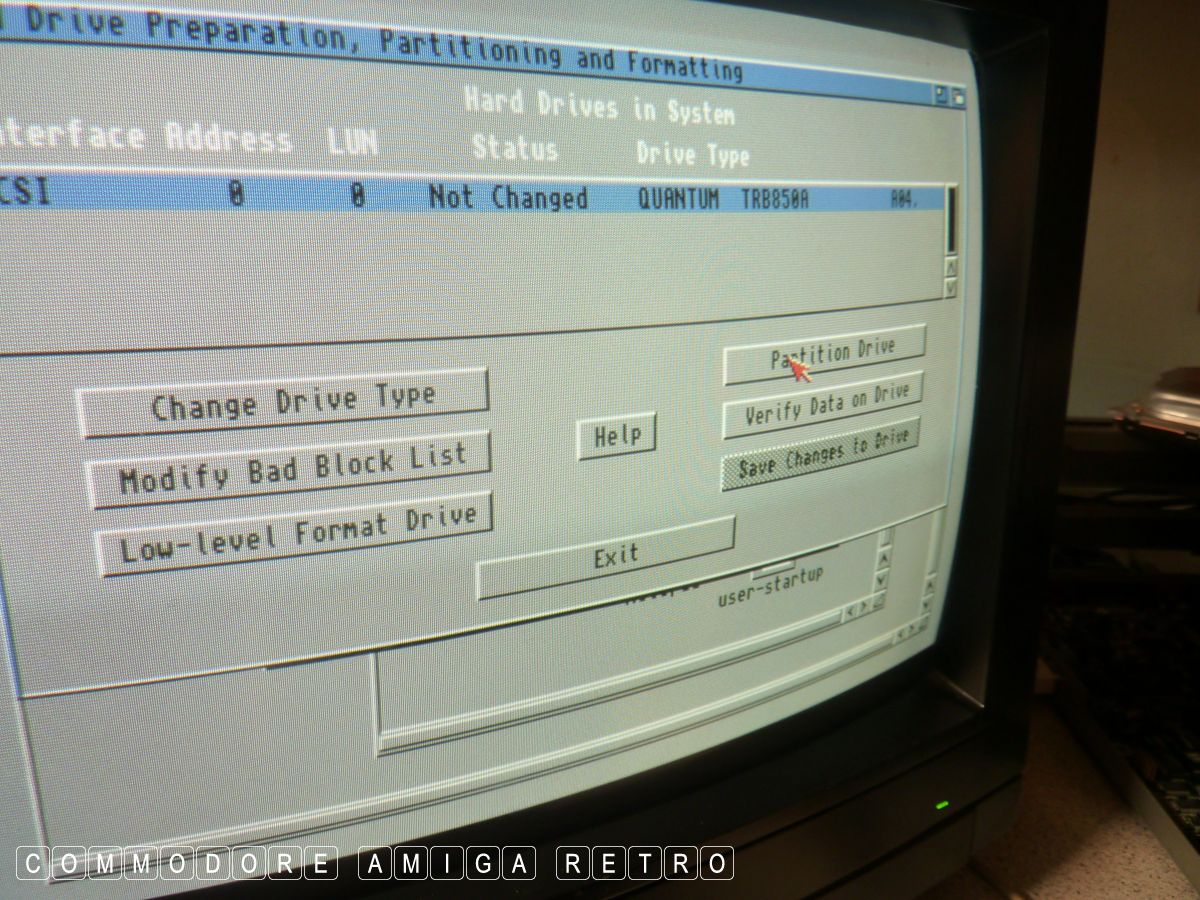

Interestingly at the time I did try a hard drive and that didn't
work either. Additionally the memory was dodgy and not picking up
the extra RAM on the computer. I have tried since and failed. There
appears to be some corrosion still around the battery which was

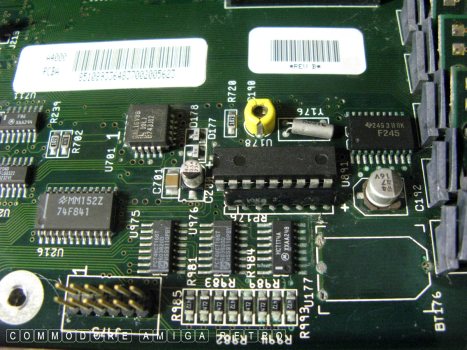

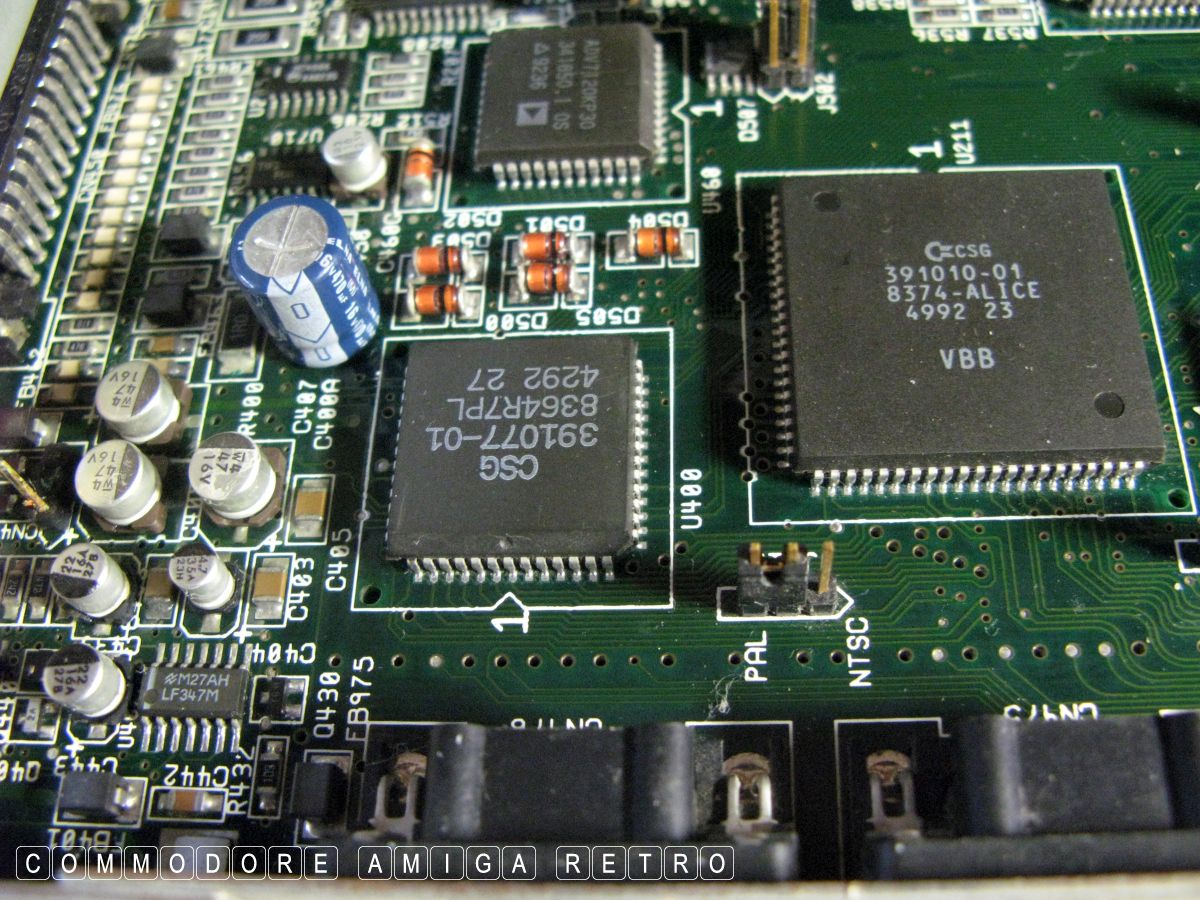

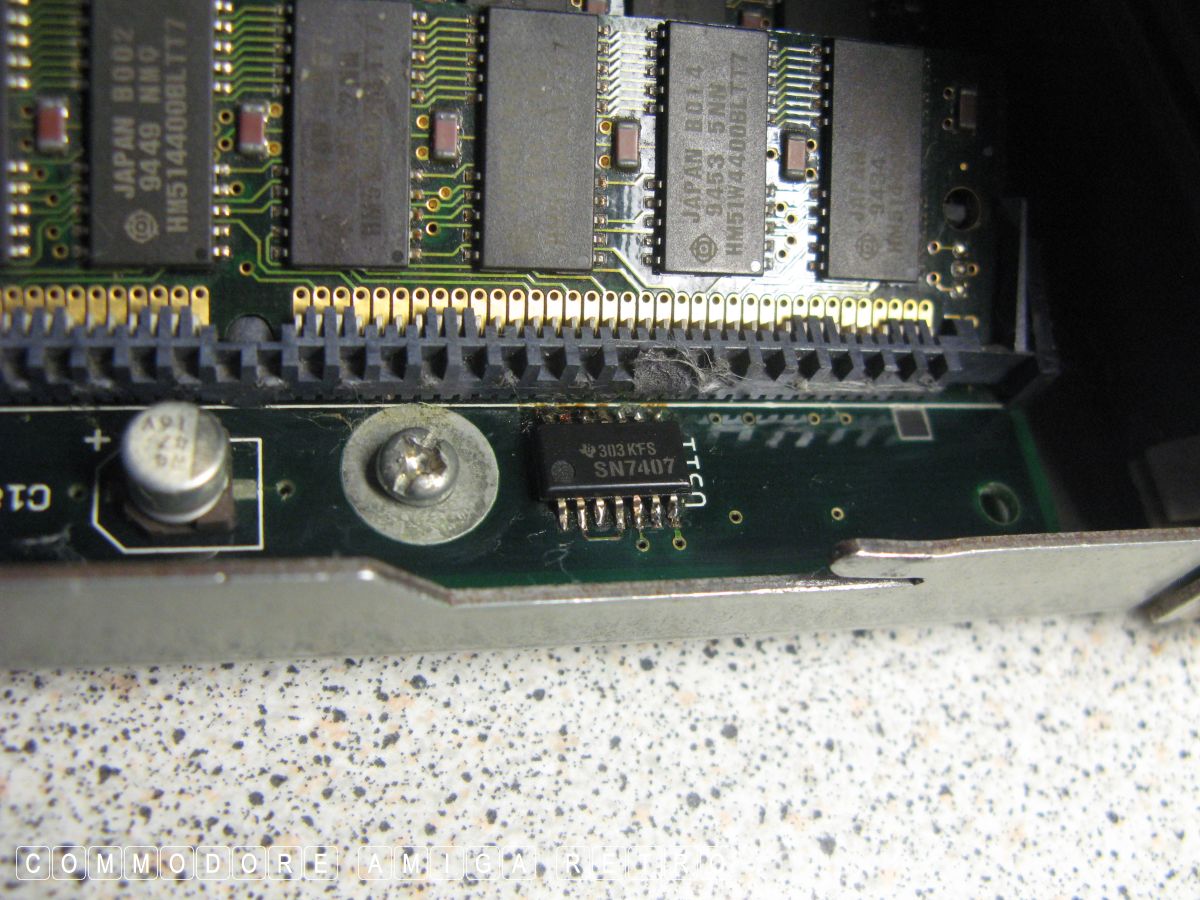

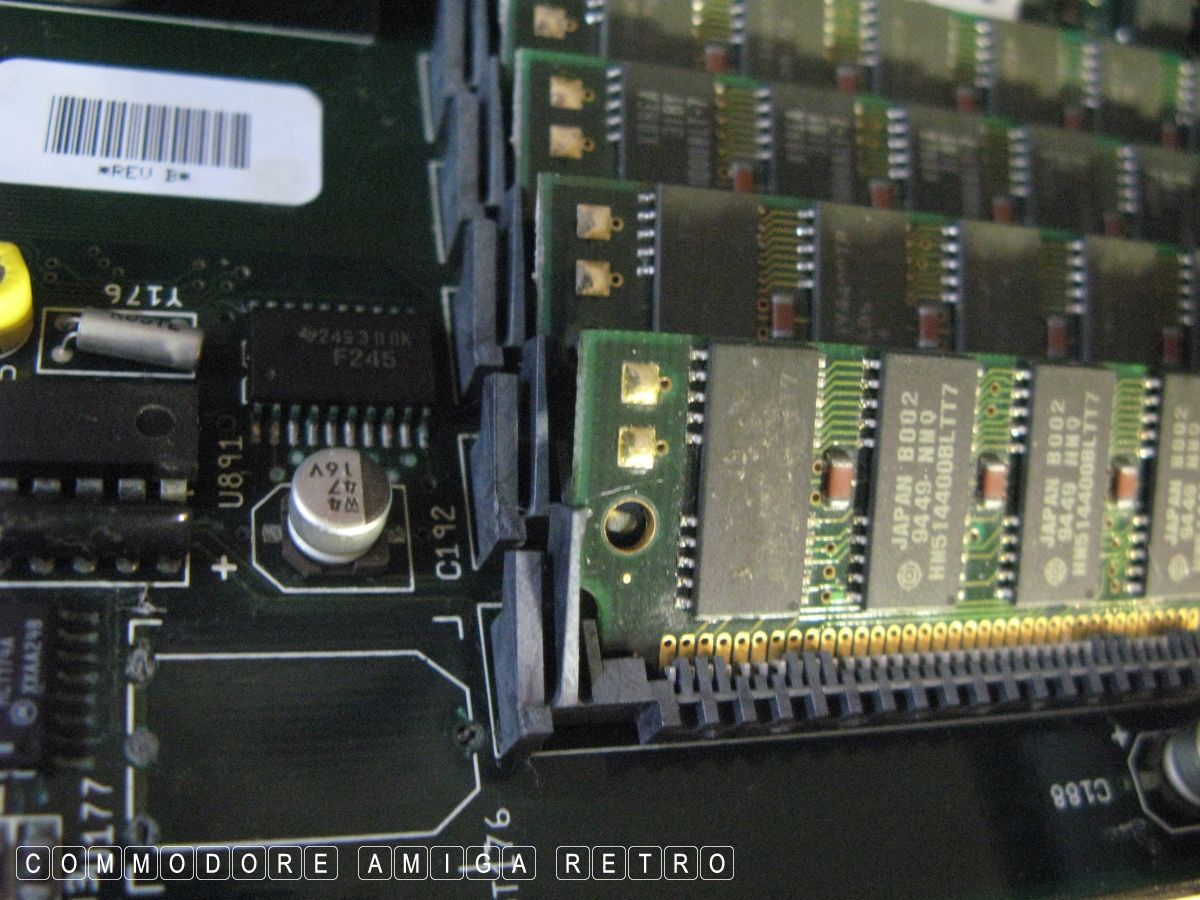

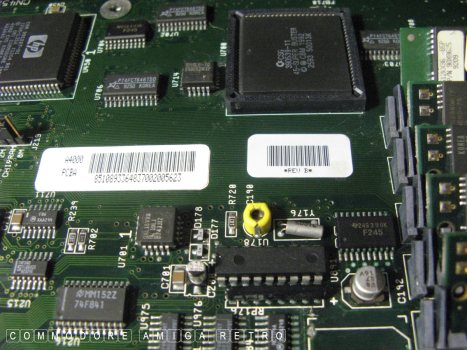

removed. There is a very mangled looking chip to the base of the

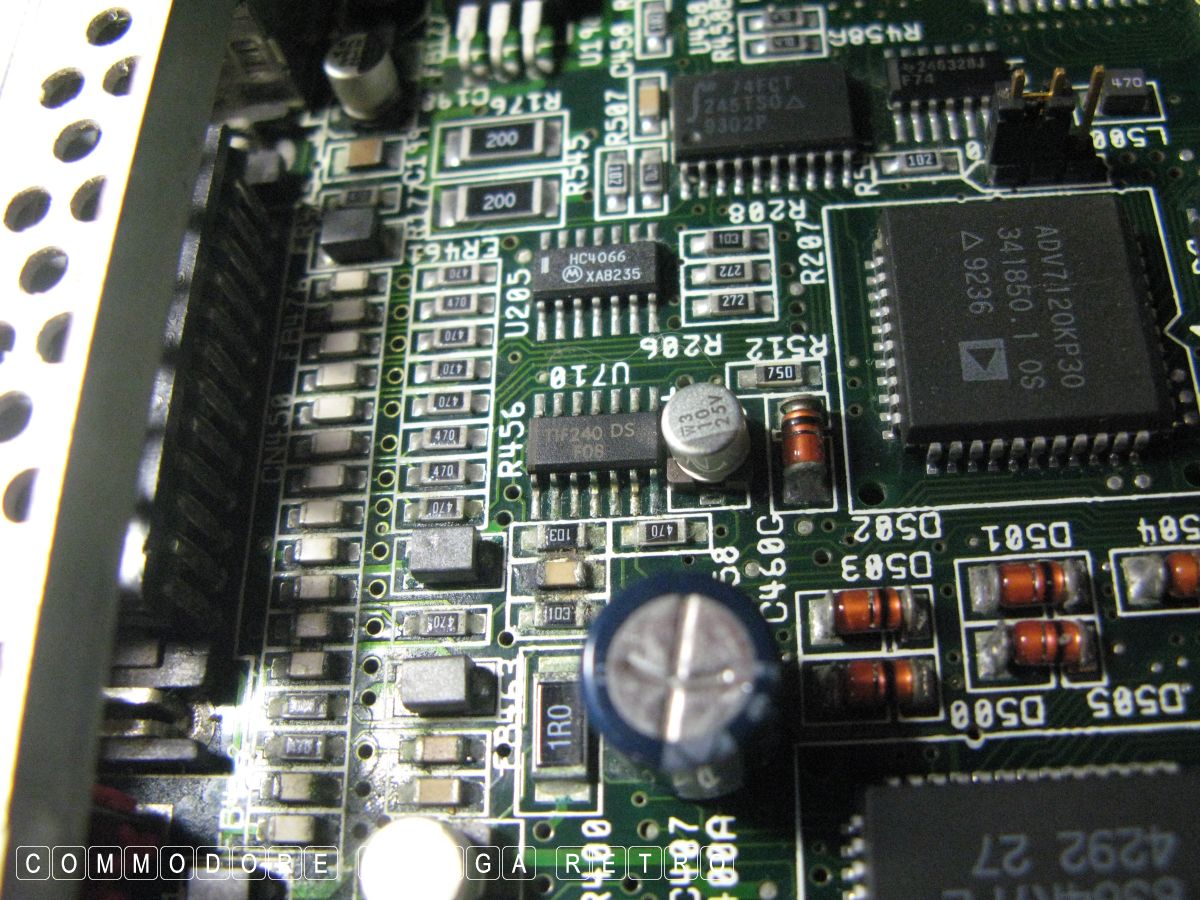

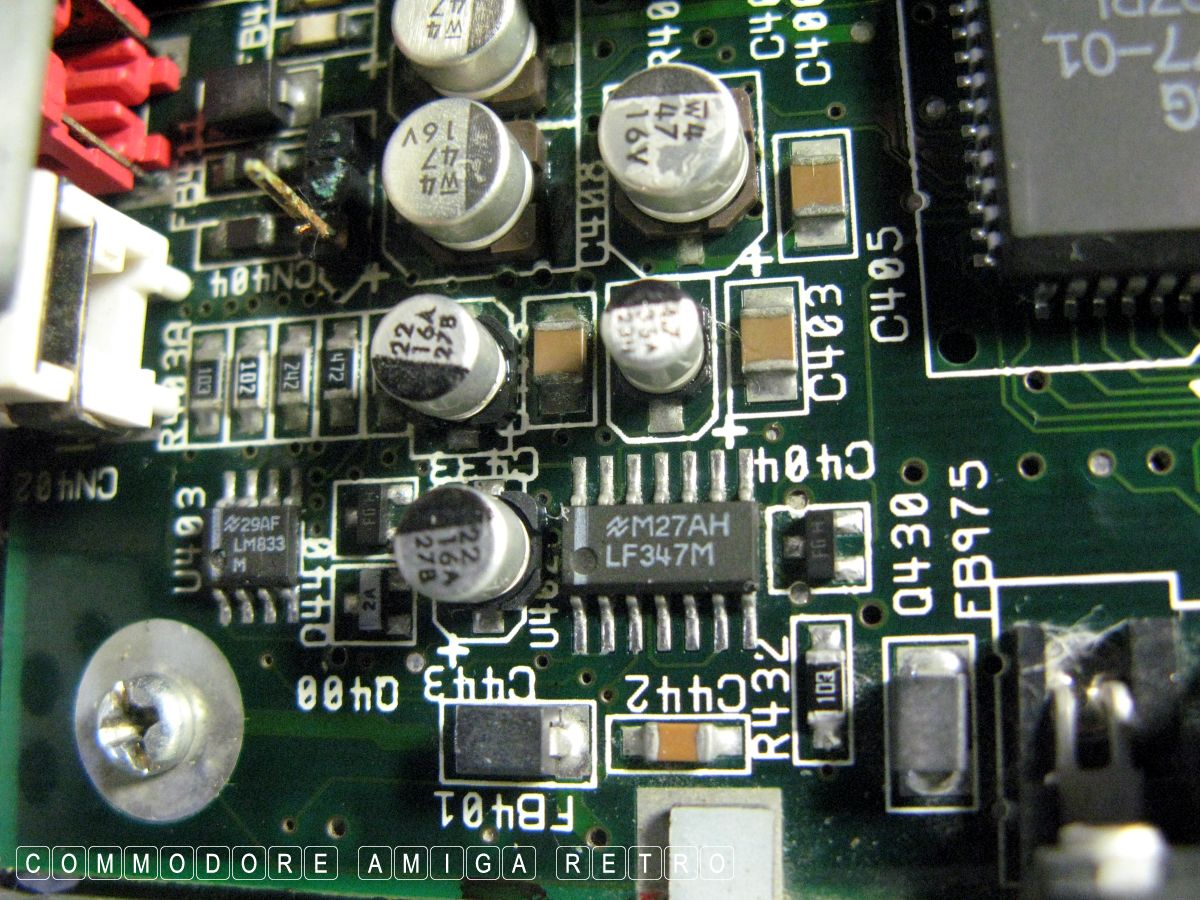

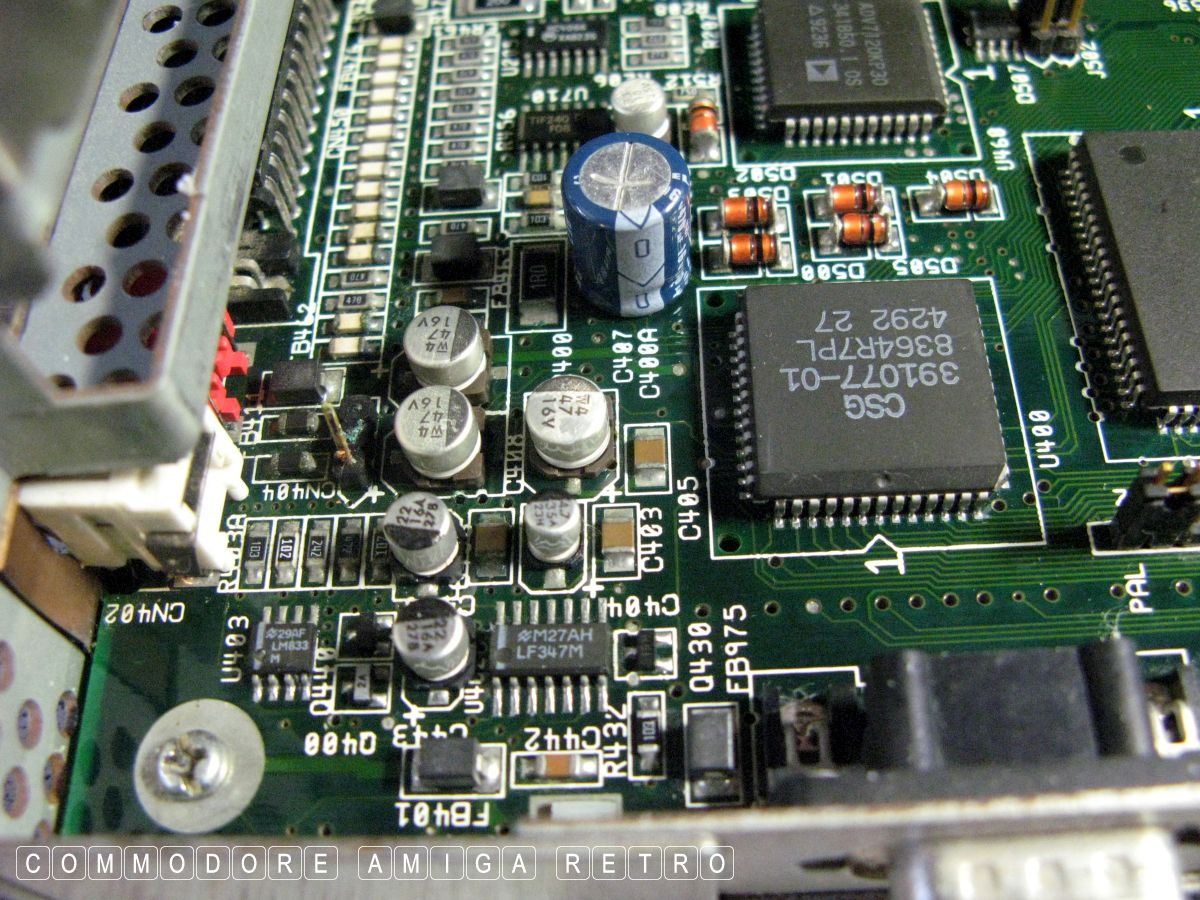

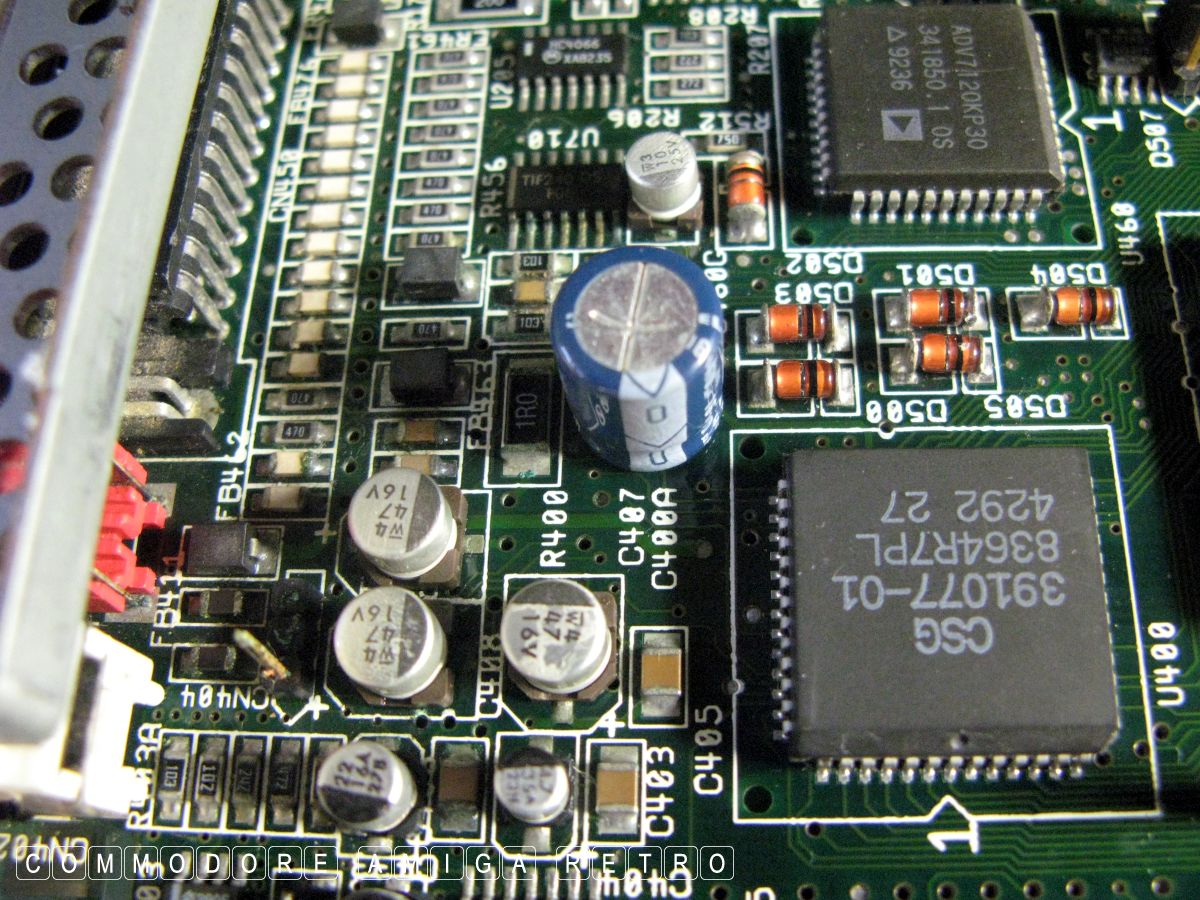

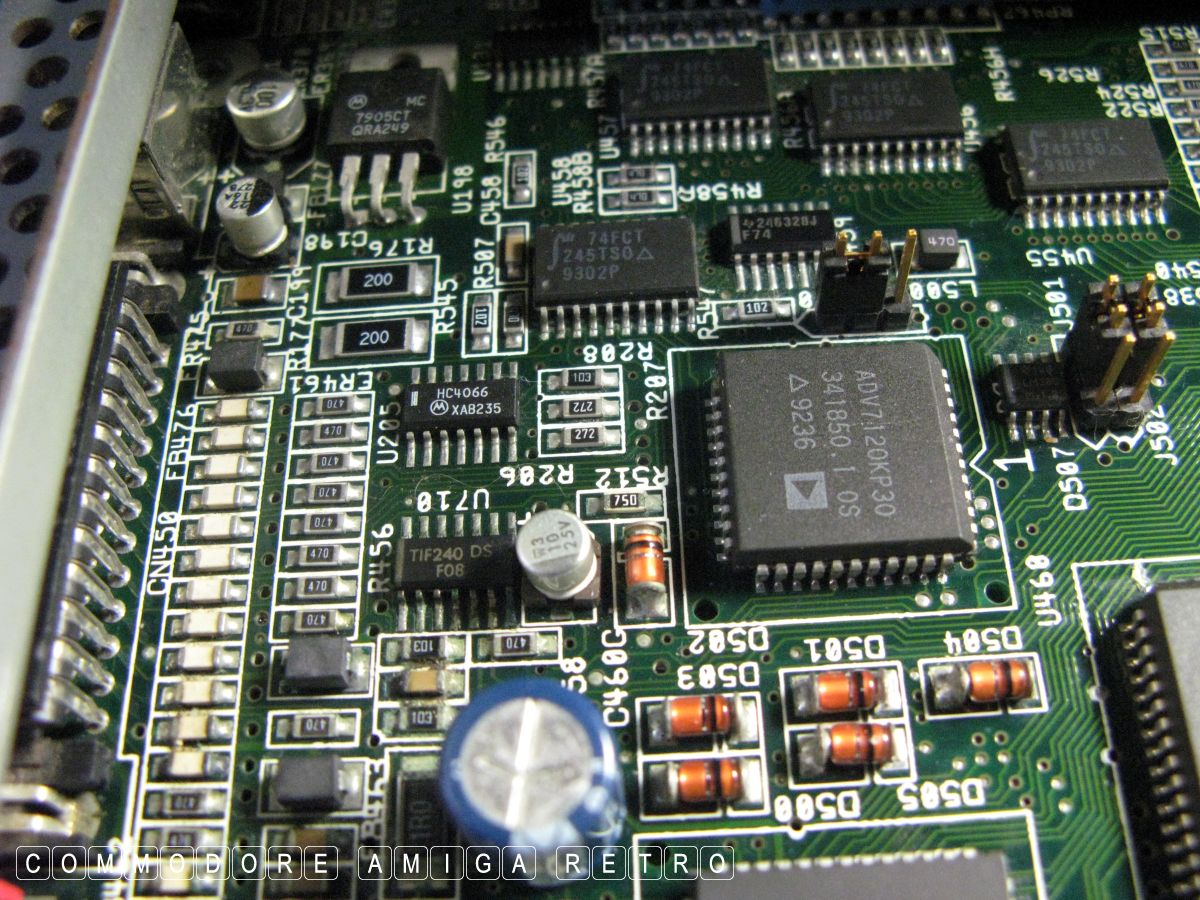

SIMM slots. Also the area around the Video DAC looks suspect.

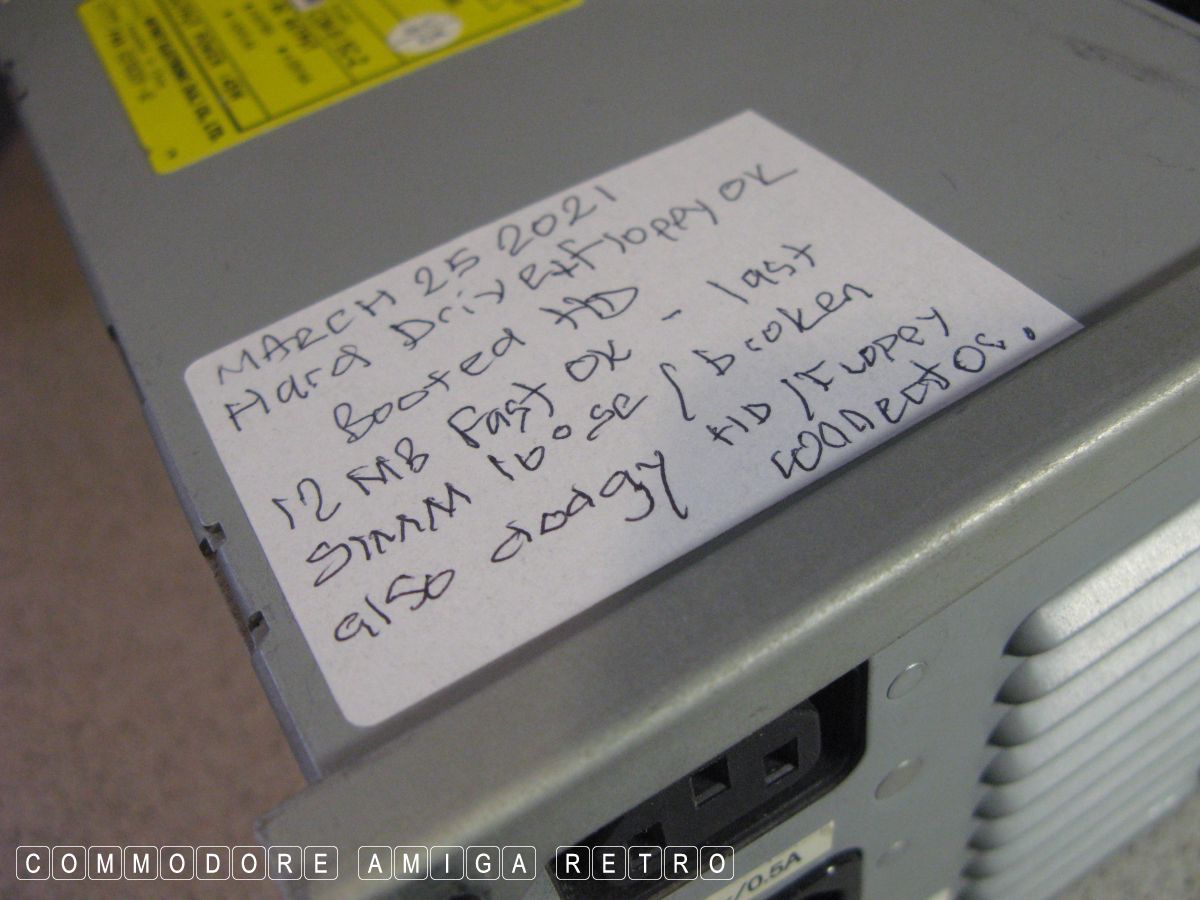

Given that I had checked over a spare A4000 IDE on Graham just the

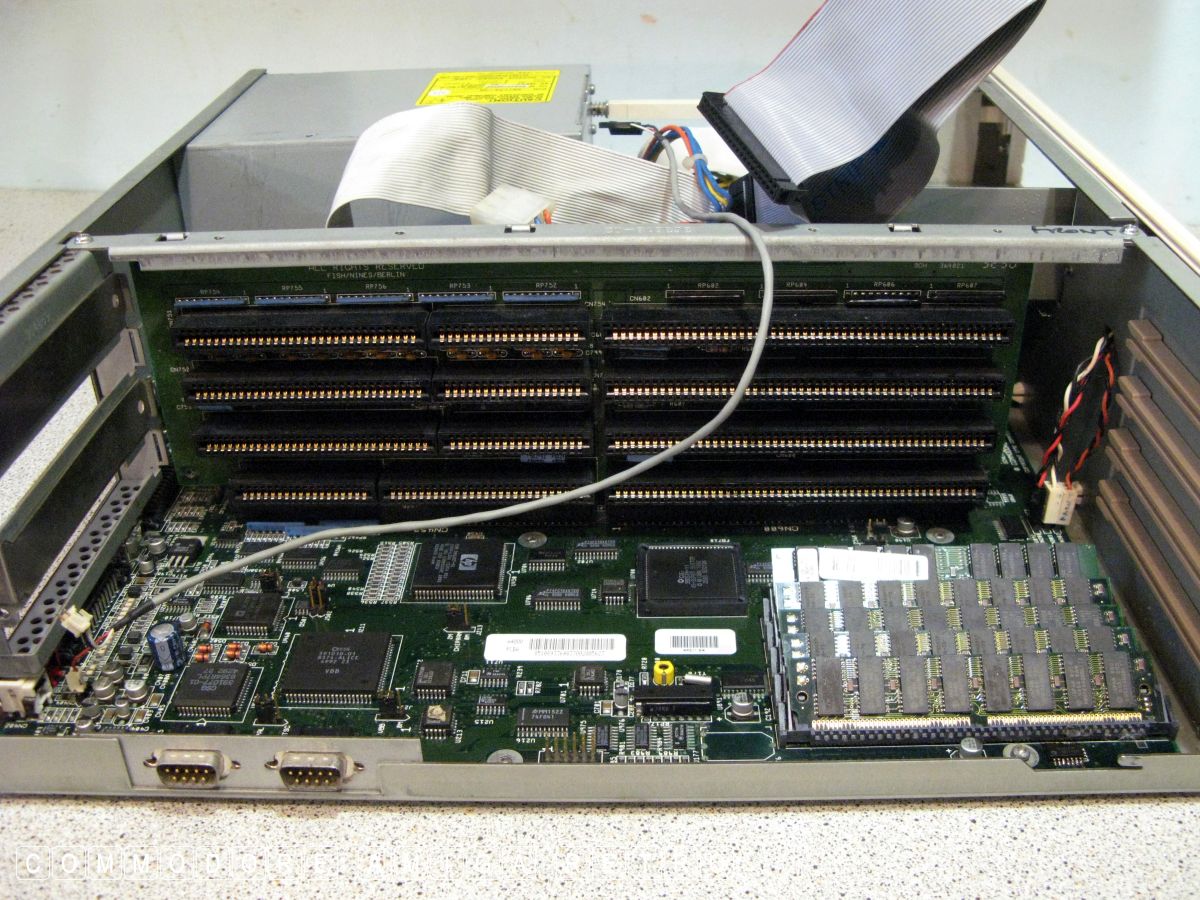

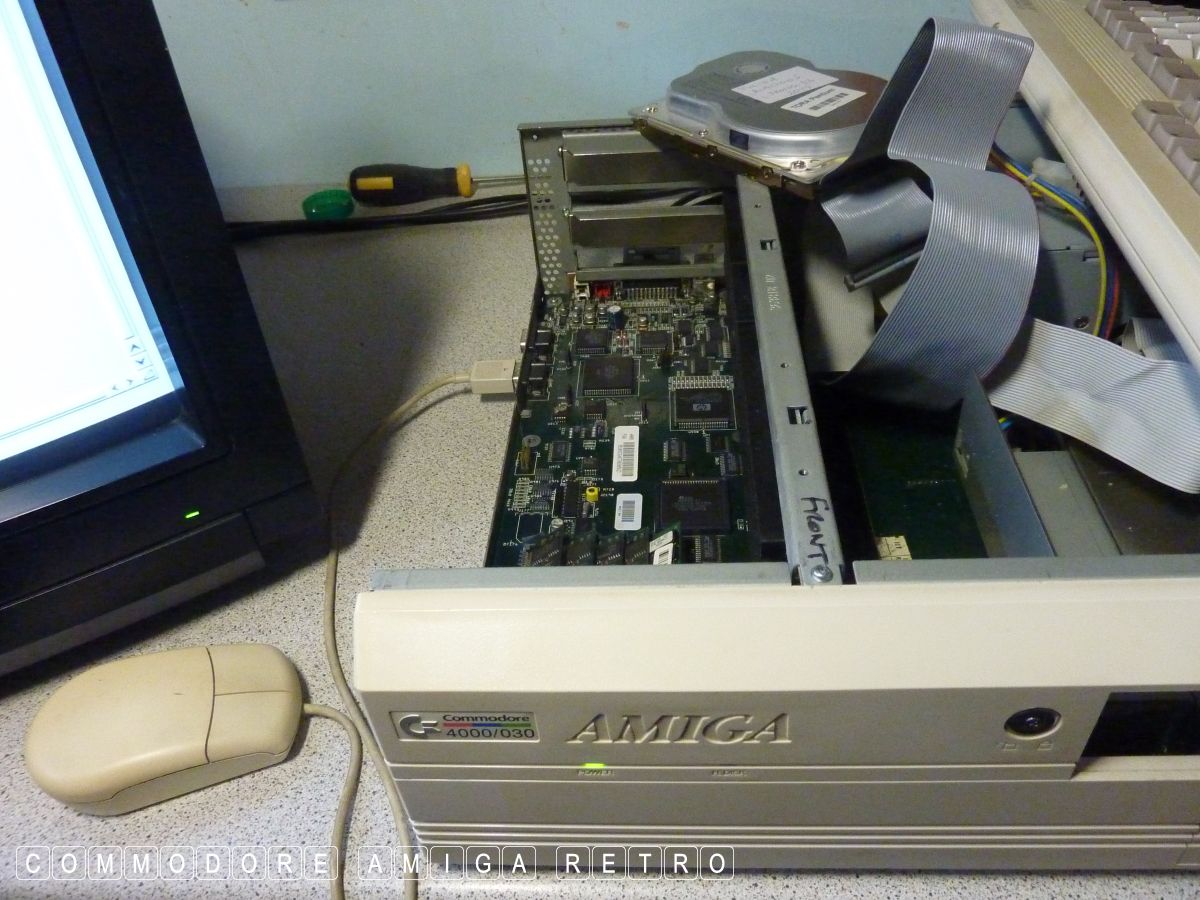

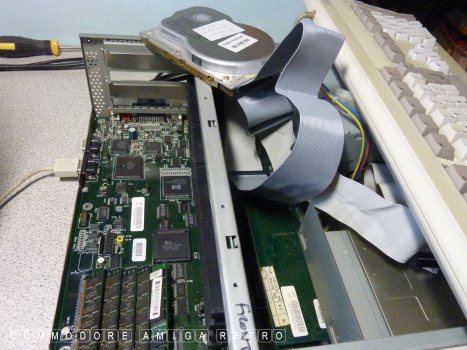

other day I decided to have another go. I reseated the memory and

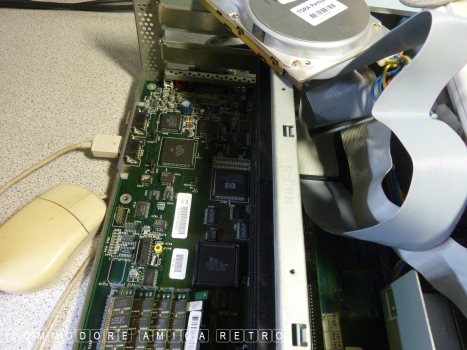

firmly connected the IDE and floppy cables plus the processor. I

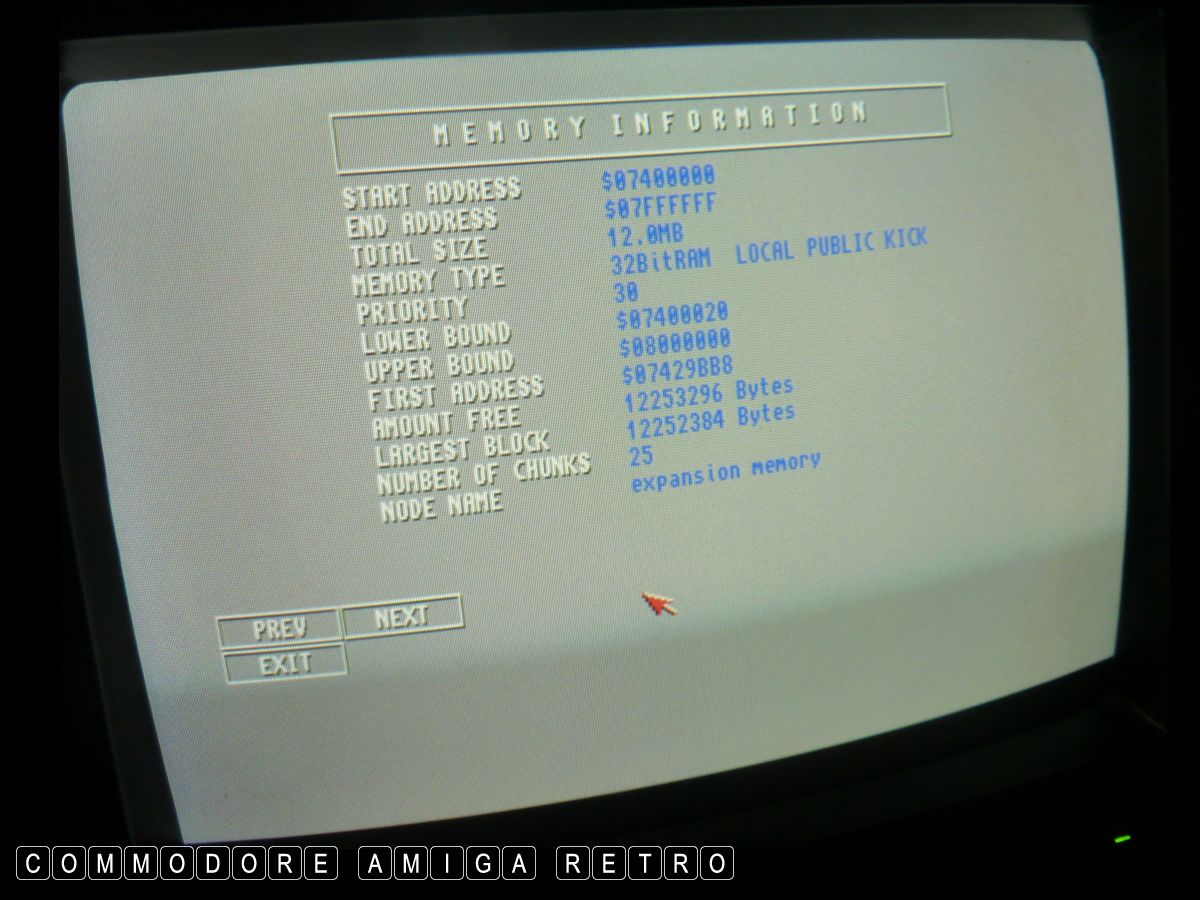

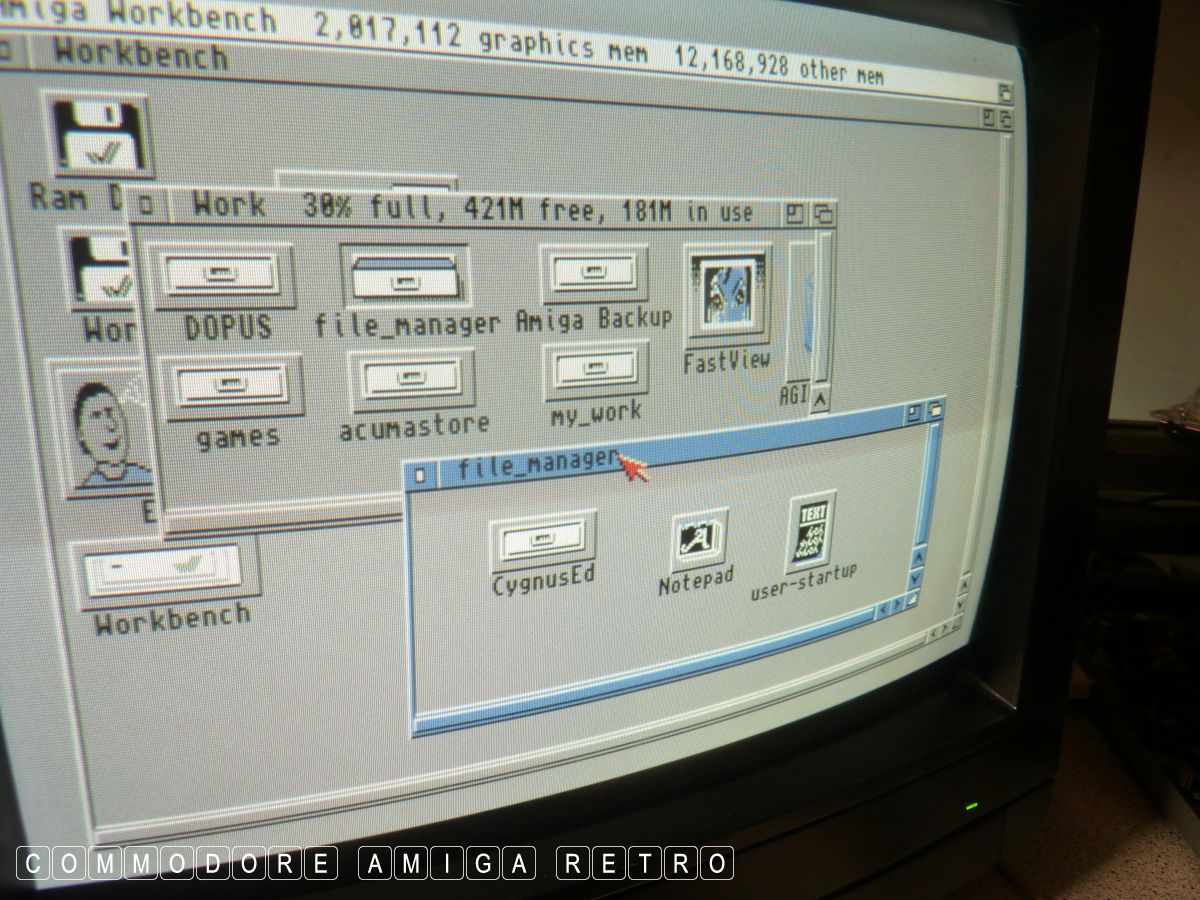

must have done something cus she booted first time. What is more

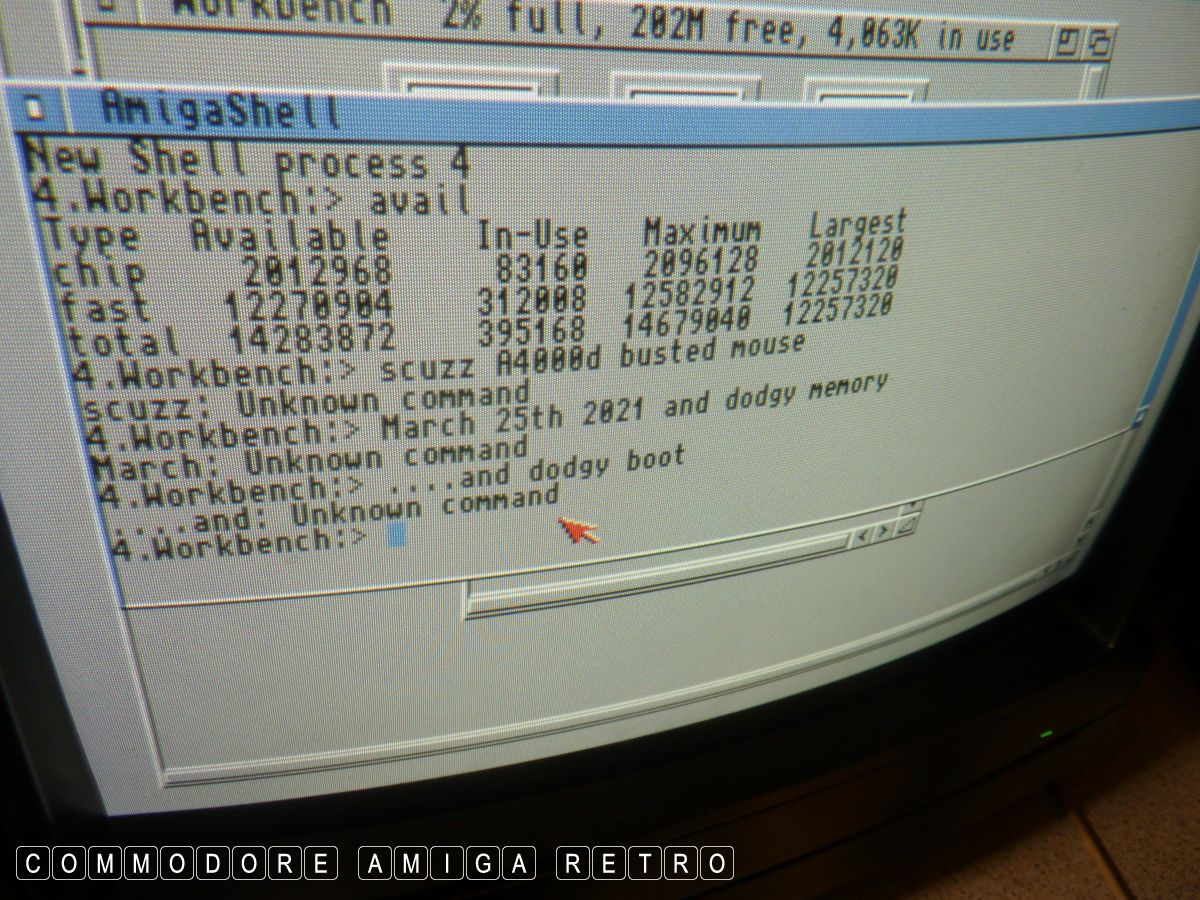

all the memory was visible. Incredible !!!

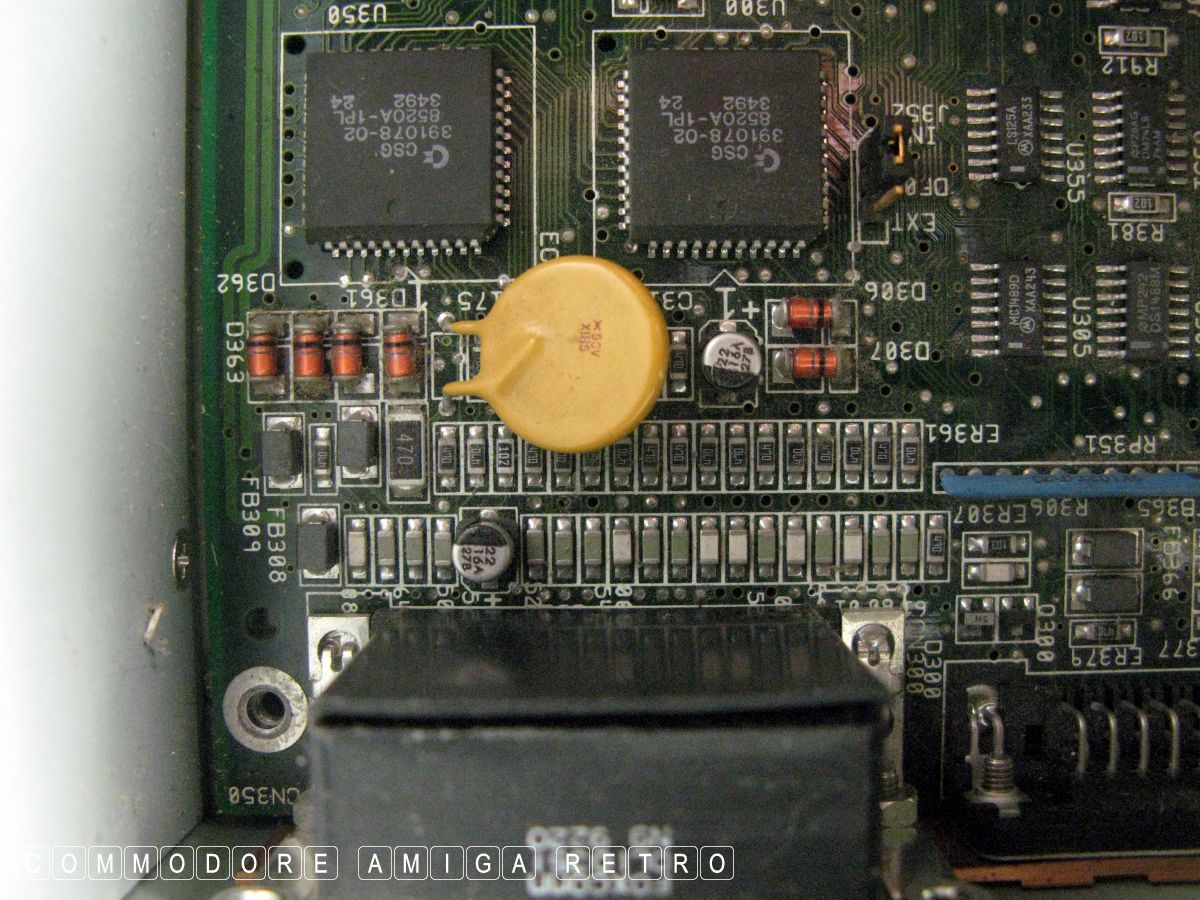

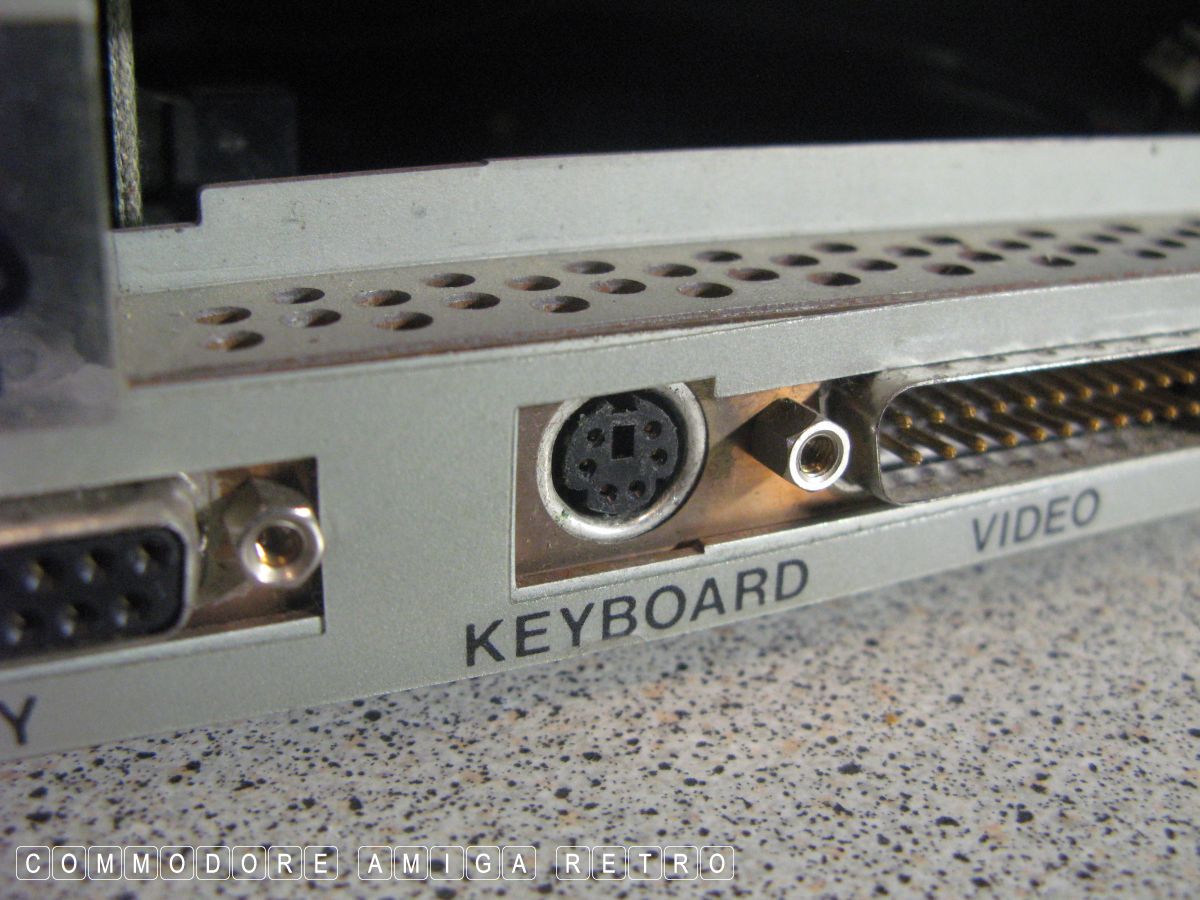

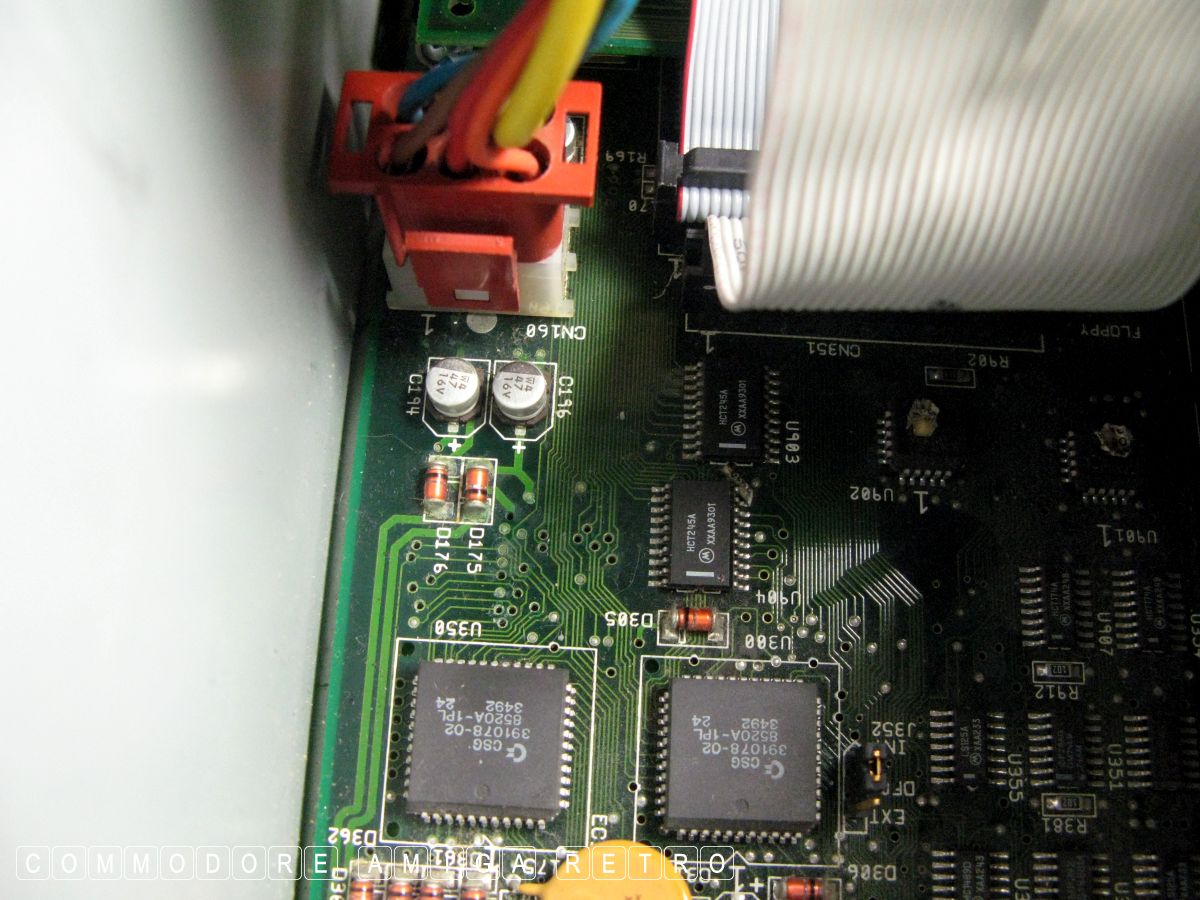

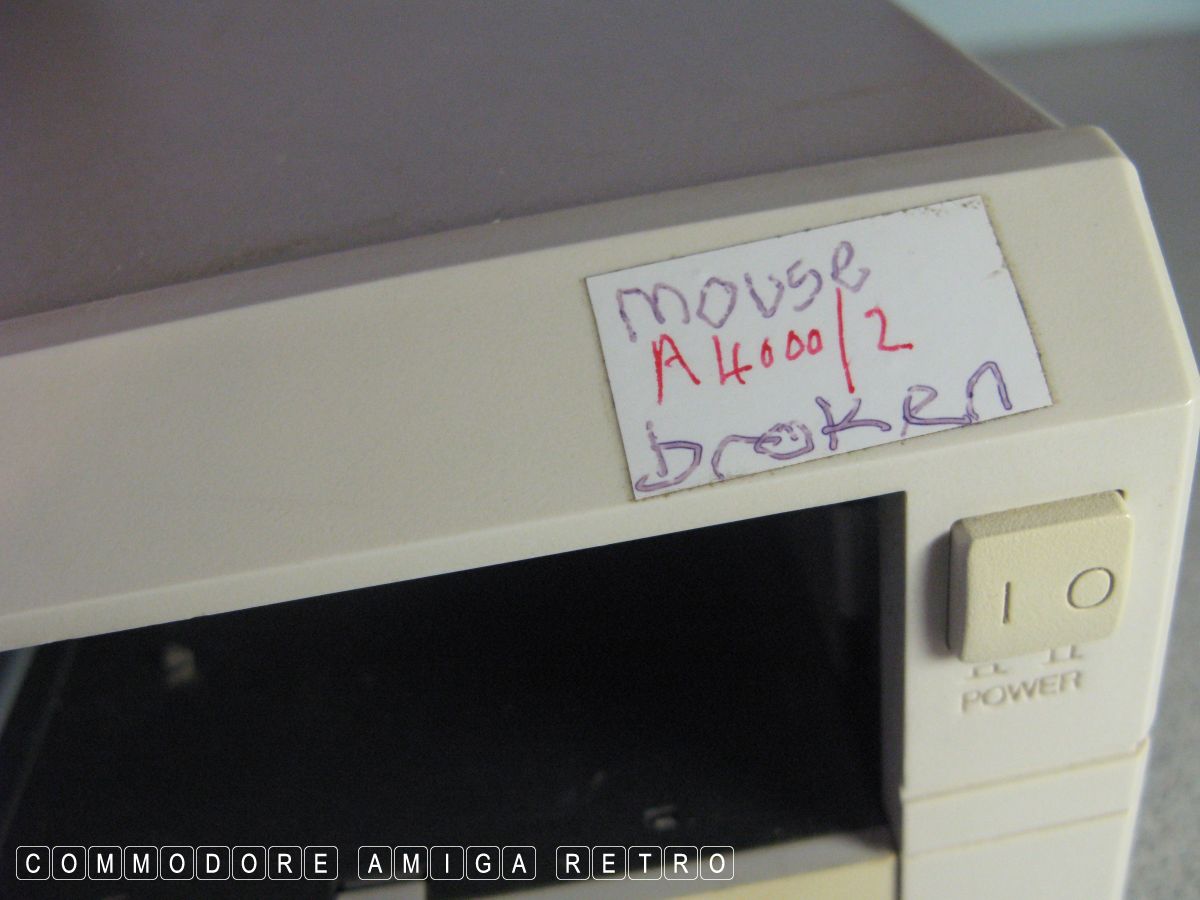

Sadly the mouse was still bust which is probably a faulty chip. I
resorted to using the keyboard commands to move around. I was more

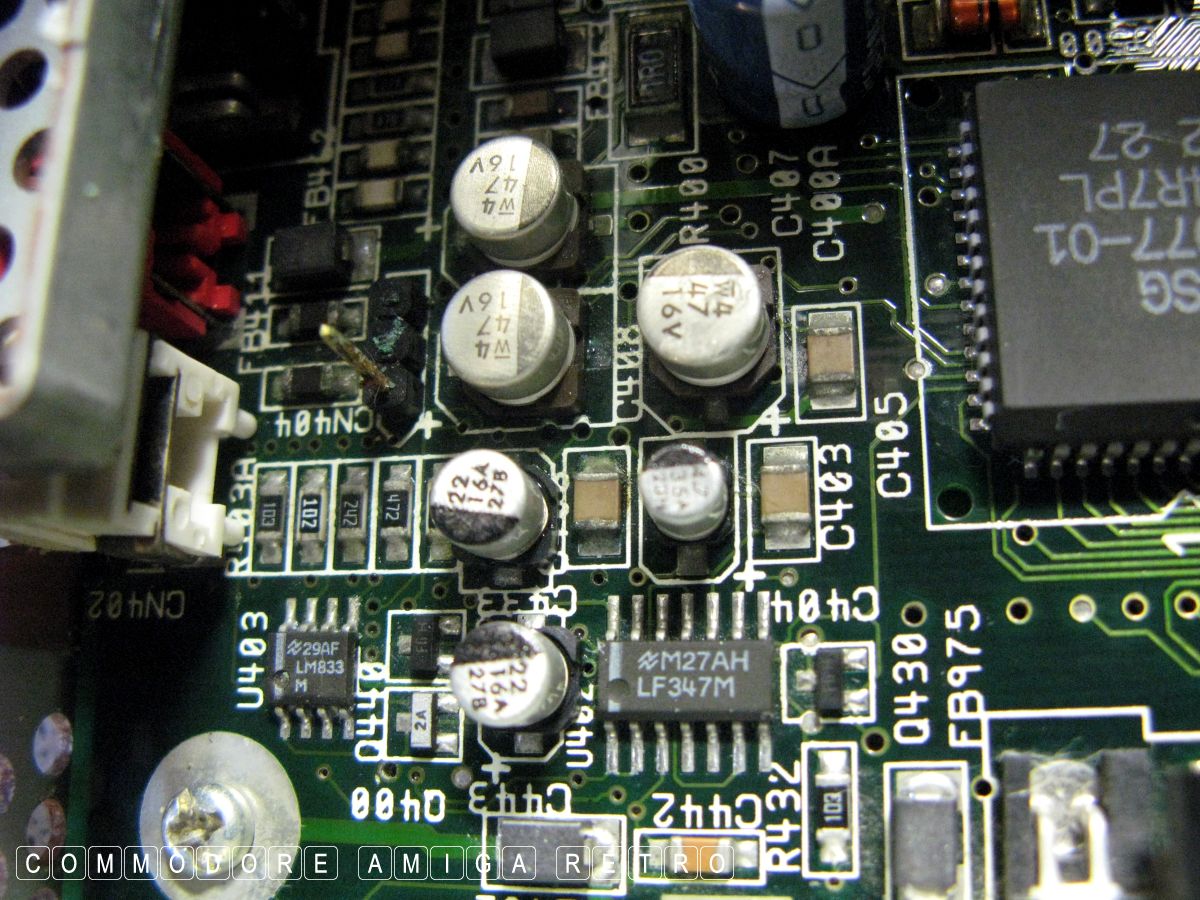

than a little chuffed I have to say. I couldn't see any obvious

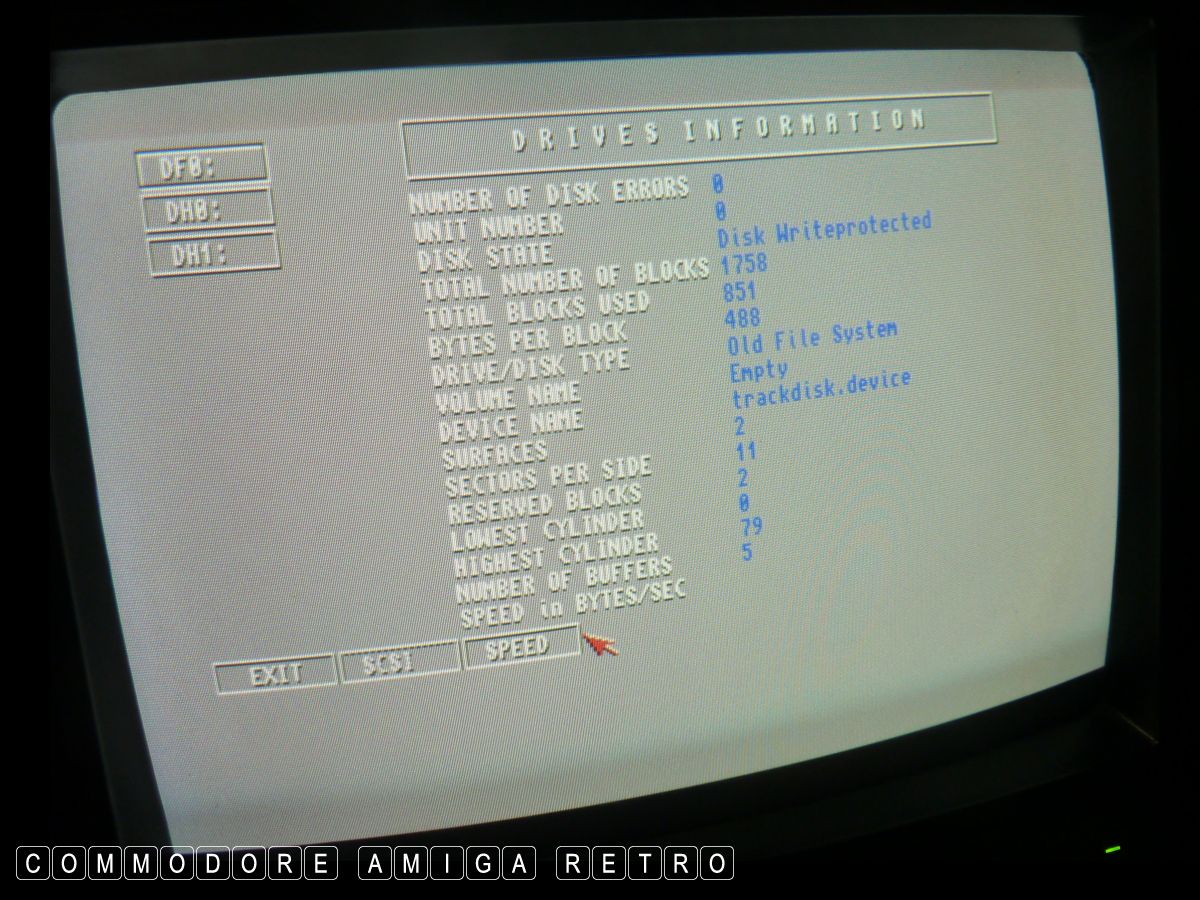

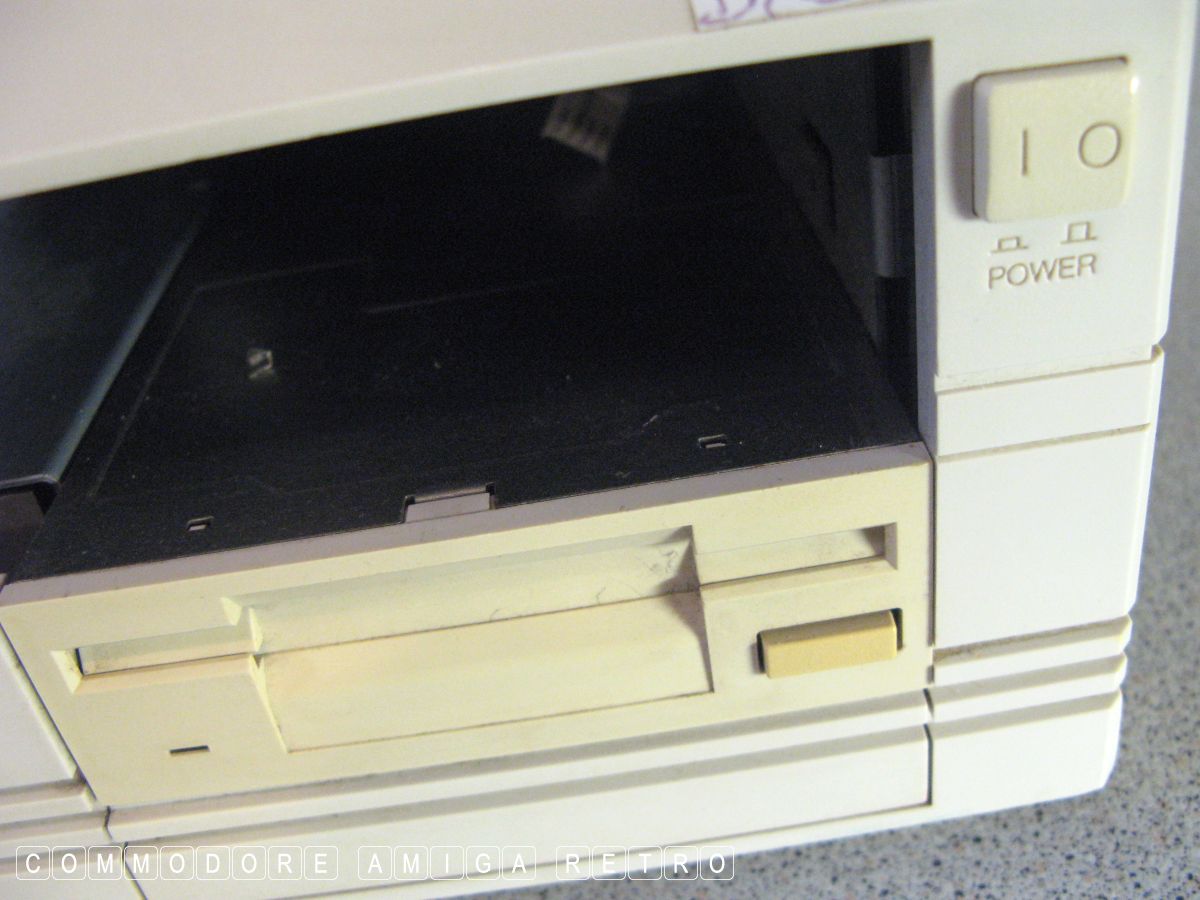

leaks from capacitors. Floppy was also working. She was nearly
good enough to label working.... Who am I kidding. She's fine.
